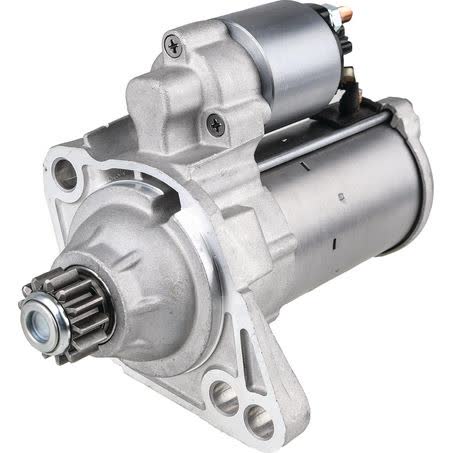

OEX Starter Motor 12V 13 Tooth CCW Bosch Style BXS0190

The OEX Starter Motor BXS0190 is a 12V starter motor with a 13 tooth pinion, CCW rotation, and Bosch style fitment. It is a new unit, rated at 1.4kW, and listed with a 3 hole starter mount type. For buyers comparing replacements, the key identifiers here are the 12V system, 13 teeth, CCW rotation, and the 79mm flange diameter.

This starter motor is supplied as an each unit and weighs 3.26kg. Important dimensions include 112mm mount centres A, 127mm mount centres B, 18mm mount centres C, 220mm overall length, 34mm pinion diameter, and 52mm pinion at rest. Those measurements are the practical checks that matter when matching a replacement starter to the existing unit in the vehicle.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and from ISO certified factories. The listed warranty is 3 years for passenger use and 1 year for commercial use. If you are replacing a Bosch style starter, the part number BXS0190 and the physical dimensions should be checked together before ordering.

Key Features

• 12V starter motor
• 13 tooth pinion
• CCW rotation
• Bosch style unit
• New replacement starter
• 3 hole starter mount

Specifications

• Brand: OEX
• Type: Starter motor
• Part No.: BXS0190
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CCW
• Number of teeth: 13
• Starter mount type: 3 hole

Fitment guidance

• Fitment information supplied includes SKODA Octavia applications from 2014 through 2020.
• Fitment information supplied includes Volkswagen Caddy applications from 2015 through 2021.
• Fitment information supplied includes Volkswagen Golf applications from 2014 through 2016.
• The fitment data is grouped under SKODA and VOLKSWAGEN references only, so the vehicle application should still be checked against the exact part number and starter dimensions before purchase.

Application and Buying Notes

When replacing a starter motor, the most useful checks are the voltage, rotation, tooth count, and mounting pattern. This unit is 12V, CCW, and has 13 teeth with a 3 hole mount, so it should be matched against the removed starter rather than assumed from vehicle badging alone.

The physical dimensions are just as important as the electrical rating. Confirm the 79mm flange diameter, 112mm mount centres A, 127mm mount centres B, 18mm mount centres C, 12.5mm mount hole diameter, 220mm overall length, and 34mm pinion diameter before fitting. Even where the make and model appear familiar, small differences in starter housing or bellhousing layout can prevent a correct swap.

The listed fitment references point to some SKODA Octavia and Volkswagen Caddy and Golf applications, but that does not replace a vehicle check. Use the part number BXS0190, the Bosch style description, and the measurements above to compare against the original unit on the vehicle. If the old starter is available, matching the tooth count, rotation, and mount centres is the safest way to confirm.

For commercial use, the warranty shown is 1 year, while passenger use is listed at 3 years. That warranty detail does not change compatibility, but it is useful when comparing how the part is intended to be used. As with any starter replacement, ensure the battery condition, terminal condition, and engine earth connections are also sound so the new unit is not installed into an existing electrical fault.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0190 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Mount Centres C 18mm, Number of Teeth 13, Pinion at Rest 52mm, Power Rating 1.4kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Weight 3.26kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0190, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Bosch Style, Flange Diameter 79mm, Mount Centres B 127mm, Mount Hole Diameter 12.5, Overall Length 220mm, Pinion Diameter 34mm.

OEX Starter Motor 12V 13Th CCW Bosch Style. Part number BXS0190 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0190, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SKODA OCTAVIA, SKODA OCTAVIA 2014, SKODA OCTAVIA 2015, SKODA OCTAVIA 2016, VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by comparing part number BXS0190, Bosch style application details, 12V CCW rotation, 13 tooth count, and the listed mounting dimensions against the original starter on the vehicle before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is BXS0190.

What voltage and rotation does this starter motor use?

It is a 12V starter motor with CCW rotation.

How many teeth does the pinion have?

The pinion has 13 teeth.

What type of starter mount does it use?

It is listed as a 3 hole starter mount.

Which vehicle applications are shown in the fitment data?

The fitment data includes SKODA Octavia applications from 2014 to 2020, Volkswagen Caddy applications from 2015 to 2021, and Volkswagen Golf applications from 2014 to 2016.

What warranty is listed for this OEX starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
