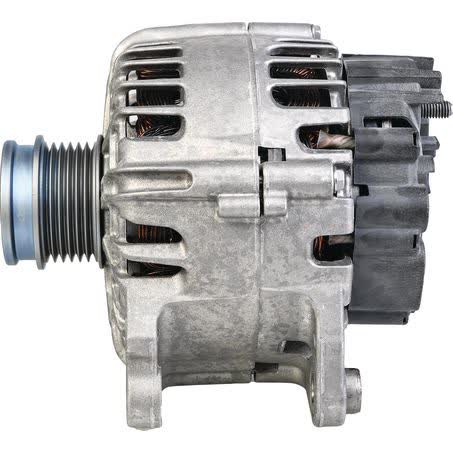

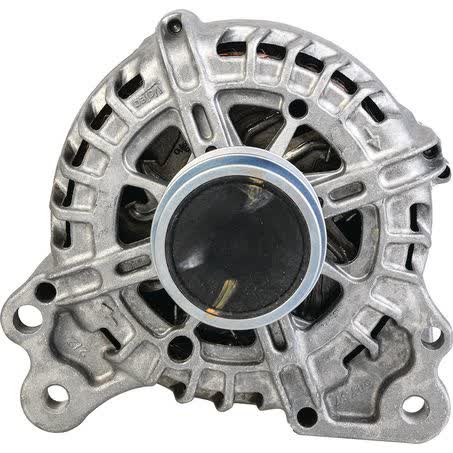

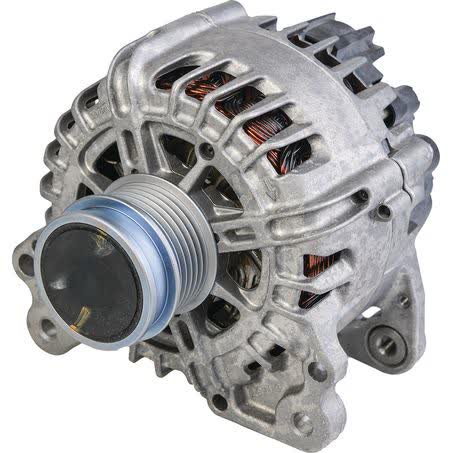

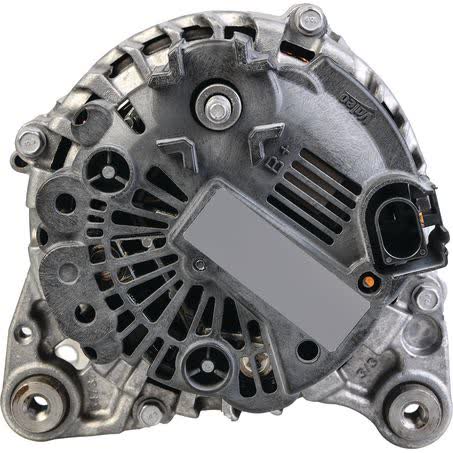

Genuine Alternator 12V 110A Valeo 04E903015GX

This Genuine Products alternator is a 12V, 110A unit built for Valeo applications and identified by part number 04E903015GX. It is supplied as a new alternator, not remanufactured, and uses an internal regulator with CW rotation.

The mounting and pulley details are important for correct replacement. This unit has a quad leg alternator mount, 128mm centre-to-centre mount spacing, 61mm inside mounting legs, an M8x1.25 / 8.5 pivot hole diameter, and a 52.5mm pulley outside diameter with a 6 groove belt section.

For buyers replacing a failed charging unit, the key checks are the part number, the electrical rating, and the physical mounting dimensions. This alternator is rated at 110 amps at 12 volts and weighs 6.24kg, so it is a substantial rotating electrical component that should be matched carefully before ordering.

Key Features

• 12V alternator with 110A output
• New unit supplied each
• Internal regulator type
• CW rotation
• 6 groove pulley section
• Quad leg alternator mount

Specifications

• Voltage: 12V
• Current output: 110A
• Part number: 04E903015GX
• Suits unit make: Valeo
• Regulator type: Internal
• Rotation: CW
• Pulley outside diameter: 52.5mm
• Pulley section: 6 groove

Fitment guidance

• Fitment data provided references Volkswagen Golf applications.
• Volkswagen Golf fitment is listed across model years 2014, 2015, 2016, 2017, 2018, 2019 and 2020.
• The supplied fitment preview also shows Volkswagen as a make reference alongside Volkswagen Golf.
• Always confirm the alternator mount, pulley type, rotation, and part number against the vehicle already fitted before purchase.

Application and Buying Notes

The safest way to order this alternator is by matching part number 04E903015GX first, then checking the mechanical details against the removed unit. The important points here are the 12V charging system, 110A output, internal regulator, CW rotation, 6 groove pulley, and quad leg mount arrangement.

The physical dimensions matter just as much as the electrical rating. Confirm the 128mm mount centre-to-centre measurement, the 61mm inside mounting legs, the M8x1.25 / 8.5 pivot hole diameter, and the 52.5mm pulley outside diameter before fitting. If any of those differ from the original unit, the alternator may not align correctly or may not suit the belt drive.

This unit is listed as new and carries a one year warranty. That said, alternator replacements should still be matched carefully to the vehicle’s charging system and bracket layout. When replacing a Valeo-style alternator, compare the old unit side by side with this one and verify the connector, mount pattern, pulley groove count, and rotation direction to avoid costly returns.

If you are buying for a Volkswagen Golf application, use the provided model-year guidance only as a starting point. Vehicle build changes can affect alternator fitment even within the same model range, so the part number and mounting measurements remain the most reliable checks before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 04E903015GX helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Pivot Hole Diameter M8x1.25 / 8.5, Pulley Outside Diameter 52.5mm, Regulator Type Internal, Suits Unit Make Valeo, Alternator Mount Quad Leg, Mount Cnt to Cnt 128mm, Weight 6.24kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. 04E903015GX, Brand GENUINE PRODUCTS, Description Genuine Alternator 12V 110A Valeo, Inside Mounting Legs 61mm, Power Rating (Amp) 110, Pulley Section 6 Groove, Rotation CW, Voltage 12, Item Type Alternator.

Genuine Alternator 12V 110A Valeo. Part number 04E903015GX should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 04E903015GX, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 2014, VOLKSWAGEN GOLF 2015, VOLKSWAGEN GOLF 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number 04E903015GX and the listed application details, including 12V, 110A, Valeo unit make, CW rotation, 6 groove pulley, quad leg mount, and the stated mounting dimensions before ordering.

FAQ

What is the part number for this alternator?

The part number listed is 04E903015GX.

What are the electrical specifications?

It is a 12V alternator with a 110A power rating.

Is this alternator new or remanufactured?

It is listed as new.

What regulator type does it use?

It uses an internal regulator.

What pulley and mounting details are listed?

The alternator has a 6 groove pulley section, a 52.5mm pulley outside diameter, a quad leg mount, 128mm mount centre-to-centre spacing, 61mm inside mounting legs, and an M8x1.25 / 8.5 pivot hole diameter.

What fitment information is provided?

The provided fitment data references Volkswagen Golf applications, with model years shown from 2014 through 2020. Confirm all details against the original unit before ordering.
