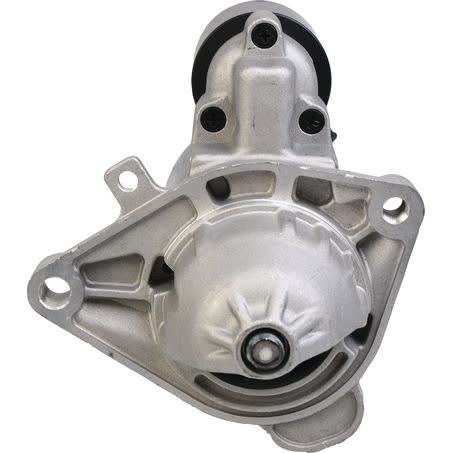

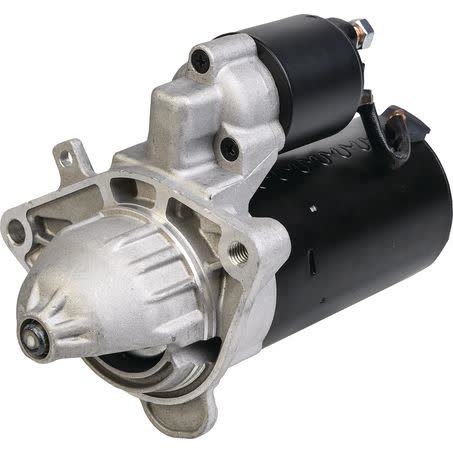

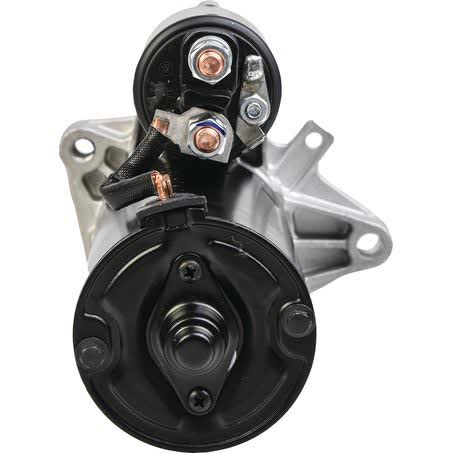

OEX Starter Motor 12V 10 Tooth CW Bosch Style BXS0191

The OEX BXS0191 is a new 12V starter motor with clockwise rotation, 10 teeth on the pinion, and a Bosch-style fitment profile. It is listed with a 1.7kW power rating, a 76mm flange diameter, and a 2-hole starter mount, so it is important to match the physical details as well as the part number before ordering.

This unit is supplied as each and carries a 3-year passenger / 1-year commercial warranty. Key mounting and dimensional details include an M10x1.5/11 mount hole diameter, 122mm mount centre-to-centre, 238mm overall length, and 3.8kg weight. Those measurements matter when checking replacement compatibility on the vehicle.

OEX notes that this starter motor is not suitable for start-stop applications. If the vehicle uses start-stop operation, the listed replacement is BXS0189 instead. The unit is specified for Bosch applications, so confirming the original starter style and mounting pattern is the safest way to avoid a mismatch.

Key Features

• New starter motor
• 12V, clockwise rotation
• 10-tooth pinion
• Bosch style application
• 2-hole starter mount
• Not suitable for start-stop applications

Specifications

• Part No.: BXS0191
• Brand: OEX
• Voltage: 12V
• Power Rating: 1.7kW
• Rotation: CW
• Number of Teeth: 10
• Flange Diameter: 76mm
• Overall Length: 238mm

Fitment guidance

• No verified vehicle fitment has been supplied with this listing.
• Confirmed application details are limited to Bosch-style starter use and the note that start-stop vehicles require BXS0189.
• Fitment should be checked against the original part number, mounting pattern, tooth count, rotation, voltage, and key dimensions before purchase.

Application and Buying Notes

When replacing a starter motor, the safest match is the original part number and the physical layout. For this OEX unit, the main checks are 12V operation, clockwise rotation, 10 teeth, a 76mm flange diameter, and a 2-hole mount with 122mm centre-to-centre spacing. If any of those details differ from the original unit, it may not be the correct replacement.

The note against start-stop applications is important. OEX states this starter motor is not suitable for start-stop systems, and the listed alternative is BXS0189. If the vehicle is fitted with start-stop operation, confirm that requirement before ordering rather than relying on general Bosch-style similarity.

Because starter motors can look similar while using different housings or mounts, the measurement points matter. Check the M10x1.5/11 mount hole diameter, 238mm overall length, 32mm pinion diameter, and 21mm pinion at rest against the removed unit. Those values are useful when comparing the replacement on the bench or in the workshop.

The listed warranty is 3 years for passenger use and 1 year for commercial use. That gives a clear coverage reference, but it does not replace fitment checking. Match the vehicle application carefully, confirm the Bosch-style specification, and make sure the starter gearing and mounting arrangement are consistent with the original part before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0191 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5/11, Overall Length 238mm, Pinion Diameter 32mm, Rotation CW, Voltage 12, Item Type Starter Motor, New / Reman. New.

Additional published details for cross-checking include Weight 3.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0191, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style - See Note, Flange Diameter 76mm, Number of Teeth 10, Pinion at Rest 21mm, Power Rating 1.7kW, Suits Unit Make Bosch.

OEX Starter Motor 12V 10Th CW Bosch Style - See Note. Part number BXS0191 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0191, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012, JEEP GRAND CHEROKEE 2013, RAM 1500, RAM 1500 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility by checking the original part number, Bosch-style application, 12V clockwise configuration, 10-tooth pinion, and the listed mount and dimensional details. Start-stop vehicles require BXS0189 instead.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.

What voltage is the OEX BXS0191 starter motor?

It is a 12V starter motor. For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.

Does this starter motor rotate clockwise or counter-clockwise?

It is specified as clockwise rotation (CW). For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.

Is this starter motor suitable for start-stop applications?

No. OEX states it is not suitable for start-stop applications, and BXS0189 is the listed option for those vehicles. For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.

What should I check before ordering this starter motor?

Check the original part number, Bosch-style application, 12V rating, CW rotation, 10-tooth pinion, 2-hole mount, 122mm mount centre-to-centre, and the listed dimensions to confirm it matches the vehicle. For this listing, part number BXS0191 is the main reference point. Listed voltage is 12. Published fitment references include JEEP GRAND CHEROKEE, JEEP GRAND CHEROKEE 2011, JEEP GRAND CHEROKEE 2012. These details should still be checked against the original unit before ordering.
