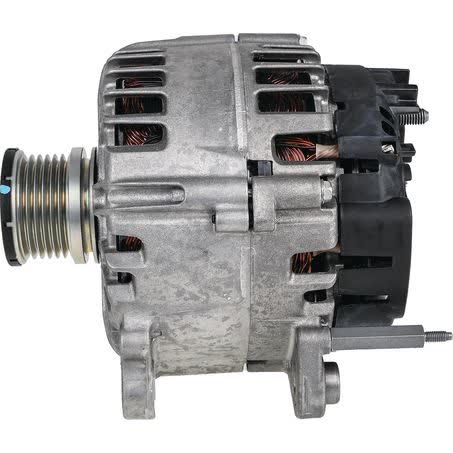

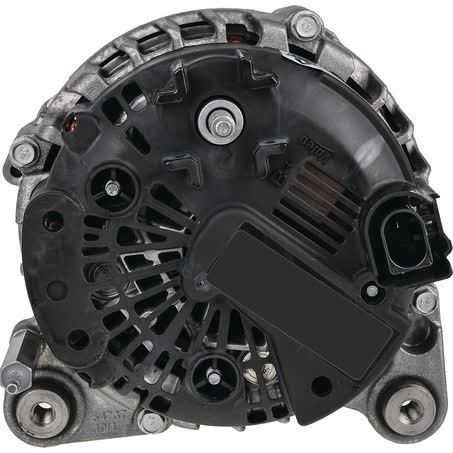

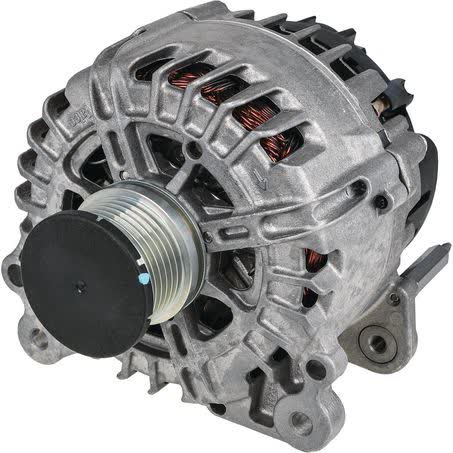

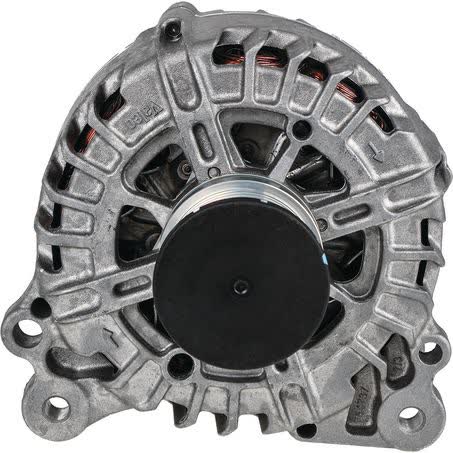

Valeo Alternator 12V 180A 439783

The Valeo Alternator 12V 180A, part number 439783, is a new rotating electrical unit supplied as each. It is rated at 180 amps and uses a 12 volt system, with a 6 groove pulley, clockwise rotation and an internal regulator.

This alternator is listed with a four-point mounting arrangement, quad leg alternator mount, 128mm mount centre to centre, and 61mm inside mounting legs. The pivot hole diameter is M8x1.25 / 9, and the pulley outside diameter is 49mm.

Valeo is listed as the brand and also as the unit make, and the product is described as a leading OE manufacturer and supplier for many euro vehicles. That makes the matching details especially important when replacing an existing alternator on a vehicle that requires the same mounting and connection setup.

Key Features

• 12V alternator rated at 180A
• New unit, supplied each
• 6 groove pulley
• Clockwise rotation
• Internal regulator
• Four-point mounting / quad leg mount

Specifications

• Part No.: 439783
• Variant SKU: A5603684
• Voltage: 12V
• Power rating: 180A
• Alternator charge current: 180A
• Pulley section: 6 groove
• Pulley outside diameter: 49mm
• Rotation: CW

Fitment guidance

• Supported makes in the supplied fitment data include Audi, Skoda and Volkswagen.
• Sample applications include Audi A3, Audi TT, Skoda Kodiaq, Skoda Octavia, Skoda Superb, Volkswagen Caddy, Volkswagen California, Volkswagen Crafter, Volkswagen Golf, Volkswagen Multivan, Volkswagen Passat, Volkswagen Passat Alltrack, Volkswagen Tiguan, Volkswagen Tiguan Allspace, Volkswagen Transporter, and Volkswagen Transporter / Caravelle.
• Year references shown in the fitment data include Audi A3 2012 to 2017, Audi TT 2008 to 2011, Skoda Kodiaq 2016 to 2018, Skoda Octavia 2012 to 2018, Volkswagen Caddy 2015 to 2020, Volkswagen California 2018, and Volkswagen Crafter 2016 to 2017.
• The fitment data also lists Hitachi EX17U and Hitachi EX17U 2005 in the broader applications grouping.

Application and Buying Notes

Before ordering, compare the part number 439783 and the physical details against the unit being removed. The key matching points here are 12V, 180A, 6 groove pulley, clockwise rotation, internal regulator, and the four-point mounting with 128mm mount centre to centre.

The mounting dimensions matter just as much as the electrical rating. Check the 61mm inside mounting legs, M8x1.25 / 9 pivot hole, 49mm pulley outside diameter, and the R 90 position or degree if you are matching a direct replacement rather than adapting parts.

The connector note is important: this unit has no connector for revolution counter. If the original alternator uses a different connector or sensing arrangement, do not assume it will interchange without checking the application and the existing harness connection.

This alternator is new and weighs 7.592kg, so handling and installation should be done carefully. A correct fit is best confirmed by part number, mounting style, pulley configuration and the vehicle application details rather than by appearance alone.

Valeo is identified as both the brand and the unit make, which is useful when matching alternators that are built around a specific OE-style configuration. If the original alternator has the same fitment pattern, electrical rating and connector arrangement, that gives a stronger starting point for compatibility checking.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 439783 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

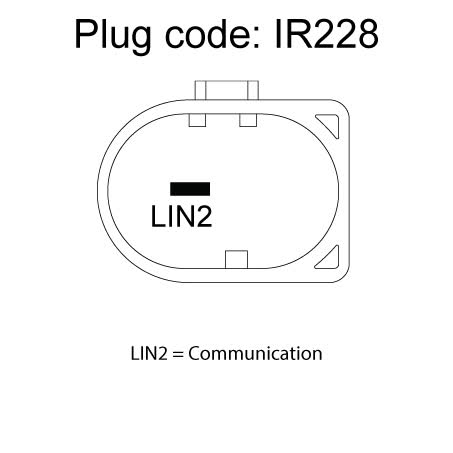

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Pin Code IR228, Power Rating (Amp) 180, Pulley Section 6 Groove, Rotation CW, Voltage 12, Mount Cnt to Cnt 128mm, Alternator Charge Current [A] 180.

Additional published details for cross-checking include Fastening Type Four-point mounting, Weight 7.592kg, Product Group 1 ROTATING ELECTRICAL, Part No. 439783, Brand VALEO, Description Valeo Alternator 12V 180A, Inside Mounting Legs 61mm, Pivot Hole Diameter M8x1.25 / 9, Pulley Outside Diameter 49mm, Regulator Type Internal.

Valeo Alternator 12V 180A. Part number 439783 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 439783, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number 439783, the 12V 180A rating, 6 groove pulley, clockwise rotation, internal regulator, and the four-point mounting dimensions before purchase. Vehicle application details should be checked against the existing alternator and the listed fitment information.

FAQ

What is the part number for this Valeo alternator?

The part number is 439783. The variant SKU is A5603684.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12 volt alternator with a 180 amp power rating and 180A charge current.

What pulley and rotation type does it use?

It uses a 6 groove pulley with clockwise rotation. The pulley outside diameter is 49mm.

What mounting and size details are listed?

The listed mounting details are four-point mounting, quad leg alternator mount, 128mm mount centre to centre, 61mm inside mounting legs, and an M8x1.25 / 9 pivot hole diameter.

Which vehicles are shown in the fitment data?

The fitment data includes Audi, Skoda and Volkswagen applications, with examples such as Audi A3, Audi TT, Skoda Kodiaq, Skoda Octavia, Skoda Superb, Volkswagen Caddy, Volkswagen California, Volkswagen Crafter, Volkswagen Golf, Volkswagen Multivan, Volkswagen Passat, Volkswagen Passat Alltrack, Volkswagen Tiguan, Volkswagen Tiguan Allspace, Volkswagen Transporter, and Volkswagen Transporter / Caravelle.
