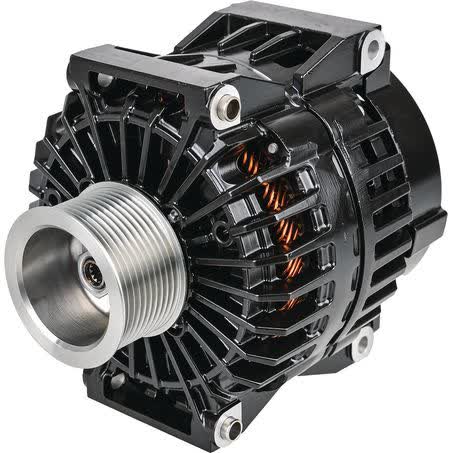

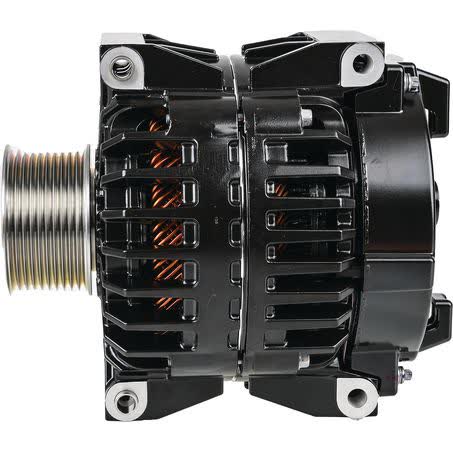

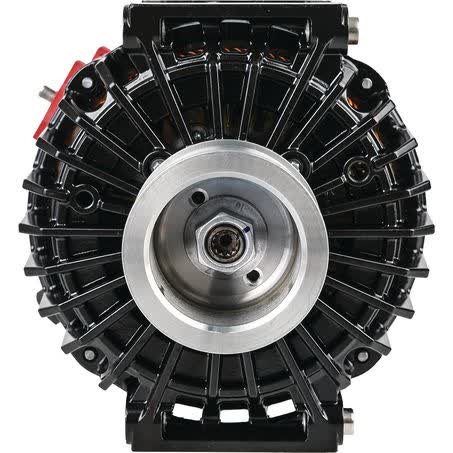

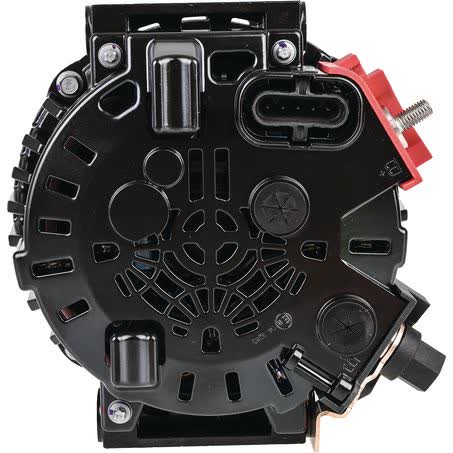

Prestolite Alternator 24V 180A AVI150P2114HP

The Prestolite alternator listed here is a 24V, 180A unit, new and supplied under part number AVI150P2114HP. It is a pad-mount alternator with a 10 groove pulley, clockwise rotation, and an internal regulator, so the electrical and mounting details need to line up with the vehicle before purchase.

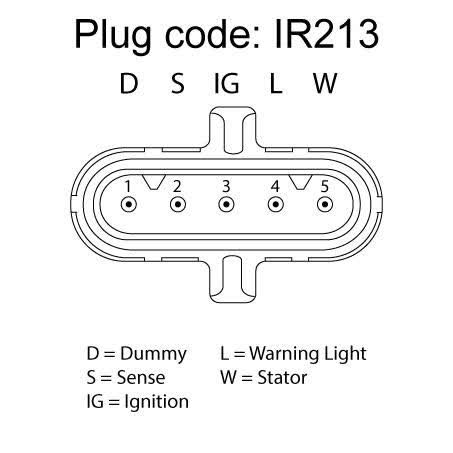

Key identifying details include mount hole diameter 9, inside mounting legs 110mm, mount leg thickness 87mm, and mount centre to centre 157mm. The alternator is also listed with OEM number A150P214 and pin code IR213, which are useful checkpoints when matching the correct replacement.

This unit suits Prestolite applications and is listed for selected Scania fitments including S-Series, T-Series, K-Series, Higer, and other Scania model groups shown below. Because alternators vary by mounting style, pulley type, and regulator arrangement, the part number and physical measurements should be checked against the original unit before ordering.

Key Features

• 24V, 180A output
• New alternator
• Internal regulator
• Pad mount design
• 10 groove pulley
• Clockwise rotation

Specifications

• Part No.: AVI150P2114HP
• OEM Number: A150P214
• Voltage: 24
• Power Rating: 180A
• Pulley Outside Diameter: 71mm
• Pulley Section: 10 groove
• Rotation: CW
• Alternator Mount: Pad

Verified fitment applications

• Prestolite
• Scania S-Series 2016
• Scania S-Series 2017
• Scania Higer
• Scania Higer 2009
• Scania Higer 2012
• Scania Higer 2013
• Scania Higer 2014

Application and Buying Notes

When replacing a 24V alternator, the important checks are the mounting style, pulley layout, regulator type, and the physical dimensions around the brackets. This unit is a pad-mount alternator with a 71mm pulley outside diameter, 10 groove pulley section, internal regulator, and clockwise rotation, so it needs to match the original setup rather than just the vehicle badge.

The listed mount measurements are specific: mount hole diameter 9, inside mounting legs 110mm, mount leg thickness 87mm, and mount centre to centre 157mm. Those dimensions matter because even small differences can affect alignment, belt tracking, and whether the alternator sits correctly in the bracket.

The alternator is new, weighs 10kg, and carries a one year warranty. It also features self excitation, remote sense, above ground layout, and high temperature grease and seals for longer bearing life, plus a fan design intended to improve airflow and cooling under high output load conditions.

If you are checking against an existing alternator, compare the part number AVI150P2114HP, OEM number A150P214, and pin code IR213 first. Those identifiers, together with the 24V and 180A rating, give the clearest guide to whether the unit is the right replacement for the application.

For Scania vehicles, do not rely on the model name alone. Confirm the exact series and build details against the listed fitments, because the product is shown against multiple Scania groups and year references, including S-Series 2016 and 2017, T-Series 2010, and several Higer and K-Series entries.

If the existing unit differs in pulley section, mounting arrangement, or regulator type, choose carefully before fitting. Alternators are sensitive to these details, and the wrong combination can create installation issues even where the vehicle family appears similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AVI150P2114HP helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 9, Pin Code IR213, Pulley Outside Diameter 71mm, Regulator Type Internal, Suits Unit Make Prestolite, Alternator Mount Pad, New / Reman. New.

Additional published details for cross-checking include OEM Number A150P214, Product Group 2 ALTERNATORS, Part No. AVI150P2114HP, Brand PRESTOLITE, Description Prestolite Alternator 24V 180A, Inside Mounting Legs 110mm, Mount Leg Thickness 87mm, Power Rating (Amp) 180, Pulley Section 10 Groove.

Prestolite Alternator 24V 180A. Part number AVI150P2114HP should be checked first. Listed voltage is 24. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Confirm fitment by matching part number AVI150P2114HP, OEM number A150P214, pin code IR213, and the listed mounting and pulley measurements against the vehicle and original alternator before ordering.

FAQ

Is this alternator new or remanufactured?

This alternator is listed as new. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.

What is the voltage and output rating?

It is a 24V alternator rated at 180A. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is a pad-mount alternator. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.

Which part numbers should be checked for identification?

The key identifiers are part number AVI150P2114HP and OEM number A150P214. The pin code is IR213. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.

What warranty is supplied with this alternator?

It is supplied with a one year warranty. For this listing, part number AVI150P2114HP is the main reference point. Listed voltage is 24. Listed output rating is 180. Published fitment references include S - SERIES 2016, S - SERIES 2017, SCANIA HIGER. These details should still be checked against the original unit before ordering.
