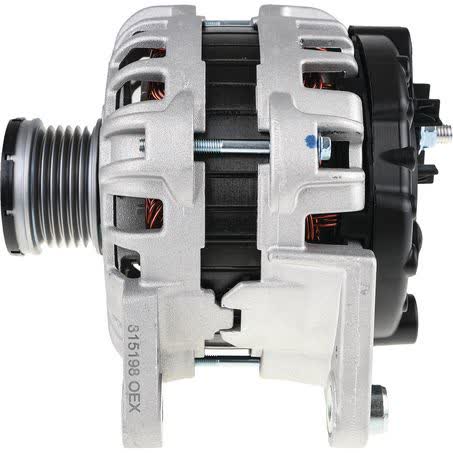

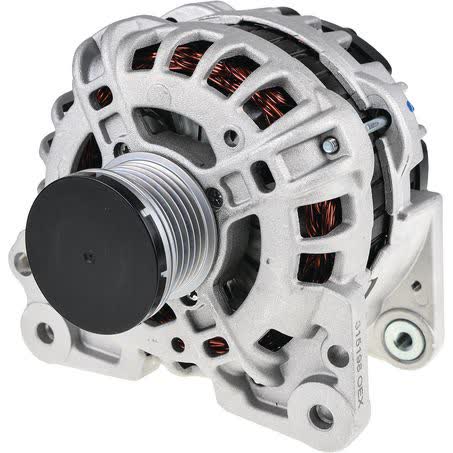

OEX Alternator 12V 110A Bosch Style BXA080

The OEX Alternator BXA080 is a 12V, 110A unit built in Bosch style and supplied as a new alternator. It uses an internal regulator, a quad leg alternator mount, and a 6 groove pulley, so the mounting pattern and pulley layout should be checked carefully against the vehicle application before ordering.

This alternator is listed for vehicles with start-stop function, which makes the application detail important when comparing it to the original unit. Key dimensions to confirm include 60mm inside mounting legs, 127mm mount centre to centre, and M8x1.25 / 9 pivot and adjusting hole dimensions.

OEX identifies this unit as part number BXA080, with pin code IR201 and a stated power rating of 110 amps. It is supplied as each, weighs 5.12kg, and is covered by a 3 year passenger / 1 year commercial warranty.

For buyers matching an existing Bosch-style alternator, the safest approach is to compare the part number, mounting style, pulley section, and hole sizes before purchase. The combination of 12V output, 110A capacity, and internal regulation helps narrow the match, but the exact vehicle fit still needs to be confirmed.

Key Features

• 12V alternator with 110A output
• Bosch style unit
• New alternator, not remanufactured
• Internal regulator
• Quad leg alternator mount
• 6 groove pulley

Specifications

• Brand: OEX
• Product type: Alternator

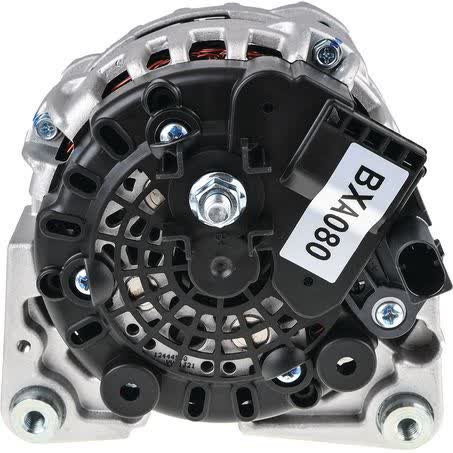

• Part No.: BXA080

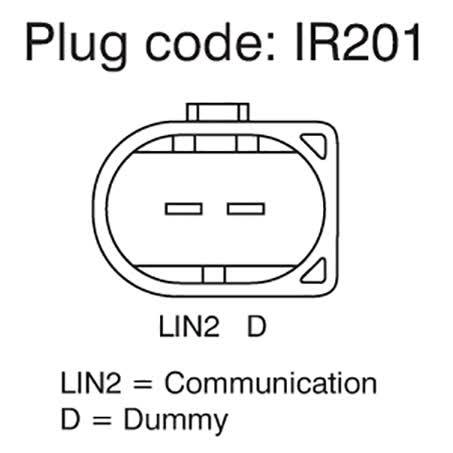

• Pin code: IR201
• Voltage: 12V
• Power rating: 110A
• Regulator type: Internal
• Alternator mount: Quad leg

Fitment guidance

• Volkswagen Up!
• Volkswagen Up! 2011
• Volkswagen Up! 2012
• Volkswagen Up! 2013
• Volkswagen Up! 2014

Application and Buying Notes

Before ordering, compare the vehicle’s original alternator against this unit’s Bosch style design, 12V system voltage, 110A output, and internal regulator. The mounting layout also matters: this alternator uses a quad leg mount, 60mm inside mounting legs, and a 127mm centre-to-centre mount measurement.

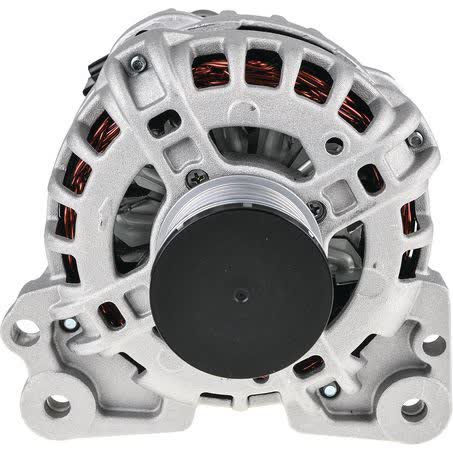

The pulley setup should also be checked closely. This alternator has a 50mm pulley outside diameter and a 6 groove pulley section, so it needs to match the belt arrangement on the vehicle. If the pulley style or groove count differs from the unit being replaced, it may not be the correct fit.

The listing notes that it suits vehicles with start-stop function, which is a useful compatibility checkpoint but not enough on its own to confirm fitment. Part number BXA080, pin code IR201, and the mounting and hole dimensions provide the most reliable comparison points when checking against the existing alternator.

Because alternators can look similar while differing in mount style, regulator type, pulley section, and electrical output, it is best to verify all key details before purchase. If the original unit has a different part number or physical layout, match those details first rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA080 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 60mm, Pivot Hole Diameter M8x1.25 / 9, Pulley Outside Diameter 50mm, Regulator Type Internal, Voltage 12, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA080, Brand OEX, Description OEX Alternator 12V 110A Bosch Style, Adjusting Hole Diameter M8x1.25 / 9, Pin Code IR201, Power Rating (Amp) 110, Pulley Section 6 Groove, Suits Unit Make Bosch.

OEX Alternator 12V 110A Bosch Style. Part number BXA080 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA080, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN UP!, VOLKSWAGEN UP! 2011, VOLKSWAGEN UP! 2012, VOLKSWAGEN UP! 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using part number BXA080, pin code IR201, Bosch style application details, and the listed mount, pulley, and hole dimensions before ordering.

FAQ

What type of alternator is this?

It is an OEX alternator, 12V, 110A, Bosch style, with an internal regulator. It is listed as a new unit.

What is the part number?

The part number is BXA080. The pin code is IR201.

What vehicles are listed in the fitment information?

The fitment information lists Volkswagen Up! applications, including 2011, 2012, 2013, and 2014.

Does this alternator suit start-stop vehicles?

Yes, the product note states it is for vehicles with start-stop function. The exact vehicle application still needs to be checked against the part number and mounting details.

What mounting and pulley details are provided?

It has a quad leg alternator mount, 60mm inside mounting legs, 127mm mount centre to centre, a 50mm pulley outside diameter, and a 6 groove pulley section.

What warranty is listed?

The warranty is listed as 3 year passenger and 1 year commercial.
