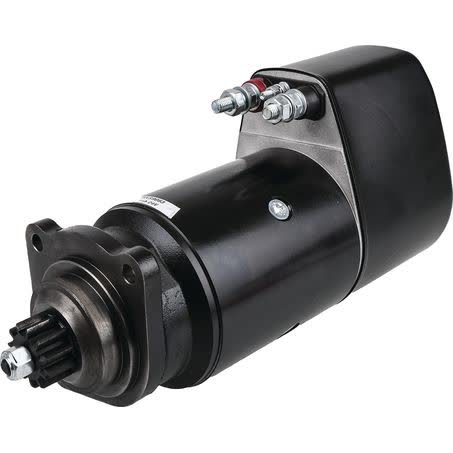

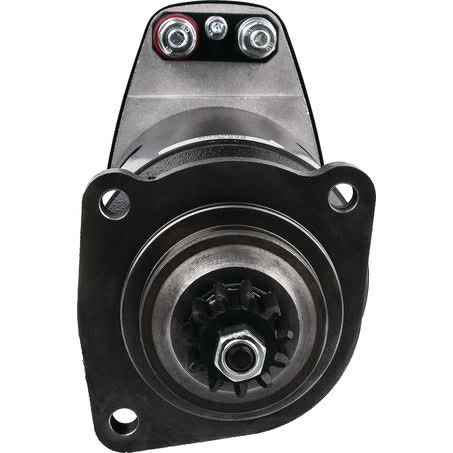

OEX Starter Motor 24V 11 Tooth CW Bosch Style BXS9063

The OEX Starter Motor BXS9063 is a new 24V starter motor with clockwise rotation, 11 teeth, and a Bosch suit. It is listed with a 5.4kW power rating, a 3-hole starter mount, and an overall length of 385mm, so it is important to compare the physical dimensions and mounting pattern before ordering.

Key dimensions on this unit include 127mm mount centres A, 90mm mount centres B and C, an 89mm flange diameter, and 11mm mount hole diameter. The pinion measures 41.5mm in diameter with a 47.5mm pinion at rest, which makes the part number and measurements the safest way to confirm the match for your application.

This starter is supplied new, weighs 16.14kg, and is backed by a one year warranty. It is described as Bosch style and noted for the KB Series, with OEM number 0001416009 shown for reference where cross-checking is required.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• Bosch suit
• 3 hole starter mount
• New unit

Specifications

• Voltage: 24V
• Power rating: 5.4kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole
• Mount centres A: 127mm
• Mount centres B: 90mm
• Mount centres C: 90mm

Confirmed fitment references

• VOLVO F12
• VOLVO FH12
• VOLVO FL10
• VOLVO NL
• VOLVO

Application and Buying Notes

Before buying, match the part number BXS9063 and check the 24V system requirement, because this starter is not a universal fitment item. The 11 tooth pinion, clockwise rotation, 3-hole mount, and 89mm flange diameter all need to align with the vehicle’s existing starter and mounting arrangement.

The listed measurements give a practical way to compare units side by side. Mount centres A at 127mm, mount centres B and C at 90mm, overall length of 385mm, and pinion at rest of 47.5mm are all useful checks when identifying a replacement. If the old starter carries a Bosch reference or OEM number 0001416009, that can help confirm you are looking at the right style.

This unit is new and rated at 5.4kW, so it suits buyers who need the correct electrical specification as well as the right physical fit. The weight of 16.14kg also indicates this is a substantial heavy-duty starter, so handling and installation should be done with care. If there is any mismatch in teeth count, rotation, flange size, or mount centres, stop and recheck before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9063 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 47.5mm, Power Rating 5.4kW, Suits Unit Make Bosch, Note KB Series.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 16.14kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS9063, Brand OEX, Description OEX Starter Motor 24V 11Th CW Bosch Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 385mm.

OEX Starter Motor 24V 11Th CW Bosch Style. Part number BXS9063 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9063, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978, VOLVO F12 1979. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility using part number BXS9063, the Bosch suit, the 24V specification, the 11 tooth CW configuration, and the recorded mounting and dimensional details before purchase or installation.

FAQ

What is the part number for this starter motor?

The part number is BXS9063. For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.

What rotation does this unit have?

It has clockwise rotation (CW). For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.

What vehicle references are listed for fitment?

Fitment references shown are VOLVO, VOLVO F12, VOLVO FH12, VOLVO FL10, and VOLVO NL. The F12 group also appears with year references in the supplied fitment data. For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

It is backed by a one year warranty. For this listing, part number BXS9063 is the main reference point. Listed voltage is 24. Published fitment references include VOLVO F12, VOLVO F12 1977, VOLVO F12 1978. These details should still be checked against the original unit before ordering.
