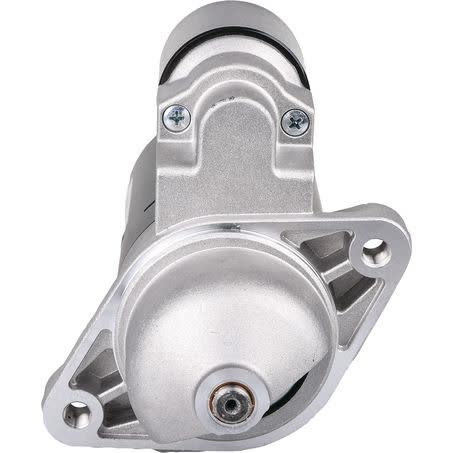

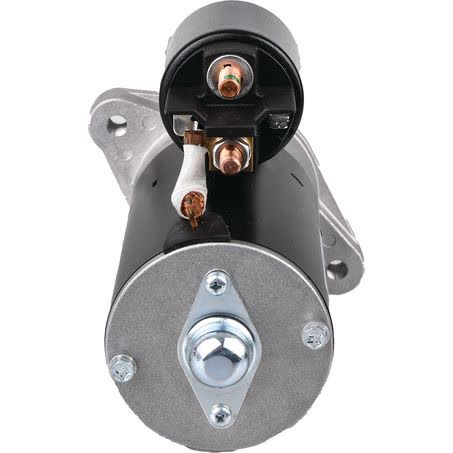

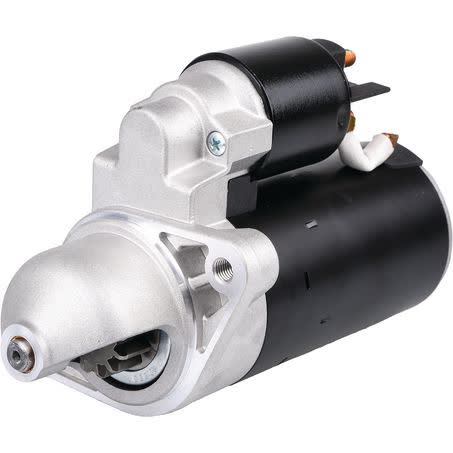

Mahle Starter Motor 12V 13 Tooth CW MS656

The Mahle MS656 is a new 12V starter motor with a 13 tooth pinion, clockwise rotation, and a 2.0kW power rating. It is supplied as a starter motor each, with a 2 hole starter mount, 115mm mount centre to centre, and a 74mm flange diameter for application checking before purchase.

Key physical details include an overall length of 236mm, a 38mm pinion diameter, and a pinion at rest measurement of 20mm. The unit also uses M10x1.25 mount holes and has an offset drive end bracket, so it is important to compare the mounting layout and drive-end arrangement with the original part.

This starter is identified as Mahle part number MS656 and OEM number 11132375. It is a 12 volt rotating electrical component with reduction gear transmission, and it is covered by a one year warranty.

Key Features

• 12V starter motor
• 13 tooth pinion
• Clockwise rotation (CW)
• 2.0kW power rating
• 2 hole starter mount
• Offset drive end bracket

Specifications

• Brand: Mahle
• Part No.: MS656
• OEM Number: 11132375
• Product Type: Starter Motor
• Voltage: 12V
• Power Rating: 2.0kW
• Rotation: CW
• Number of Teeth: 13

Application and Buying Notes

Before ordering, match the part number MS656 and the OEM number 11132375 against the starter currently fitted to the vehicle or equipment. The listed measurements matter as much as the electrical rating, so confirm the 12V system, 13 tooth pinion, CW rotation, 115mm mount centre to centre, and 2 hole mounting arrangement.

The 2.0kW power rating and reduction gear transmission are important identifiers, but they do not replace physical checks. Compare the overall length of 236mm, flange diameter of 74mm, pinion diameter of 38mm, and the 20mm pinion at rest measurement to avoid ordering a unit that looks similar but does not sit or engage correctly.

The note on this starter is an offset drive end bracket, which can affect how the unit aligns in the application. If the original starter uses a different bracket style, mounting pattern, or flywheel engagement depth, it should be checked carefully before fitment. The listed flywheel depth is 23.0, so that dimension should also be verified where accessible.

This part is sold as a new Mahle starter motor and carries a one year warranty. That warranty does not replace the need to confirm compatibility first. A proper match is usually based on the combination of voltage, rotation, tooth count, mounting dimensions, and OEM reference rather than any single detail on its own.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS656 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter M10x1.25, Overall Length 236mm, Pinion Diameter 38mm, Rotation CW, Voltage 12, Mount Cnt to Cnt 115mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Transmission Type with reduction gear, Number of mounting bores 2, For flywheel depth 23.0, Mounting points diameter 115.0, Packaging width 16.60, Net Weight 4130, Product Group 1 ROTATING ELECTRICAL, Part No. MS656, Brand MAHLE, Description Mahle Starter Motor 12V 13Th CW.

Mahle Starter Motor 12V 13Th CW. Part number MS656 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS656, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment using part number MS656, OEM number 11132375, and the full application details before ordering. When comparing with the existing starter, check the 12V rating, clockwise rotation, 13 tooth pinion, 2 hole mount, 115mm mount centre to centre, and the offset drive end bracket.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What is the part number?

The listed part number is MS656. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is this starter new or remanufactured?

It is listed as new. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 13 teeth. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What is the mounting arrangement?

It has a 2 hole starter mount with 2 mounting bores and 115mm mount centre to centre. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What should I confirm before buying?

Confirm the part number MS656, OEM number 11132375, 12V rating, clockwise rotation, 13 tooth pinion, and the mounting and bracket dimensions against the unit being replaced. For this listing, part number MS656 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
