Drivetech 4X4 Carling Style On/off Dpdt Rocker Switch 12/24V 30A DT-11209

The Drivetech 4x4 Carling Style Rocker Switch is a 12/24V switch with an On/Off DPDT function and a 30A rating at 12V DC, or 20A at 24V DC. It is identified as part number DT-11209 and is supplied as a single unit, making it suitable for electrical control setups where a compact rocker switch is required.

This switch uses silver plated copper contacts and has 4 blade terminals. The housing is PA66 flame retardant, which is a practical feature for under-dash or accessory panel installations where durability and heat resistance are important considerations.

The listed switch size is 36mm x 29mm with a mounting hole of 30mm x 22mm. Those measurements are important when matching it to a dash, switch panel, or custom cut-out, as the opening size must suit the body of the switch before installation is attempted.

Key Features

• Drivetech 4x4 Carling Style rocker switch
• On/Off DPDT switch action
• 30A at 12V DC, 20A at 24V DC
• Silver plated copper contacts

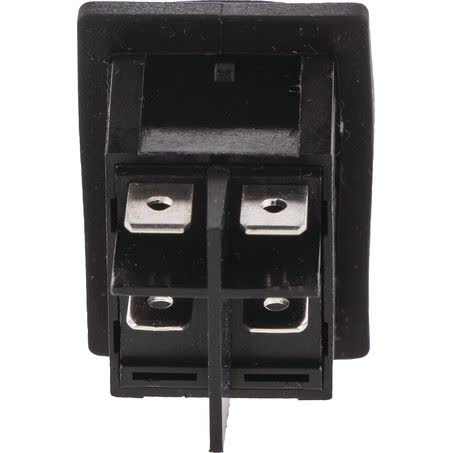

• 4 blade terminals
• PA66 flame retardant housing

Specifications

• Brand: Drivetech 4x4
• Part number: DT-11209
• Product type: Rocker switch
• Switch action: Off - On - DPDT
• Voltage: 12/24V
• Power rating: 30A @ 12V DC, 20A @ 24V DC
• Number of terminals: 4
• Switch illumination: n/a

Application and Buying Notes

Before ordering, check the panel opening against the listed mounting hole size of 30mm x 22mm and compare it with the switch body size of 36mm x 29mm. A rocker switch can look similar to others in the range, so the physical dimensions matter just as much as the electrical rating when you are planning a replacement or new installation.

The electrical side should also be matched carefully. This switch is rated at 30A on 12V DC systems and 20A on 24V DC systems, so it should be selected with the circuit load and system voltage in mind. It is intended for a DPDT On/Off setup, so the existing wiring arrangement needs to suit that switch function before fitment is attempted.

With 4 blade terminals, this switch is designed for straightforward accessory wiring, but terminal layout still needs to be checked against the existing loom or switch panel wiring. If you are replacing an old switch, compare the part number DT-11209, the terminal count, and the switching function rather than relying on appearance alone.

The PA66 flame retardant housing and silver plated copper contacts are useful material details when comparing options, especially where the switch will be used regularly or in a compact dash location. Even so, the final suitability depends on the equipment being controlled, the circuit design, and whether the opening and terminal arrangement match the installation you already have.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DT-11209 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 30A @ 12V DC, 20A @24V DC, Voltage 12/24V, Item Type Rocker Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES, Part No. DT-11209, Brand DRIVETECH 4X4.

Additional published details for cross-checking include Description Drivetech 4x4 Carling Style On/Off DPDT Rocker Switch, Number of Terminals 4, Switch Action Off - On - DPDT, Switch Type Rocker, Switch Illumination n/a, Product Group 1 AUTO ELEC ACCESSORIES.

Drivetech 4x4 Carling Style On/Off DPDT Rocker Switch. Part number DT-11209 should be checked first. Listed voltage is 12/24V. Listed output rating is 30A @ 12V DC, 20A @24V DC. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DT-11209, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12/24V and output 30A @ 12V DC, 20A @24V DC should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment by checking part number DT-11209, the 12/24V rating, the 30A @ 12V DC and 20A @ 24V DC load ratings, the 4 blade terminals, and the 30mm x 22mm mounting hole against your existing application before purchase.
