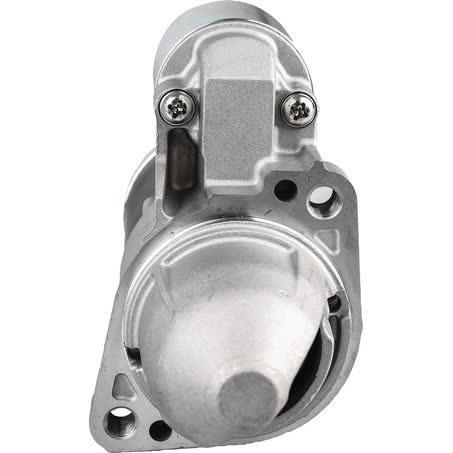

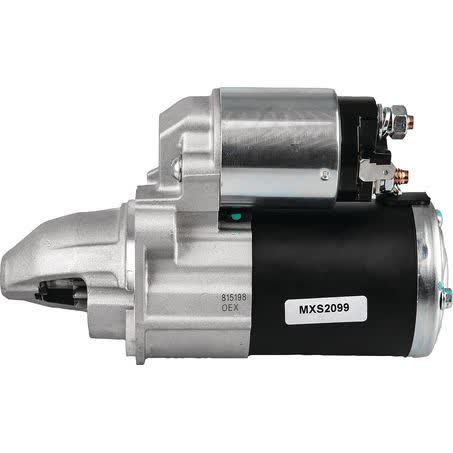

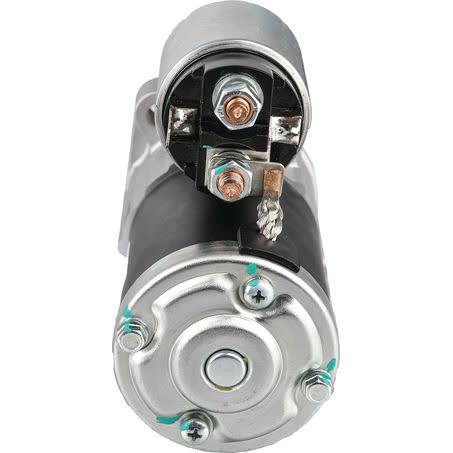

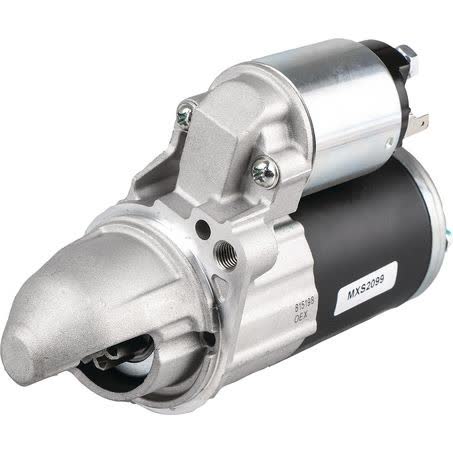

OEX Starter Motor 12V 9 Tooth CW Mitsubishi Style MXS2099

The OEX starter motor MXS2099 is a new 12V unit with 9 teeth, clockwise rotation, and a Mitsubishi style fitment profile. It is listed with a 70mm flange diameter, 94mm mount centres, and a 2-hole starter mount type, so it is important to compare those mounting details against the vehicle before ordering.

This starter motor uses a 29mm pinion diameter with 28mm pinion at rest, and the overall length is 198mm. The mount hole diameter is M10x1.25, which gives a useful reference point when checking the starter position and hardware against the application on the vehicle.

The product is noted for Mitsubishi applications and carries the instruction “AUTO TRANSMISSION ONLY”. That restriction matters, because even where a starter looks similar externally, transmission type and mounting layout need to match the listed application details exactly.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, manufactured in ISO certified factories, and backed by a comprehensive nationwide warranty. The listed warranty for this starter motor is 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V new starter motor
• 9 tooth pinion
• Clockwise rotation
• Mitsubishi style application
• 2-hole starter mount type
• Auto transmission only

Specifications

• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• New / Reman.: New
• Weight: 2.82kg
• Flange diameter: 70mm
• Mount centres A: 94mm
• Starter mount type: 2 hole

Fitment guidance

• Mitsubishi
• Mitsubishi Lancer
• Mitsubishi Lancer 2008
• Mitsubishi Lancer 2009
• Mitsubishi Lancer 2010
• Mitsubishi Lancer 2011
• Mitsubishi Lancer 2012
• Mitsubishi Lancer 2013

Application and Buying Notes

Before ordering, check the part number MXS2099, the 12V electrical specification, and the 9 tooth clockwise pinion against the starter already fitted to the vehicle. The important physical checks here are the 70mm flange diameter, 94mm mount centres, 2-hole mount type, and M10x1.25 mount hole diameter, because starters with similar appearance can still differ at the mounting face.

The auto transmission only note is a key limiter. Even where the vehicle is a Mitsubishi or Mitsubishi Lancer, the transmission type needs to match the stated application. If the existing starter has a different tooth count, rotation, overall length of 198mm, or pinion dimensions of 29mm diameter and 28mm at rest, it is not the same unit and should not be assumed to interchange.

The warranty is listed as 3 years for passenger use and 1 year for commercial use, so it is worth confirming how the vehicle is used before purchase. The unit is new, weighs 2.82kg, and is supplied as a starter motor each, which makes it suitable for buyers who need a direct replacement candidate rather than a remanufactured part.

For the best result, compare the old starter against the listing details rather than relying on the badge alone. Mitsubishi style fitment, the Mitsubishi unit make, and the MXS2099 part number are the most useful identifiers here, but the final check should always be the mounting arrangement, tooth count, and transmission application on the actual vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2099 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 94mm, Number of Teeth 9, Pinion at Rest 28mm, Rotation CW, Voltage 12, New / Reman. New, Weight 2.82kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXS2099, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.25, Overall Length 198mm, Pinion Diameter 29mm, Suits Unit Make Mitsubishi, Note AUTO TRANSMISSION ONLY.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number MXS2099 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2099, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009, MITSUBISHI LANCER 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number MXS2099, the Mitsubishi style application, and the listed mounting and transmission details before purchase. Use the 12V, 9 tooth, CW, 2-hole, auto transmission only specification set as the final compatibility check.

FAQ

What vehicle makes is this starter motor listed for?

It is listed for Mitsubishi applications, with Mitsubishi Lancer appearing in the fitment data. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.

What rotation and voltage does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.

Does this part suit automatic or manual transmission vehicles?

The listing states auto transmission only. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.

What is the part number?

The listed part number is MXS2099. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2099 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI LANCER, MITSUBISHI LANCER 2008, MITSUBISHI LANCER 2009. These details should still be checked against the original unit before ordering.
