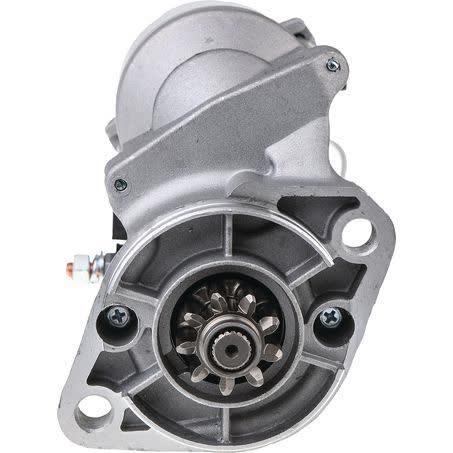

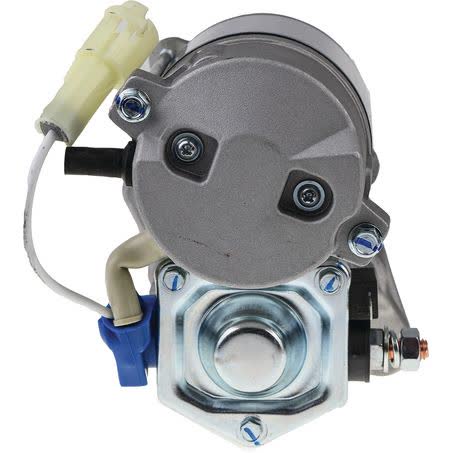

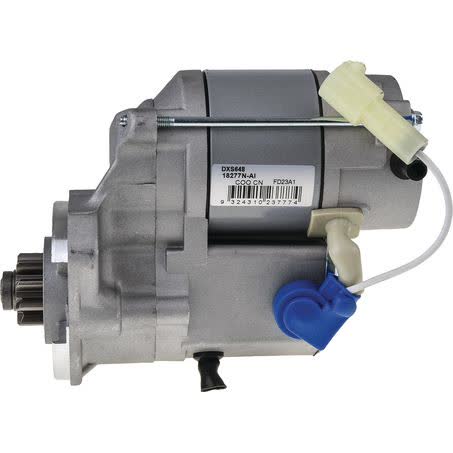

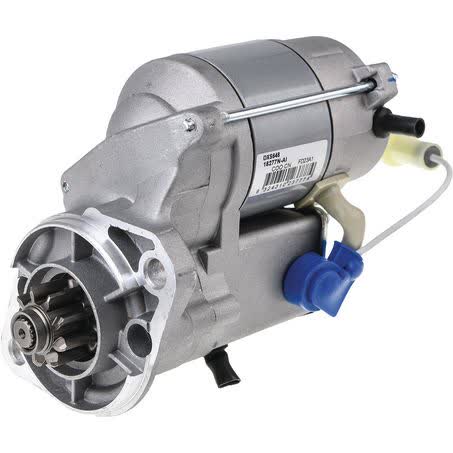

OEX Starter Motor 12V 1.4KW 9 Tooth CW Denso Style DXS648

The OEX DXS648 is a 12V starter motor in Denso style, built as a new unit with a 1.4kW power rating and clockwise rotation. It is set up with 9 teeth, a 34mm pinion diameter, and a 2 hole starter mount, so the physical specifications can be checked before ordering.

Key dimensions for this starter motor include an overall length of 192mm, flange diameter of 82mm, mount hole diameter of 11mm, and mount centre to centre of 105mm. The note supplied with the part lists a flange to rear measurement of 160mm, which is useful when comparing against the original unit already on the vehicle or equipment.

This starter is identified as suit unit make Denso and is listed as new, not remanufactured. It weighs 3.66kg and is covered by a one year warranty, which gives buyers a clear reference point for both installation planning and replacement matching.

Key Features

• 12V starter motor
• 1.4kW power rating
• 9 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• New unit

Specifications

• Part No.: DXS648
• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 9

Fitment information

• Listed fitment applications include Carrier Extra, Carrier Generator, Carrier Genesis, Carrier Phoenix, Carrier Phoenix Ultra, Carrier Phoenix Ultra XL, Carrier Phoenix Xtra, Carrier Transcold, and Carrier Ultima.
• Sample fitment applications provided include Carrier Extra 1996 and Carrier Generator 1995.
• Fitment data is grouped under Carrier variants, so the original starter should be checked against the DXS648 part number and the dimensions supplied here before purchase.

Application and Buying Notes

For a starter motor, the part number and physical measurements matter just as much as the voltage. The DXS648 is a 12V, clockwise-rotation starter with a 9 tooth pinion, 34mm pinion diameter, and 2 hole mount arrangement, so the existing unit should be compared carefully to those details before ordering.

The quoted dimensions are there to help avoid a mismatch: 192mm overall length, 82mm flange diameter, 11mm mount hole diameter, 105mm mount centre to centre, and a flange to rear measurement of 160mm. If the replacement starter does not match those figures closely, it may not sit correctly even if the electrical specification appears similar.

This unit is listed as suit unit make Denso, which is an important check for buyers comparing against an original Denso-style starter. If the vehicle or equipment has been fitted with a non-standard replacement previously, the safest approach is to match the old starter by part number, tooth count, mount style, and measured dimensions rather than relying on appearance alone.

Because the fitment list is limited to Carrier applications and related variants, buyers should confirm their application carefully before ordering. The supplied fitment data includes Carrier Extra, Carrier Generator, Carrier Genesis, Carrier Phoenix, Carrier Phoenix Ultra, Carrier Phoenix Ultra XL, Carrier Phoenix Xtra, Carrier Transcold, and Carrier Ultima, but the exact match still needs to be verified against the original part and installation space.

The one year warranty and new condition give a clear replacement option, but warranty cover does not replace fitment checking. For electrical starters, correct rotation, tooth count, and flange measurements are the practical checkpoints that help determine whether the part will suit the job.

Compatibility note: Confirm compatibility by matching part number DXS648, the Denso style application, 12V specification, 9 tooth count, clockwise rotation, and the listed dimensions before purchase. Where the original starter differs in mount style or measurement, verify carefully against the existing unit rather than relying on appearance alone.

FAQ

How do I confirm this part is the right match for my application?

Match DXS648 against the original unit and compare the key specifications shown for the product, including voltage 12. Fitment references can support the identification process, but they should not replace a direct part-number check. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.

What specifications should I compare before ordering?

The key checkpoints are the part number, voltage, amperage or output rating, mounting arrangement, pulley style, connector or terminal layout, and any listed OEM reference. Together, these details help confirm both physical fit and electrical suitability. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.

Does this listing include verified fitment information?

This item includes fitment information that can be used as an application guide. Final confirmation should still be based on the original component details and the exact application requirements. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.

Why is part number confirmation important even when the application looks similar?

Vehicles, trucks, tractors, and equipment can use different electrical units within the same model family. Part number confirmation reduces the risk of ordering a unit with the wrong output, mounting pattern, regulator setup, pulley arrangement, or connector style. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.

What does the listed electrical rating tell me about this unit?

The listing shows a voltage of 12. These details help identify whether the unit matches the original system requirements. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.

Is warranty information listed for this item?

Yes. The listed warranty is One Year. Warranty should be considered alongside the part-number and application checks before purchase. For this listing, part number DXS648 is the main reference point. Listed voltage is 12. Published fitment references include CARRIER EXTRA, CARRIER EXTRA 1996, CARRIER GENERATOR. These details should still be checked against the original unit before ordering.
