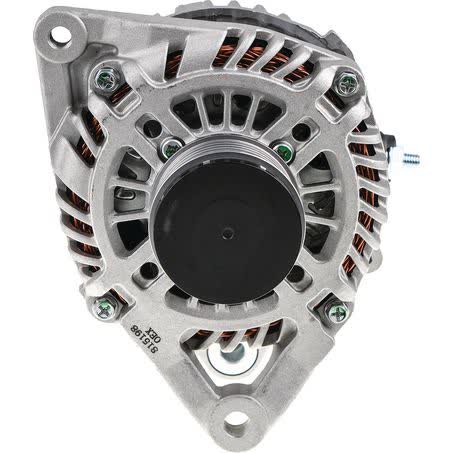

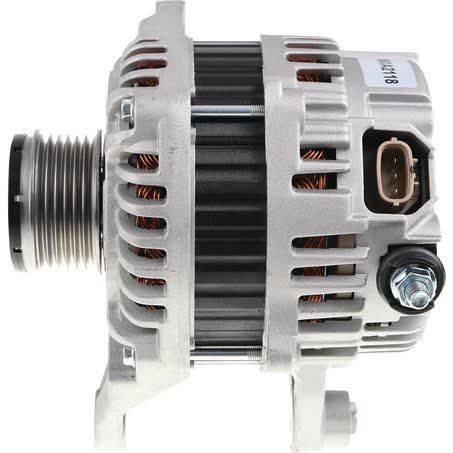

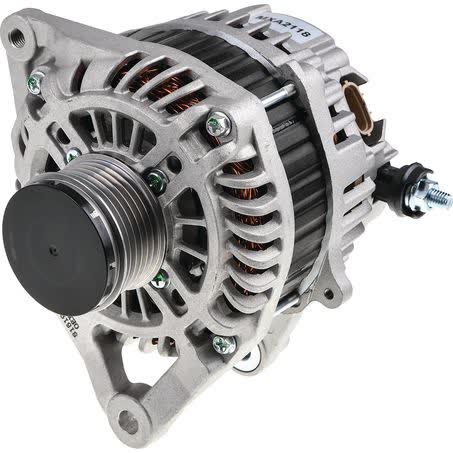

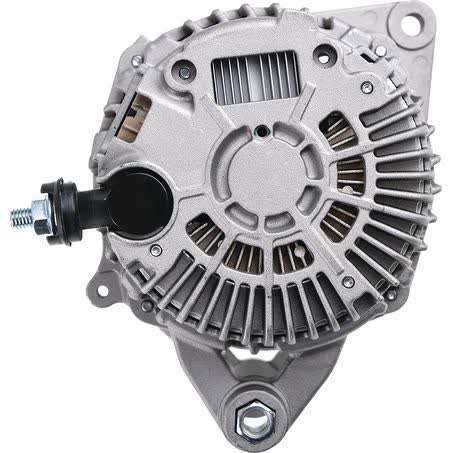

OEX Alternator 12V 100A Mitsubishi Style MXA2118

The OEX MXA2118 is a new 12V alternator rated at 100A, built in a Mitsubishi style with a twin leg alternator mount. It uses an internal regulator and a 6 groove pulley, with a pulley outside diameter of 55mm.

This unit is listed with an inside mounting leg measurement of 67mm, a mount centre to centre measurement of 169mm, a pivot hole diameter of M10x1.25 / 10, and an adjusting hole diameter of M10x1.25. Those dimensions matter when you are comparing brackets, mounts, and belt alignment before ordering.

OEX positions this alternator within its rotating electrical range, and the brand notes ISO9001 certified manufacturing sources. It is covered by a 3 year passenger / 1 year commercial warranty, which is a useful reference point for buyers who want a new replacement rather than a remanufactured unit.

Key Features

• 12V alternator with 100A output
• Mitsubishi style unit
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley
• New unit

Specifications

• Voltage: 12V
• Power rating: 100A
• Part No.: MXA2118
• Brand: OEX
• Unit of measure: Each
• New / reman.: New
• Regulator type: Internal
• Alternator mount: Twin leg

Fitment guidance

• MAZDA: 2, 2 2007, 2 2008, 2 2009, 2 2010, plus other listed applications

Application and Buying Notes

Before buying, match the part number MXA2118 against your existing alternator details and confirm the mounting style. This unit is a Mitsubishi style alternator with twin leg mounting, so the inside mounting legs measurement of 67mm and the 169mm mount centre to centre measurement should be checked against the vehicle side hardware, not assumed.

The pulley details also need attention. This alternator has a 55mm outside diameter pulley with a 6 groove section, so the belt type and pulley arrangement need to align with the vehicle application. If the belt profile or groove count does not match, the unit may not be suitable even if the electrical rating is correct.

Electrical output is rated at 100A at 12V, which is the key operating specification for charging system replacement work. The internal regulator is another important checkpoint, because regulator style must suit the system the alternator is being fitted to.

The listed fitment preview mentions Mazda and Mazda 2 applications, including Mazda 2 model years from 2007 through 2014, but that preview should still be cross-checked carefully against the part number, mounting dimensions, and pulley configuration before purchase. Variations can occur across engines and charging system layouts.

Because this alternator is new and sold individually as each, it is sensible to compare your original unit’s measurements, connector arrangement, and mount type before fitting. That approach helps avoid delays and reduces the chance of ordering the wrong charging component for the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2118 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 67mm, Pivot Hole Diameter M10x1.25 / 10, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 169mm, Weight 5.74kg.

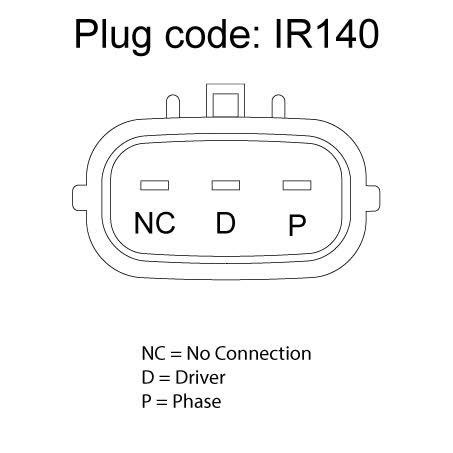

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA2118, Brand OEX, Description OEX Alternator 12V 100A Mitsubishi Style, Adjusting Hole Diameter M10x1.25, Pin Code IR140, Power Rating (Amp) 100, Pulley Section 6 Groove, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg.

OEX Alternator 12V 100A Mitsubishi Style. Part number MXA2118 should be checked first. Listed voltage is 12. Listed output rating is 100. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2118, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm compatibility by matching part number MXA2118, Mitsubishi style mounting, twin leg mount dimensions, pulley configuration, and the vehicle’s application details before ordering. Do not rely on model name alone when checking alternator fitment.

FAQ

What is the part number for this alternator?

The part number is MXA2118. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

This alternator is listed as new. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 100A power rating. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What mounting style does it have?

It has a twin leg alternator mount and is described as Mitsubishi style. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.

What should be checked before ordering for fitment?

Check the part number MXA2118, the twin leg mounting dimensions, the 6 groove pulley with 55mm outside diameter, and the vehicle application details before ordering. For this listing, part number MXA2118 is the main reference point. Listed voltage is 12. Listed output rating is 100. Published fitment references include MAZDA 2, MAZDA 2 2007, MAZDA 2 2008. These details should still be checked against the original unit before ordering.
