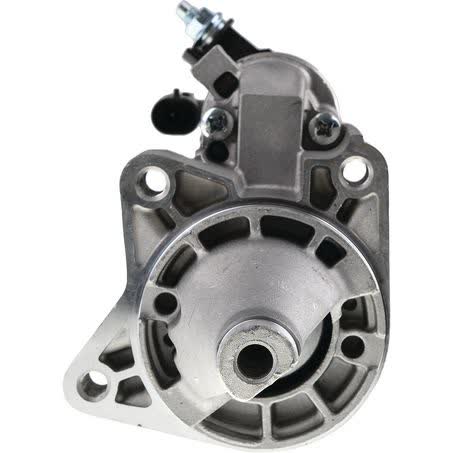

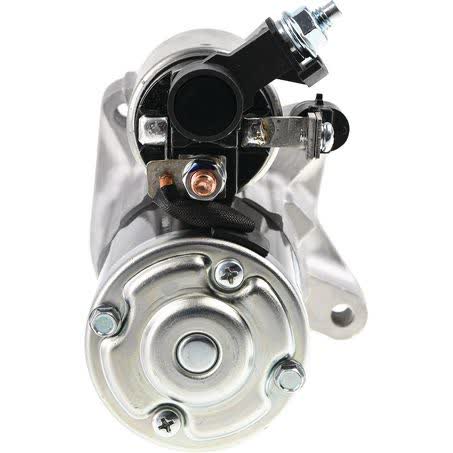

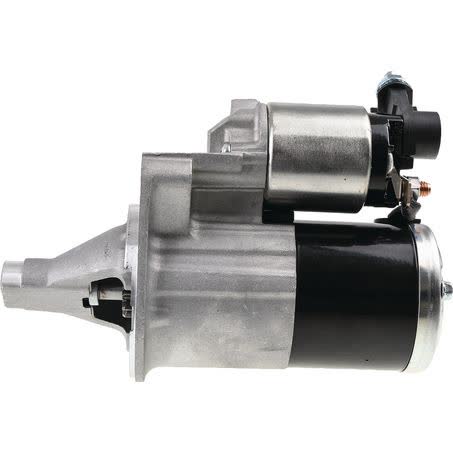

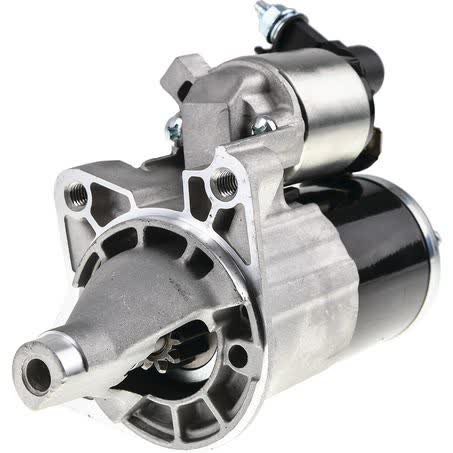

OEX Starter Motor 12V 10 Tooth Mitsubishi Style MXS2101

The OEX MXS2101 is a 12V starter motor in Mitsubishi style with a 10 tooth pinion, built as a new unit for rotating electrical applications. It suits Mitsubishi applications and uses a 3 hole starter mount with mount centres of 113mm, 71mm and 66mm.

Key dimensions to check before ordering are the 82mm flange diameter, 205mm overall length, M10x1.5 mount hole diameter and 27mm pinion diameter. The pinion at rest is 8mm, and the starter rotates clockwise.

This unit is listed with part number MXS2101 and is backed by a 3 year passenger / 1 year commercial warranty. A note with the product also says to confirm by OE number, and for standard solenoid use MXS2070.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• New unit
• 3 hole starter mount
• Mitsubishi style

Specifications

• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Mount centres A: 113mm
• Mount centres B: 71mm
• Mount centres C: 66mm
• Flange diameter: 82mm
• Overall length: 205mm

Fitment guidance

• CHRYSLER: SEBRING, SEBRING 2007, SEBRING 2008, SEBRING 2009, SEBRING 2010

Application and Buying Notes

Before ordering, match the part number MXS2101 against the original unit and confirm the OE number where possible. The product is described as Mitsubishi style and suits Mitsubishi, so the safest check is to compare the mounting layout, the 10 tooth pinion and the 12V specification against the starter already fitted.

The mounting measurements are important on this starter motor because the centres are listed at 113mm, 71mm and 66mm, with a 3 hole mount and M10x1.5 mount hole diameter. If any of those figures differ from your existing starter, the unit should be treated as unconfirmed until measured against the vehicle side.

Weight and size can also help with comparison. At 2.8kg and 205mm overall length, this is a compact 12V starter motor rather than a universal fit item. Confirm the flange diameter of 82mm, the 27mm pinion diameter and the 8mm pinion at rest position before purchase if you are cross-checking against the removed starter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2101 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 113mm, Mount Centres C 66mm, Number of Teeth 10, Pinion at Rest 8mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Weight 2.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2101, Brand OEX, Description OEX Starter Motor 12V 10Th Mitsubishi Style, Flange Diameter 82mm, Mount Centres B 71mm, Mount Hole Diameter M10x1.5, Overall Length 205mm, Pinion Diameter 27mm.

OEX Starter Motor 12V 10Th Mitsubishi Style. Part number MXS2101 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2101, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008, CHRYSLER SEBRING 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MXS2101, OE number details, and the measured mounting and pinion specifications before ordering. The listed vehicle reference is Mitsubishi, and no additional vehicle models should be assumed without verification.

FAQ

What type of part is the OEX MXS2101?

It is a starter motor, listed as a 12V Mitsubishi style unit in the rotating electrical category. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

What mounting measurements should I check?

Check the 3 hole mount layout and the listed centres of 113mm, 71mm and 66mm, along with the M10x1.5 mount hole diameter. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.

Does the listing mention any other starter note?

Yes. The note says to confirm by OE number, and for standard solenoid use MXS2070. For this listing, part number MXS2101 is the main reference point. Listed voltage is 12. Published fitment references include CHRYSLER SEBRING, CHRYSLER SEBRING 2007, CHRYSLER SEBRING 2008. These details should still be checked against the original unit before ordering.
