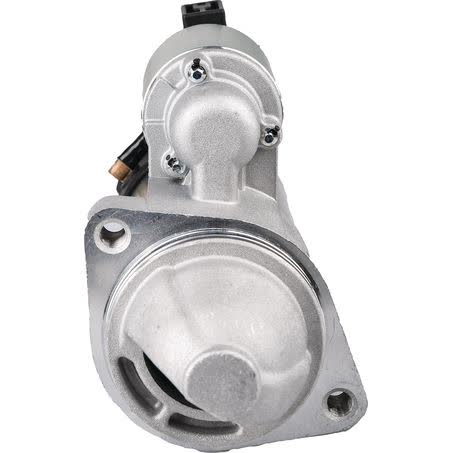

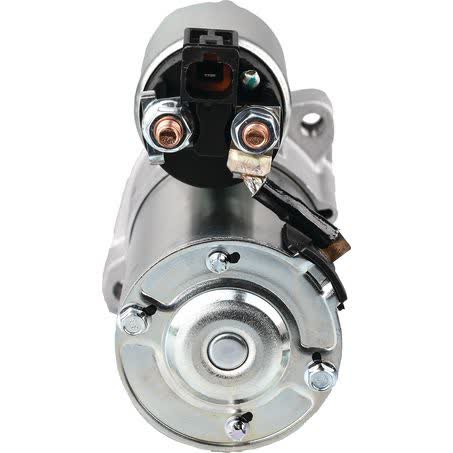

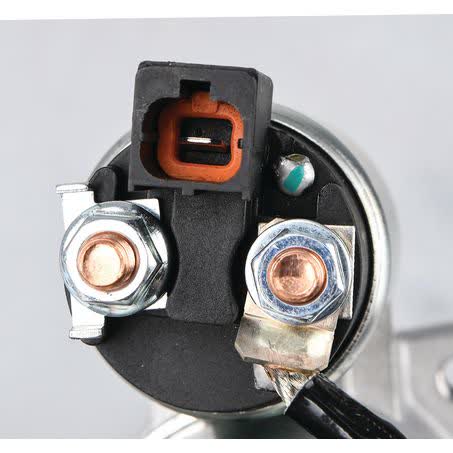

OEX Starter Motor 12V 11 Tooth CW Valeo Style VXS954

The OEX starter motor VXS954 is a new 12V unit built in a Valeo style configuration, with 11 teeth and clockwise rotation. It is listed as suitable for start-stop applications and suits Valeo units, so the mounting style and application details matter just as much as the electrical rating when checking replacement suitability.

Key physical details include a 102mm mount centre measurement, 77mm flange diameter, M10x1.25 mount hole diameter, 218mm overall length, and a 34mm pinion diameter. The pinion sits 17mm at rest, and the starter uses a 2-hole mount type.

This unit is supplied by OEX, carries part number VXS954, and is a new starter motor rather than a remanufactured unit. It weighs 3.44kg and is covered by a 3-year passenger / 1-year commercial warranty, which may help with purchasing confidence when the application details line up.

Key Features

• Suitable for start-stop applications
• Valeo style starter motor
• 12V operation
• 11-tooth pinion
• Clockwise rotation
• New unit

Specifications

• Brand: OEX
• Part number: VXS954
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Suites unit make: Valeo
• Starter mount type: 2-hole

Fitment guidance

• Referenced applications include Hyundai i30, Hyundai i40, and Kia Rondo.
• Listed fitment preview includes Hyundai i30 from 2011 through 2020.
• Listed fitment preview includes Hyundai i40.
• Listed fitment preview includes Kia Rondo from 2013 through 2015.

Application and Buying Notes

Before ordering, match the part number VXS954 and compare the mounting details against the original starter on the vehicle. The important checks here are the 12V rating, 11-tooth pinion, clockwise rotation, 2-hole mount type, and the measured dimensions of 102mm mount centres, 77mm flange diameter, and 218mm overall length.

Because this starter is noted as suitable for vehicles with a start-stop function, it is worth confirming that the existing vehicle specification actually uses that type of setup. A starter that is correct in voltage and tooth count can still be wrong if the application requires a different pinion depth, mount pattern, or rotation direction.

The listed Valeo style and suits unit make information should be treated as a compatibility checkpoint, not a guess. If the original unit is Valeo-pattern and the measured dimensions match, that is a stronger indication than relying on vehicle model alone. This matters especially on vehicles with multiple starter variants across the same model range.

Weight, pinion size, and pinion position can also help when comparing units side by side. The pinion diameter is 34mm, the pinion sits 17mm at rest, and the unit weighs 3.44kg, all of which can assist with a physical comparison before fitting begins.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS954 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 102mm, Number of Teeth 11, Pinion at Rest 17mm, Rotation CW, Voltage 12, New / Reman. New, Weight 3.44kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXS954, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style - See Note, Flange Diameter 77mm, Mount Hole Diameter M10x1.25, Overall Length 218mm, Pinion Diameter 34mm, Suits Unit Make Valeo, Note Suits vehicles with start-stop function.

OEX Starter Motor 12V 11Th CW Valeo Style - See Note. Part number VXS954 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS954, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012, HYUNDAI I30 2013, KIA RONDO, KIA RONDO 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number VXS954, the Valeo style application, 12V electrical specification, 11-tooth CW configuration, and the measured mounting dimensions against the original starter before purchase or installation.

FAQ

What is the part number for this starter motor?

The part number is VXS954. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

It is listed as a new starter motor. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.

Does this starter suit start-stop vehicles?

Yes. It is noted as suitable for vehicles with start-stop function. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed mounting details are 102mm mount centres, a 77mm flange diameter, M10x1.25 mount hole diameter, and a 2-hole starter mount type. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.

Which vehicles are referenced in the fitment preview?

The fitment preview references Hyundai i30, Hyundai i40, and Kia Rondo, with Hyundai i30 shown from 2011 through 2020 and Kia Rondo shown from 2013 through 2015. For this listing, part number VXS954 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I30, HYUNDAI I30 2011, HYUNDAI I30 2012. These details should still be checked against the original unit before ordering.
