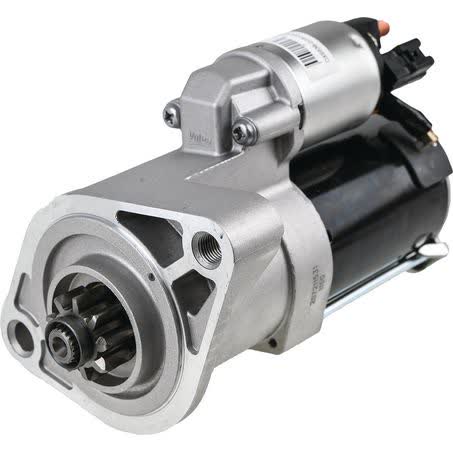

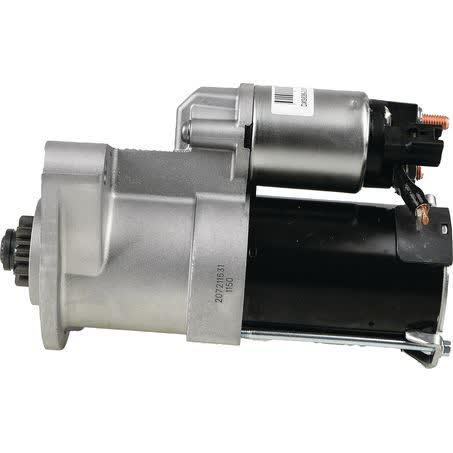

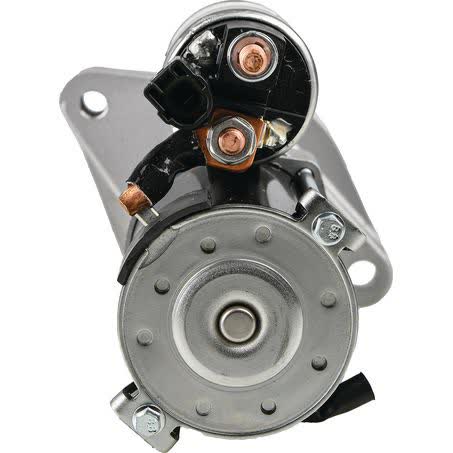

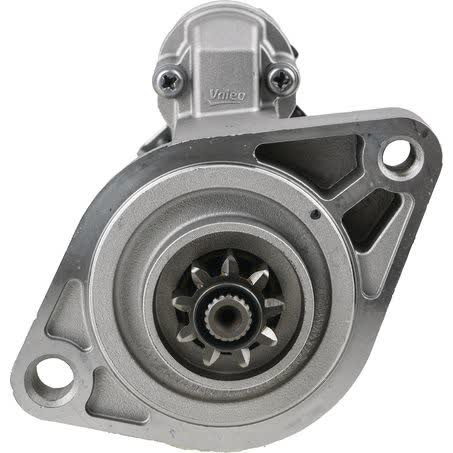

OEX Starter Motor 12V 9 Tooth CW For Valeo DXS636-2

The OEX starter motor listed here is a 12V unit with 9 teeth, clockwise rotation, and a Valeo suitment reference. It is identified by part number DXS636-2 and OEM number DXS636, so matching the part number and the application details is the safest way to confirm you have the correct replacement before ordering.

This starter motor uses a 2 hole starter mount, with 130mm mount centres, an 82.5mm flange diameter, and M12x1.25 / 13 mount hole diameter. The overall length is 220mm, the pinion diameter is 35mm, and the pinion at rest measures 18mm, which are the key dimensions to check against the removed unit.

It is a new starter motor, sold each, and weighs 3.8kg. OEX notes that the unit is made using OE components and is sourced from ISO9001 certified factories, with a 3 year passenger / 1 year commercial warranty offered for added buying confidence.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Suits Valeo unit applications
• New unit, sold each
• 2 hole starter mount

Specifications

• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• Starter mount type: 2 hole
• Mount centres A: 130mm
• Flange diameter: 82.5mm
• Overall length: 220mm
• Pinion diameter: 35mm

Fitment guidance

• Verified application data includes Toyota Fortuner, Toyota Hilux, and Toyota Land Cruiser Prado.
• Fitment entries shown include Toyota Fortuner 2015 and 2020, Toyota Hilux 2015 through 2020, and Toyota Land Cruiser Prado 2015.
• Confirm the removed starter matches the 12V, 9 tooth, clockwise, 2 hole configuration before ordering.

Application and Buying Notes

For a starter motor, the most important checks are the electrical rating, rotation, tooth count, and mounting dimensions. This unit is 12V, clockwise rotation, and has 9 teeth, with 130mm mount centres and an 82.5mm flange diameter, so those measurements should line up with the starter you are replacing.

The Valeo suitment reference is important, but it should still be matched against the part number DXS636-2 and OEM number DXS636. If your original unit differs in mount type, flange size, overall length, or pinion dimensions, do not assume interchangeability on brand alone.

This is a new starter motor, not a remanufactured unit, and it weighs 3.8kg. The stated warranty is 3 years for passenger use and 1 year for commercial use, so it is worth confirming your vehicle’s use case before purchase if the starter will be fitted to a working commercial vehicle.

When checking compatibility, compare the 2 hole mount, M12x1.25 / 13 mount holes, 220mm overall length, 35mm pinion diameter, and 18mm pinion at rest. These are practical identifiers that help avoid ordering errors when a vehicle model name alone is not enough to confirm the correct part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS636-2 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 130mm, Number of Teeth 9, Pinion at Rest 18mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole, Weight 3.8kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS636-2, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo, Flange Diameter 82.5mm, Mount Hole Diameter M12x1.25 / 13, Overall Length 220mm, Pinion Diameter 35mm, Suits Unit Make Valeo, New / Reman. New.

OEX Starter Motor 12V 9Th CW Valeo. Part number DXS636-2 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS636-2, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020, TOYOTA HILUX. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number DXS636-2, OEM number DXS636, the Valeo application reference, and the physical dimensions listed above before purchase.

FAQ

What vehicle applications are listed for this starter motor?

The fitment data provided includes Toyota Fortuner, Toyota Hilux, and Toyota Land Cruiser Prado. Specific entries shown include Fortuner 2015 and 2020, Hilux 2015 through 2020, and Land Cruiser Prado 2015. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What is the voltage and rotation of this starter motor?

It is a 12V starter motor with clockwise rotation. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 9 teeth. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What part numbers should I check before ordering?

Check OEX part number DXS636-2 and OEM number DXS636. The suitment reference is Valeo. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured starter motor?

This unit is listed as new. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What warranty is provided?

The stated warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS636-2 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.
