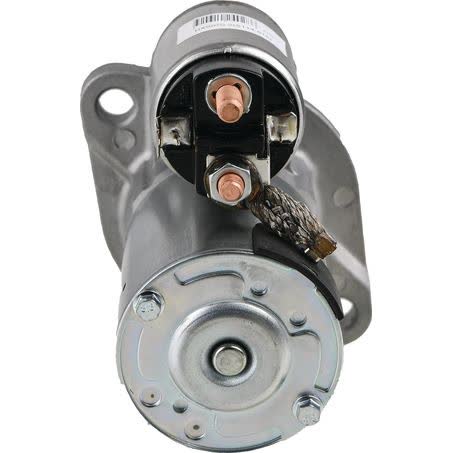

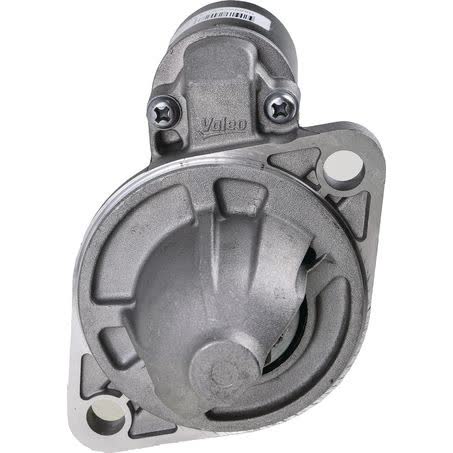

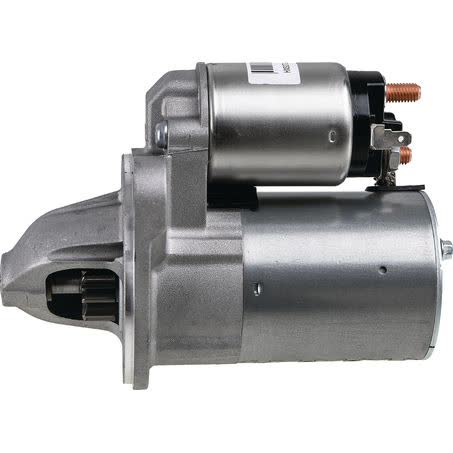

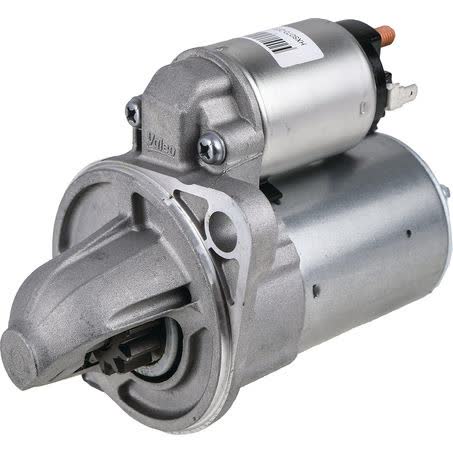

OEX Starter Motor 12V 11T CW Valeo HXS070-2

The OEX Starter Motor HXS070-2 is a 12V new starter motor with 11 teeth, clockwise rotation, and Valeo suitment. It is listed with a 2-hole starter mount, 95mm flange diameter, 120mm mount centres, and a 179mm overall length, so it is important to match the physical dimensions as well as the electrical and drive details before purchase.

This unit weighs 2.66kg and uses a pinion diameter of 34mm with a pinion at rest of 20mm. Those measurements matter when checking clearance, mounting position, and engagement type, particularly where the original starter is a Valeo unit and the replacement needs to align correctly with the vehicle’s mounting and ring gear arrangement.

OEX lists this starter as made using OE components and sourced through ISO9001-certified manufacturing and supply channels. The stated warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point for buyers who need a replacement starter for the right application rather than a general-purpose unit.

Key Features

• 12V starter motor
• 11-tooth pinion
• Clockwise rotation
• Suits Valeo unit make
• New unit
• 2-hole starter mount

Specifications

• Part No.: HXS070-2
• OEM Number: HXS070
• Voltage: 12V
• Number of Teeth: 11
• Rotation: CW
• Starter Mount Type: 2 Hole
• Mount Centres A: 120mm
• Flange Diameter: 95mm

Verified application groups and examples

• AIRMAN: AX30U-4, AX33U-6A, AX38U-6A, PDS130S
• AMMANN: ARX23, ARX26, AV12, AV16, AV20, AV23, AV26, AV32, AV33, AV40
• ANTONIO CARRARO: TTR4400
• CASE: CX27B, CX55BX
• DITCH WITCH: SK1050, SK850
• DOOSAN/DAEWOO: DX27Z, DX30Z, DX35Z
• GEHL: 1640E, 340, 3635
• HERCULES: HE150

Application and Buying Notes

Before ordering, compare the starter you are replacing against the key identifiers on this unit: HXS070-2, HXS070, 12V, 11 teeth, clockwise rotation, and suitment for Valeo. Matching only one detail is not enough; the flange diameter of 95mm, mount centres of 120mm, and 2-hole mount style all need to line up with the original unit and the vehicle’s mounting points.

The pinion specifications are just as important as the mounting pattern. This starter has a 34mm pinion diameter and a 20mm pinion at rest, so it is worth checking the old starter’s drive section and clearance around the bellhousing area before fitting. If the physical dimensions differ from the original, the unit may not seat or engage correctly even if the part appears similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS070-2 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 120mm, Number of Teeth 11, Pinion at Rest 20mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole, Weight 2.66kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. HXS070-2, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo, Flange Diameter 95mm, Mount Hole Diameter 13.5, Overall Length 179mm, Pinion Diameter 34mm, Suits Unit Make Valeo, New / Reman. New.

OEX Starter Motor 12V 11Th CW Valeo. Part number HXS070-2 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS070-2, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013, AIRMAN AX38U-6A, AMMANN ARX23, AMMANN ARX23 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the part number HXS070-2, OEM number HXS070, the 12V 11-tooth clockwise configuration, and the 2-hole mounting dimensions before ordering.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, for 12V systems, with 11 teeth and clockwise rotation. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.

What part numbers are listed for this starter?

The listed part number is HXS070-2 and the OEM number shown is HXS070. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.

What mounting details should I check?

Check the 2-hole starter mount, 120mm mount centres, 95mm flange diameter, and 13.5mm mount hole diameter. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.

What are the key drive measurements?

The pinion has 11 teeth, a 34mm pinion diameter, and a 20mm pinion at rest. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.

Is this starter for a Valeo application?

Yes, the listed suits unit make is Valeo. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number HXS070-2 is the main reference point. Listed voltage is 12. Published fitment references include AIRMAN AX30U-4, AIRMAN AX33U-6A, AIRMAN AX33U-6A 2013. These details should still be checked against the original unit before ordering.
