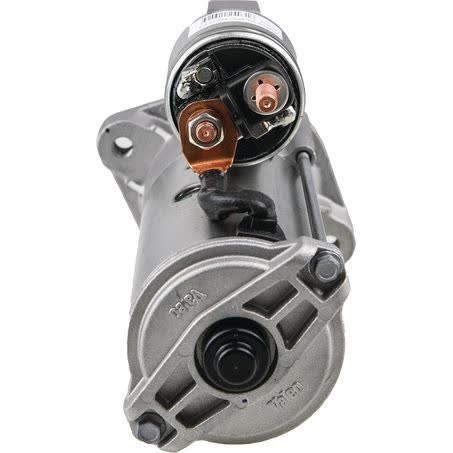

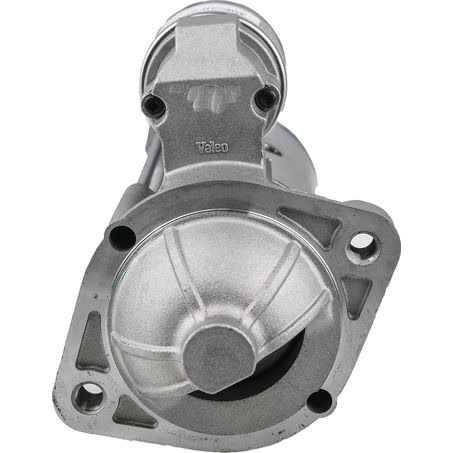

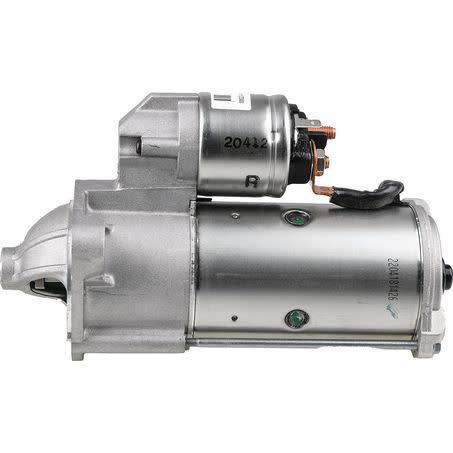

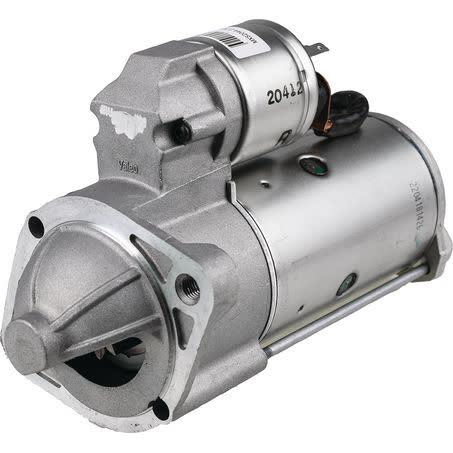

OEX Starter Motor 12V 10T CW Mitsubishi Style MXS2044-2

This OEX starter motor is a new 12V unit with a 10 tooth pinion, clockwise rotation and a 2.2kW power rating. It is listed under part number MXS2044-2, with OEM number MXS2044, and is described as Mitsubishi style for applications that match the physical and electrical details.

Key dimensions include a 105mm mount centres A measurement, 77mm flange diameter, 238mm overall length, 32mm pinion diameter and M10x1.25 mount hole size. The starter mount type is 2 hole, the pinion at rest is 2mm, and the unit weighs 3.94kg.

OEX states this starter is made using OE components for a fit and function intended to align closely with the original application, and the product is sourced through ISO9001 certified manufacturing. Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• New starter motor
• 12V electrical system
• 10 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• 2 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: MXS2044-2
• OEM number: MXS2044
• Voltage: 12V
• Power rating: 2.2kW
• Rotation: CW
• Number of teeth: 10

Checked application references

• Mitsubishi Challenger
• Mitsubishi Express
• Mitsubishi Triton
• Mitsubishi Challenger 2008 through 2015
• Mitsubishi Express 1988 and 1989 shown in the application preview

Application and Buying Notes

Before ordering, compare the part number MXS2044-2 and OEM number MXS2044 against the old unit or the vehicle application you are replacing. The key physical checks on this starter are the 12V rating, 10 tooth pinion, clockwise rotation, 2 hole mount, 105mm mount centres, 77mm flange diameter and 238mm overall length.

This starter is listed as Mitsubishi style and suits unit make Valeo, so matching the unit style and mounting points matters as much as the electrical rating. If the replacement unit differs in mount hole diameter, pinion diameter, pinion rest position or rotation, it should be checked carefully before fitting.

Warranty is listed separately for passenger and commercial use, so the vehicle’s intended use matters when you are assessing coverage. If you are replacing a starter on a Mitsubishi Challenger, Express or Triton application, confirm the exact model year and engine setup against the matched part number rather than relying on the vehicle badge alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2044-2 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 10, Pinion at Rest 2mm, Power Rating 2.2kW, Suits Unit Make Valeo, New / Reman. New, OEM Number MXS2044.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2044-2, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 77mm, Mount Hole Diameter M10x1.25, Overall Length 238mm, Pinion Diameter 32mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2044-2 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2044-2, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009, MITSUBISHI CHALLENGER 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MXS2044-2 or OEM number MXS2044, then verify the 12V, 10 tooth, CW, 2 hole, 105mm mount-centres and 238mm overall-length details against the original starter before purchase.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

The starter motor is 12V. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has a 10 tooth pinion. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise, shown as CW. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.

What warranty is listed?

Warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Check the part number MXS2044-2, OEM number MXS2044, voltage, tooth count, rotation, mount type, mount centres and overall dimensions against the original unit. For this listing, part number MXS2044-2 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI CHALLENGER, MITSUBISHI CHALLENGER 2008, MITSUBISHI CHALLENGER 2009. These details should still be checked against the original unit before ordering.
