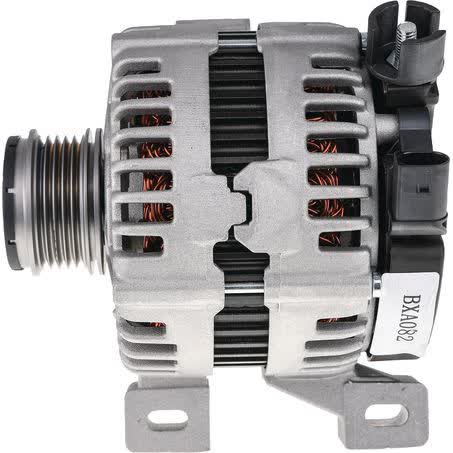

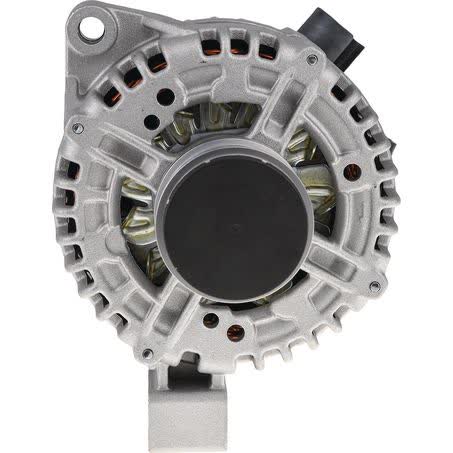

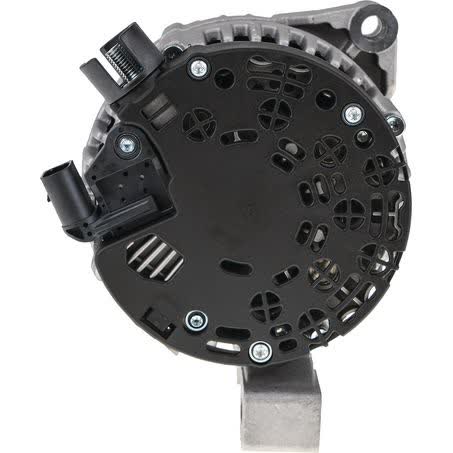

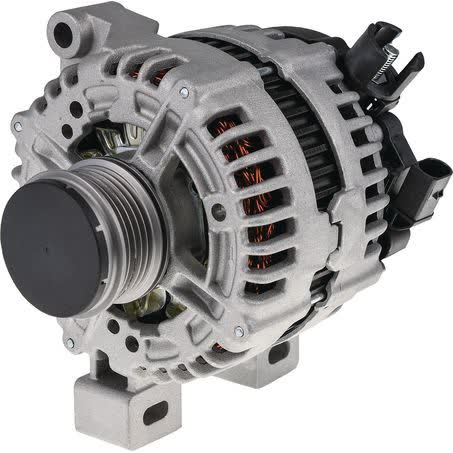

OEX Alternator 12V 150A Bosch Style BXA082

The OEX Alternator BXA082 is a new 12V unit rated at 150 amps and built in a Bosch style with a pad mount. It suits Bosch applications and uses a 5 groove pulley, with an outside pulley diameter of 56 mm and inside mounting legs measuring 92 mm.

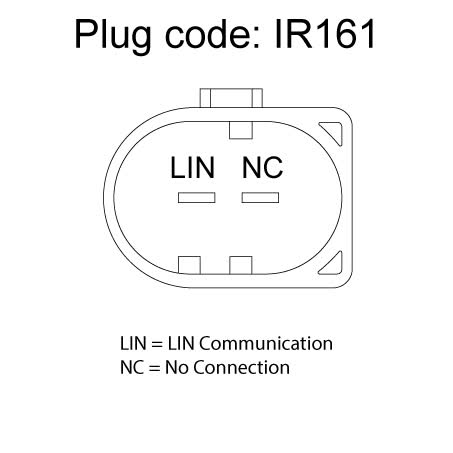

This alternator is supplied under the OEX brand and is listed as part number BXA082, with pin code IR161 and an adjusting hole diameter of 11 mm. At 6.9 kg, it is a substantial rotating electrical component, so the mounting style, pulley layout and electrical interface should be checked carefully before ordering.

OEX notes a dynamically balanced rotor and also advises confirming by OE number because regulator functions can vary between applications. That is a practical check point on this unit, especially where the vehicle has had previous electrical work or where the original alternator specification is not clearly marked.

Key Features

• New alternator
• 12V system
• 150 amp output
• Bosch style unit
• Pad mount
• Dynamically balanced rotor

Specifications

• Brand: OEX
• Part No.: BXA082
• Product type: Alternator
• Voltage: 12V
• Current rating: 150A
• New / remanufactured: New
• Suits unit make: Bosch
• Alternator mount: Pad

Fitment guidance

• Fitment is listed against Volkswagen Crafter applications.
• Fitment is also listed against Volvo C30, C70, S40, V50 and XC70 applications.
• Several listed applications include model-year references, including Volvo C30 from 2006 through 2013 and Volvo C70 from 2006 through 2007.
• Because regulator functions can differ, OE number confirmation is recommended before purchase.
• Check the Bosch-style mounting arrangement, pad mount, 5 groove pulley and the 92 mm inside mounting legs against the unit being replaced.

Application and Buying Notes

When comparing this alternator to the original unit, start with the part number BXA082 and the Bosch-style, pad mount layout. The electrical rating is 12V and 150A, so it is intended for vehicles that match that charging setup rather than a lower-output or different-voltage alternator.

The pulley details matter as much as the electrical rating. This unit has a 5 groove pulley with a 56 mm outside diameter, so the belt configuration needs to match the vehicle already fitted. The inside mounting legs measure 92 mm and the adjusting hole diameter is 11 mm, both of which are important physical checks when matching the alternator to the bracket and tensioning arrangement.

OEX has advised that regulator functions can differ, which is why OE number confirmation is strongly recommended. If the original alternator label is available, compare the OE number, mounting style, pin code IR161 and the physical dimensions before fitting. That approach reduces the chance of ordering a similar-looking alternator that does not communicate or charge the same way.

This unit is new rather than remanufactured and is listed at 6.9 kg, so it should be handled and installed with care. For commercial use, the warranty listed is 1 year, while passenger use is listed at 3 years. If the vehicle is used in a way that places extra load on the charging system, confirm the application carefully before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA082 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 92mm, Power Rating (Amp) 150, Pulley Section 5 Groove, Voltage 12, New / Reman. New, Product Group 2 ALTERNATORS.

Additional published details for cross-checking include Part No. BXA082, Brand OEX, Description OEX Alternator 12V 150A Bosch Style, Adjusting Hole Diameter 11, Pin Code IR161, Pulley Outside Diameter 56mm, Suits Unit Make Bosch, Alternator Mount Pad, Weight 6.9kg, Product Group 1 ROTATING ELECTRICAL.

OEX Alternator 12V 150A Bosch Style. Part number BXA082 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA082, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 150 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN CRAFTER, VOLKSWAGEN CRAFTER 2016, VOLVO C30, VOLVO C30 2006, VOLVO C30 2007, VOLVO C30 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number BXA082, the Bosch-style pad mount layout, the 12V 150A rating, the 5 groove pulley and the OE application details before ordering. Regulator function can vary between vehicles, so OE number confirmation is important.

FAQ

What is the part number for this alternator?

The part number is BXA082.

Is this alternator new or remanufactured?

It is listed as new.

What are the voltage and amperage ratings?

This alternator is rated at 12V and 150A.

What pulley type does it use?

It uses a 5 groove pulley with a 56 mm outside diameter.

What vehicle applications are listed?

Listed applications include Volkswagen Crafter and Volvo C30, C70, S40, V50 and XC70.

What should be checked before buying?

Check the OE number, Bosch-style pad mount layout, 12V 150A rating, 5 groove pulley, 92 mm inside mounting legs, 11 mm adjusting hole diameter and pin code IR161 against the original unit.
