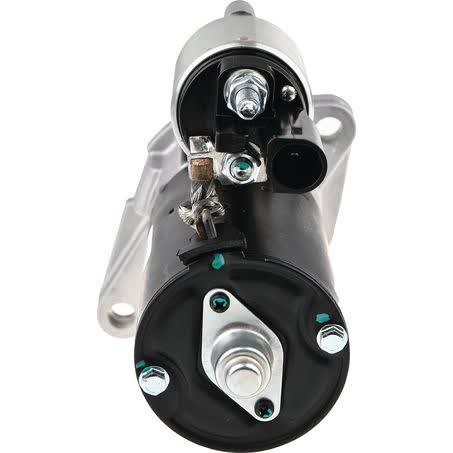

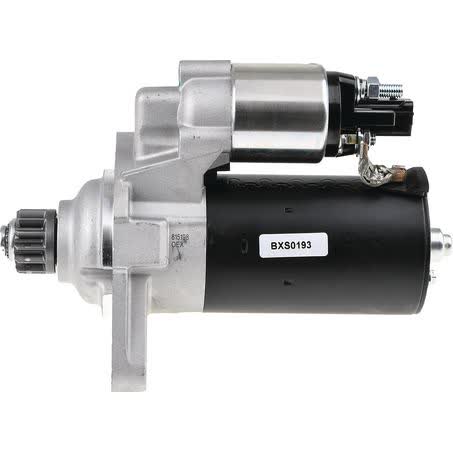

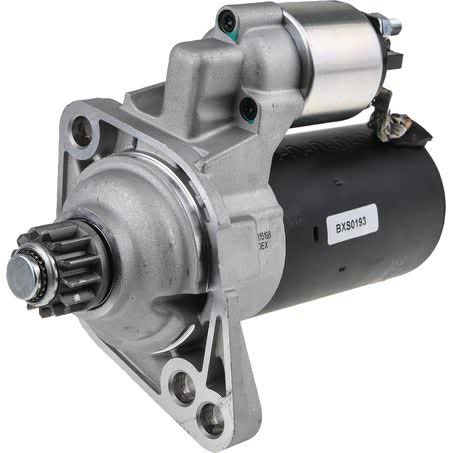

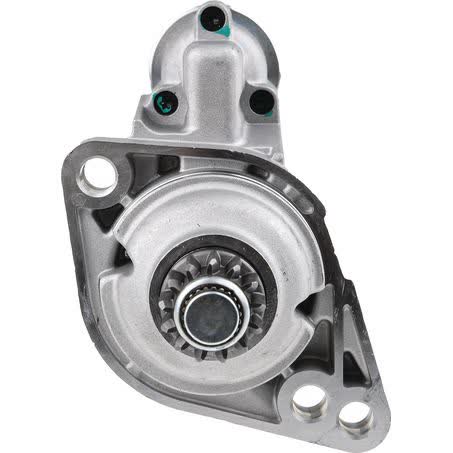

OEX Starter Motor 12V 13 Tooth CCW Bosch Style BXS0193

The OEX Starter Motor BXS0193 is a new 12V starter motor with a 1.7kW power rating, 13 teeth, and CCW rotation. It is listed as a Bosch style unit and suits Bosch applications, with manual transmission only noted in the product details.

Physical dimensions matter with starter motors, and this unit is specified with a 79mm flange diameter, 240mm overall length, 128mm mount centres A, 111mm mount centres B, and 18mm mount centres C. The starter mount type is 3 hole, with a 12mm mount hole diameter and a 34mm pinion diameter.

This part is identified as OEX part number BXS0193 and is supplied new, not remanufactured. The listed weight is 3.64kg, and the armature is dynamically balanced, which is a useful build detail when comparing like-for-like replacement starters.

Key Features

• 12V starter motor
• 1.7kW power rating
• 13 tooth pinion
• CCW rotation
• Bosch style unit
• Manual transmission only

Specifications

• Brand: OEX
• Part No.: BXS0193
• Type: Starter Motor
• Voltage: 12V
• Power Rating: 1.7kW
• Number of Teeth: 13
• Rotation: CCW
• Suits Unit Make: Bosch

Confirmed fitment references

• AUDI A1
• AUDI A3
• SKODA OCTAVIA
• SKODA YETI
• VOLKSWAGEN GOLF

Application and Buying Notes

Use the part number BXS0193, the Bosch style application, and the physical mounting details together when checking compatibility. The key checkpoints here are 12V, 13 teeth, CCW rotation, and the 3 hole starter mount with 128mm, 111mm, and 18mm mount centres.

This starter is noted as manual transmission only, so it should not be assumed suitable for an automatic application. The listed fitment references include Audi A1 and A3, Skoda Octavia and Yeti, and Volkswagen Golf, but the exact vehicle match still needs to be checked against the installed unit and vehicle application.

When comparing your original starter, pay close attention to the 79mm flange diameter, 240mm overall length, 34mm pinion diameter, and 52mm pinion at rest. These measurements help confirm the replacement is physically aligned to the vehicle and avoids guessing based on brand alone.

A starter motor can share a similar appearance across several models while still differing in mounting pattern, tooth count, rotation, or transmission application. If your existing unit has different mount centres, a different pinion count, or a different rotation direction, this part should not be assumed to fit.

The warranty listed is 3 years for passenger use and 1 year for commercial use. As with any electrical replacement, keep the vehicle details, original part number, and mounting measurements handy before ordering so the correct part can be matched first time.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0193 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 128mm, Mount Centres C 18mm, Number of Teeth 13, Pinion at Rest 52mm, Power Rating 1.7kW, Suits Unit Make Bosch, Note Manual Transmission Only.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXS0193, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Bosch Style, Flange Diameter 79mm, Mount Centres B 111mm, Mount Hole Diameter 12, Overall Length 240mm.

OEX Starter Motor 12V 13Th CCW Bosch Style. Part number BXS0193 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0193, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using OEX part number BXS0193, the Bosch style application, 12V specification, 13-tooth CCW configuration, and the listed mounting and transmission details before purchase.

FAQ

What is the part number for this starter motor?

The listed OEX part number is BXS0193. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The voltage is listed as 12V. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.

What rotation direction does this starter use?

It is listed as CCW rotation. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 13 teeth. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.

Is this starter suitable for automatic transmission vehicles?

No. The product details state manual transmission only. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0193 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2010, AUDI A1 2011. These details should still be checked against the original unit before ordering.
