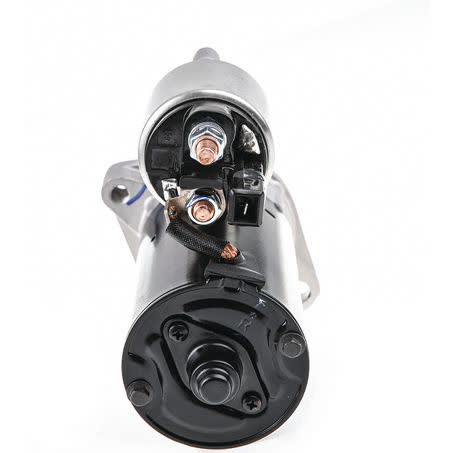

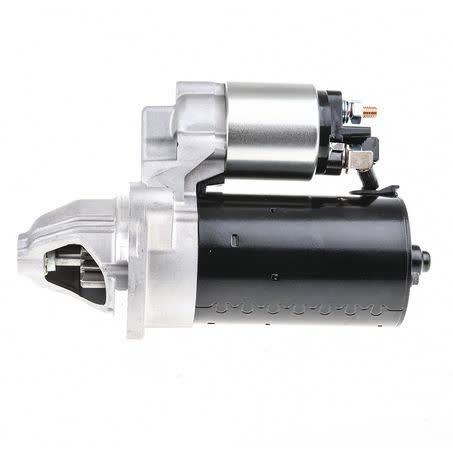

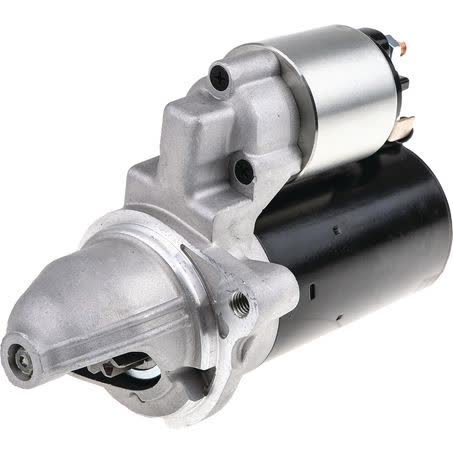

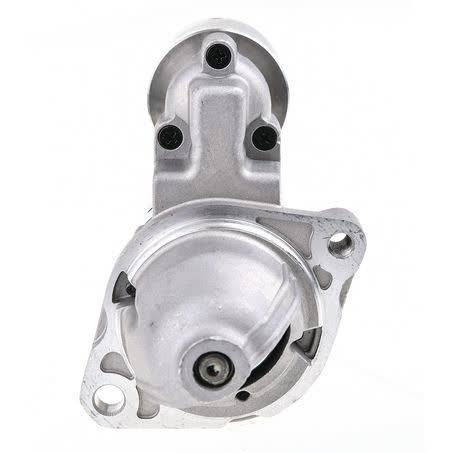

OEX Starter Motor 12V 11 Tooth CW Bosch Style BXS0194

The OEX BXS0194 is a 12V starter motor with 11 teeth, clockwise rotation and a Bosch style fitment profile. It is a new unit, rated at 2.1kW, and uses a 2 hole starter mount with 106mm mount centres.

This starter motor has a flange diameter of 76mm, an overall length of 229mm, and a pinion diameter of 34mm. The pinion at rest measures 26mm, and the mount hole diameter is listed as M10x1.5 / 11.

It is noted for automatic transmission applications with start-stop function, and the listed unit make is Bosch. The armature is dynamically balanced, which is a useful detail when matching a replacement starter to the original specification.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Bosch style unit
• New replacement starter
• Dynamically balanced armature

Specifications

• Part No.: BXS0194
• Brand: OEX
• Product type: Starter motor
• Power rating: 2.1kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole

Vehicle fitment guidance

• Listed fitment includes BMW applications.
• BMW 1 series applications are shown in the supplied fitment data.
• BMW 2 series applications are shown in the supplied fitment data.
• BMW 3 series applications are shown in the supplied fitment data.
• BMW 4 series applications are shown in the supplied fitment data.
• BMW 5 series applications are shown in the supplied fitment data.
• BMW X1 applications are shown in the supplied fitment data.
• BMW X3 applications are shown in the supplied fitment data.

Application and Buying Notes

Before ordering, check the part number BXS0194 against the original starter on the vehicle, along with the Bosch style application and the 2 hole starter mount with 106mm mount centres. Those points matter more than a vehicle badge on its own, especially where similar BMW applications can use different starter configurations.

Confirm the electrical and mechanical details match your original unit: 12V, 2.1kW, clockwise rotation, 11 teeth, 76mm flange diameter, and a 229mm overall length. The pinion diameter is 34mm and the pinion at rest is 26mm, so these measurements should line up with the removed starter before fitting.

A starter motor has to match the mounting pattern, pinion tooth count, rotation direction, and overall size to install correctly. If any of those details differ, the unit may not suit the vehicle even if the make and model appear close.

The listed warranty is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checks, so it is still best to confirm the original part number, the mounting dimensions, and the transmission or start-stop application before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0194 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Number of Teeth 11, Pinion at Rest 26mm, Power Rating 2.1kW, Suits Unit Make Bosch, Note Automatic Transmission, for vehicles with start-stop function, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0194, Brand OEX, Description OEX Starter Motor 12V 11Th CW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter M10x1.5 / 11, Overall Length 229mm, Pinion Diameter 34mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Bosch Style. Part number BXS0194 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0194, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BMW 1, BMW 1 2012, BMW 1 2013, BMW 1 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking the original part number, Bosch style application, 12V specification, 11 tooth count, clockwise rotation, 2 hole mount, 106mm mount centres, and the vehicle’s automatic transmission start-stop requirements before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is BXS0194. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 11 teeth. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, shown as CW. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The supplied fitment data includes BMW applications, including 1, 2, 3, 4, 5, X1, X3, X4 and Z4 model groups. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.

What should I check before buying this starter?

Check the part number BXS0194, 12V rating, 11 tooth count, clockwise rotation, 2 hole mount, 106mm mount centres, and the automatic transmission or start-stop application note against the original starter. For this listing, part number BXS0194 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2012, BMW 1 2013. These details should still be checked against the original unit before ordering.
