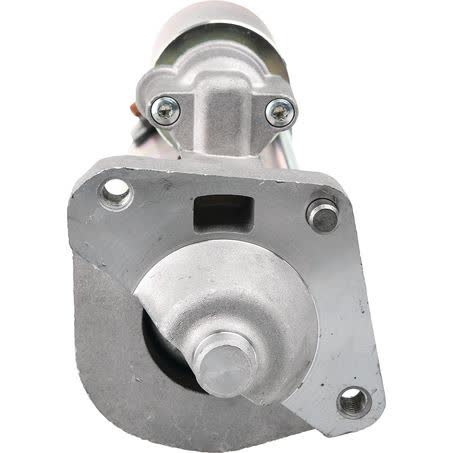

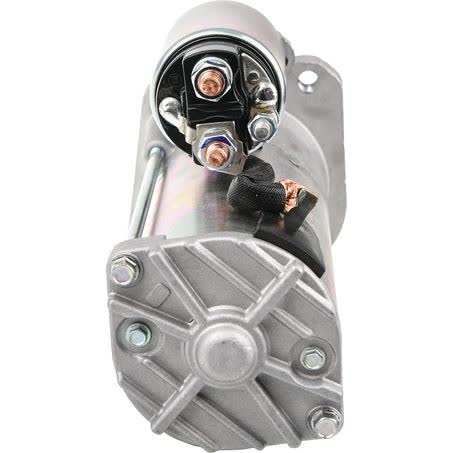

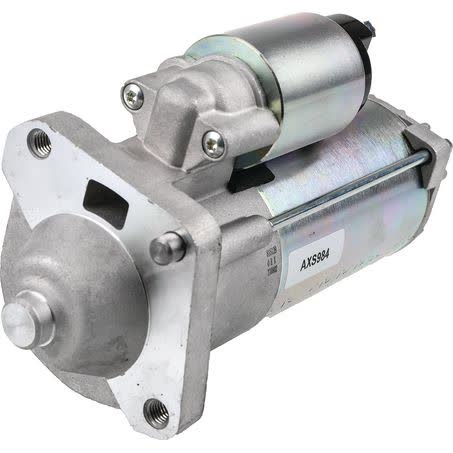

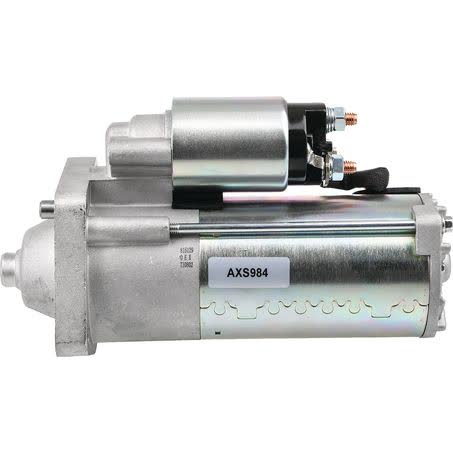

OEX Starter Motor 12V 11 Tooth CW Autolite Style AXS984

The OEX Starter Motor AXS984 is a 12V new starter motor built in an Autolite style with clockwise rotation and an 11 tooth pinion. It suits units made for Autolite applications and is listed with a 2 hole starter mount, M10x1.5 mount hole diameter, and 105mm mount centres A.

It has an overall length of 243mm, a 32mm pinion diameter, and a pinion at rest measurement of -5mm. The unit weighs 4.4kg and is supplied as a new rotating electrical component, not a remanufactured part.

Key Features

• 12V starter motor
• Autolite style unit
• Clockwise rotation (CW)
• 11 tooth pinion
• Dynamically balanced armature
• New unit

Specifications

• Part No.: AXS984
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole
• Mount hole diameter: M10x1.5

Fitment guidance

• Fitment data supplied includes Volvo applications.
• Listed makes and models include Volvo S60, Volvo S80, Volvo V40, Volvo V60, Volvo XC60 and Volvo XC70.
• Sample applications shown include Volvo S60 2010, 2011, 2012, 2013 and 2014, and Volvo V40 2012 and 2013.
• Use the part number AXS984 and the physical measurements to confirm the starter matches the vehicle’s original unit.

Application and Buying Notes

When checking this starter motor, the most useful identifiers are the part number AXS984, the 12V rating, the 11 tooth pinion, and the clockwise rotation. Those details need to line up with the original starter and the vehicle application before fitment is assumed. The mount details also matter: this unit uses a 2 hole starter mount with M10x1.5 mount holes and 105mm mount centres A.

The note for vehicles with start-stop function is important because not every 12V starter suits the same operating setup. Confirm the vehicle specification carefully, then compare the starter’s overall length of 243mm, pinion diameter of 32mm, and pinion at rest measurement of -5mm against the removed part. Even small differences in mount pattern or pinion position can stop a direct swap.

This is a new OEX unit and the listed warranty is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checks, so the safest approach is still to match the starter against the original part number and the vehicle’s application details before purchase. If the old starter is available, compare the label, mount layout, tooth count, and rotation direction side by side.

The supplied fitment references point to Volvo applications, including S60, S80, V40, V60, XC60 and XC70. That is helpful as a guide, but the exact year and engine arrangement still need checking against the vehicle and the original starter. Use the measured dimensions and Autolite style reference as practical confirmation points, not as a substitute for proper identification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS984 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5, Overall Length 243mm, Pinion Diameter 32mm, Suits Unit Make Autolite, Note For vehicles with start-stop function, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. AXS984, Brand OEX, Description OEX Starter Motor 12V 11Th CW Autolite Style, Mount Centres A 105mm, Number of Teeth 11, Pinion at Rest -5mm, Rotation CW, Voltage 12, New / Reman. New.

OEX Starter Motor 12V 11Th CW Autolite Style. Part number AXS984 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS984, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011, VOLVO S60 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number AXS984, 12V rating, 11 tooth CW rotation, Autolite style, and the mount and dimension details against the removed starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is AXS984. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is clockwise rotation, noted as CW. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 11 teeth. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What vehicles are mentioned in the fitment information?

The fitment information references Volvo applications, including S60, S80, V40, V60, XC60 and XC70. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

Does it suit vehicles with start-stop function?

Yes, it is noted for vehicles with start-stop function, but the exact application should still be confirmed against the original starter and vehicle details. For this listing, part number AXS984 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.
