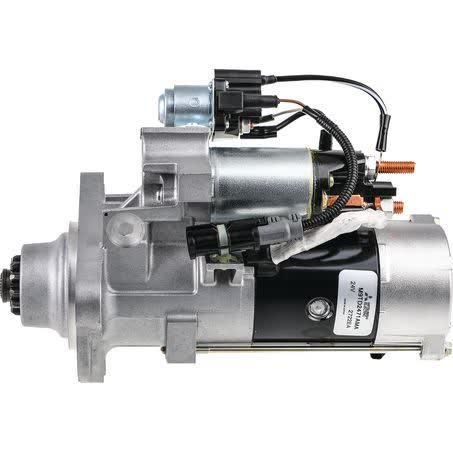

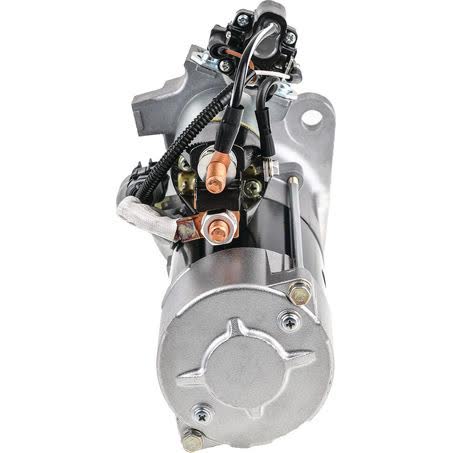

Mitsubishi Starter Motor 24V 12 Tooth CW 5.5KW M9TD2471AMA

This Mitsubishi starter motor is a new 24V unit with 12 teeth and clockwise rotation, identified by part number M9TD2471AMA. It is rated at 5.5kW and uses a 3 hole starter mount with 127mm mount centres at A, B and C, which are important checks when matching the starter to the vehicle application.

The starter has a 92mm flange diameter, 14mm mount hole diameter, an overall length of 330mm, and a pinion diameter of 44mm with 47mm pinion at rest. Those dimensions matter when confirming physical clearance, mounting alignment and pinion engagement on the existing setup.

It is listed as an OE product and supplied new, not remanufactured. The unit weighs 9.2kg and is backed by a 2 year / 400,000km warranty, which gives a clear reference point for buyers who want a replacement starter with defined specification details and service coverage.

Key Features

• New starter motor
• OE product
• 24V electrical system
• 12 tooth pinion
• Clockwise rotation
• 5.5kW power rating

Specifications

• Brand: Mitsubishi
• Product type: Starter motor
• Voltage: 24V
• Power rating: 5.5kW
• Rotation: CW
• Number of teeth: 12
• Starter mount type: 3 hole
• Mount centres A/B/C: 127mm

Fitment guidance

• Verified application groups include MAN, M.A.N., Fendt, Massey Ferguson, Diamond Reo and Sinotruk (CNHTC).
• Sample application references include MAN 19.320 IC, MAN 19.320 LE, MAN 19.360 HOCL, MAN 19.400 HOCL, MAN 26.480 HOCL, Fendt Vario, Massey Ferguson Ideal 8, Diamond Reo DR-A7, Sinotruk HOWO and Sinotruk SITRAK.
• Do not rely on the make name alone; confirm the part number and all mounting and electrical details before ordering.

Application and Buying Notes

When checking whether this starter suits your application, the first points to confirm are part number M9TD2471AMA, 24V voltage, 12 tooth drive and clockwise rotation. Those details need to match the existing unit or the specified replacement requirement, especially on heavy vehicle and agricultural applications where starter layouts can vary between models.

Physical dimensions are just as important as the electrical rating. This unit has a 3 hole mount pattern, 127mm mount centres at A, B and C, a 92mm flange diameter, 14mm mount hole diameter and 330mm overall length. If any of those measurements differ from the starter already fitted to the machine, the part should be checked carefully before purchase.

The 5.5kW power rating, 44mm pinion diameter and 47mm pinion at rest help define the starter’s operating profile and installation fit. These figures are useful when comparing against a removed starter, especially where the pinion position, housing shape or clearance around the bell housing is tight.

Because the listed fitment covers multiple makes and model families, the safest approach is to match by part number first and then confirm the dimensions against the original starter. If the vehicle is a MAN, Fendt, Massey Ferguson, Diamond Reo or Sinotruk application, check the model detail and build information rather than assuming every version uses the same starter.

This is a new unit and it is described as an OE product, which suits buyers looking for a direct replacement path with clear specification control. The 2 year / 400,000km warranty gives an added reference, but the starter still needs to be selected against the correct application details to avoid installation issues.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M9TD2471AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 127mm, Mount Centres C 127mm, Number of Teeth 12, Pinion at Rest 47mm, Power Rating 5.5kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Weight 9.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. M9TD2471AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 24V 12Th CW, Flange Diameter 92mm, Mount Centres B 127mm, Mount Hole Diameter 14, Overall Length 330mm, Pinion Diameter 44mm.

Mitsubishi Starter Motor 24V 12Th CW. Part number M9TD2471AMA should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M9TD2471AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DIAMOND REO DR-A7, DIAMOND REO DR-A7 2018, FENDT VARIO, FENDT VARIO 2014, M.A.N. D2676, M.A.N. D2676 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number M9TD2471AMA, 24V system requirements, 12 tooth CW configuration, 3 hole mount type, and all listed dimensions against the original starter and vehicle application details before ordering.

FAQ

What voltage is this starter motor?

It is a 24V starter motor.

How many teeth does the pinion have?

The pinion has 12 teeth.

What is the rotation direction?

It is clockwise rotation, noted as CW.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What is the part number?

The part number is M9TD2471AMA.

Which vehicle makes are listed in the fitment information?

The fitment information includes MAN and M.A.N., Fendt, Massey Ferguson, Diamond Reo and Sinotruk (CNHTC), with sample applications such as MAN 19.320 IC, Fendt Vario, Massey Ferguson Ideal 8, Diamond Reo DR-A7, Sinotruk HOWO and Sinotruk SITRAK.
