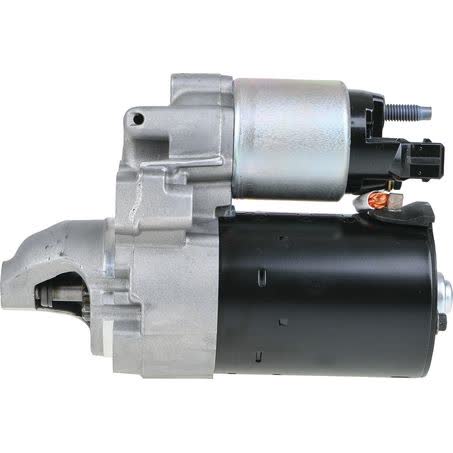

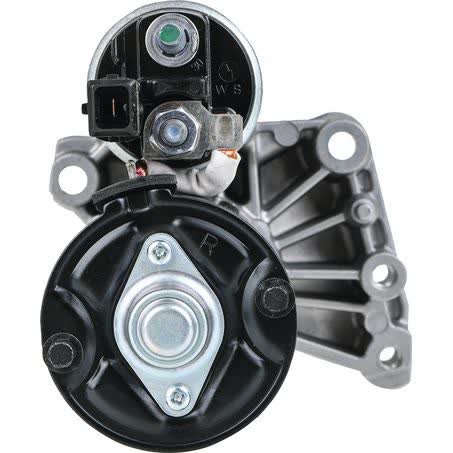

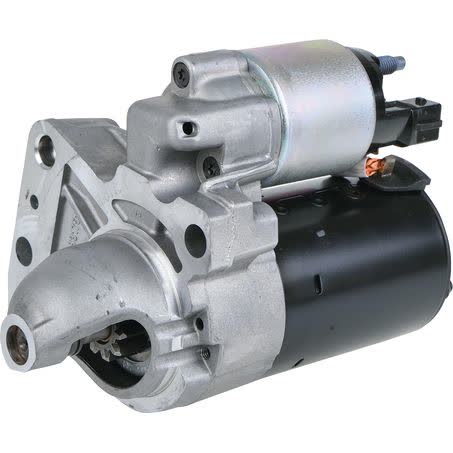

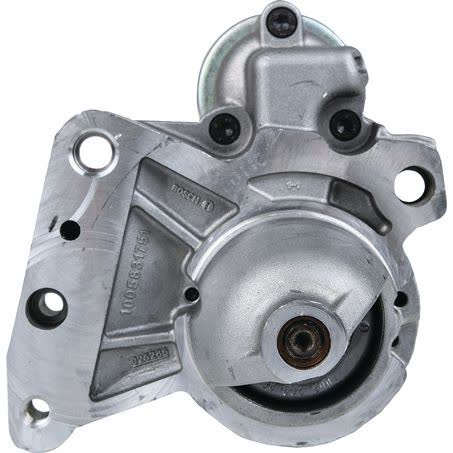

Bosch Starter Motor 12V 10 Tooth CW Part No. 1986S00652

The Bosch starter motor listed here is a 12V unit with 10 teeth, clockwise rotation, and part number 1986S00652. It is specified with a 0.9kW power rating, a 60mm flange diameter, and an overall length of 193mm, so it is important to compare those details with the original starter before ordering.

This starter uses a 2 hole mount type with 3 mounting bores, and the pinion at rest measures 13.7mm. Those dimensions matter when you are matching a replacement starter to an existing application, especially where physical space, mounting pattern, and drive engagement all need to line up.

Bosch identifies this unit as a starter motor in the rotating electrical group, packaged and sold each. The product is described as designed in fit and performance to meet OE starters, with premium starting performance and a build intended to withstand harsh environments.

The listed warranty is 12 months. Manufactured in China, this starter is a practical replacement option where the vehicle application matches the 12V, 10 tooth, clockwise configuration and the supporting dimensions are correct.

Key Features

• 12V Bosch starter motor
• 10 tooth pinion
• Clockwise rotation
• 0.9kW power rating
• 2 hole mount type
• 3 mounting bores

Specifications

• Brand: Bosch
• Part No.: 1986S00652
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 0.9kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 2 hole

Fitment guidance

• Fitment is listed for selected Citroen, Mini, and Peugeot applications.
• Citroen models shown include Berlingo, C3, C3 Aircross, C4, C4 Picasso, C5, DS 3, DS 4 / DS 4 Crossback, DS3, DS4, and DS5.
• Mini applications shown include Mini, Mini Clubman, Mini Countryman, and Mini Paceman.
• Peugeot applications shown include 2008, 207, 208, 3008, 308, 5008, 508, Partner, and RCZ.
• Model years appear in the fitment data for some applications, including Citroen Berlingo 2010, Citroen C3 2009 to 2014, Mini 2008 to 2015, and Peugeot 2008 2013 to 2020, plus Peugeot 207 2008 to 2010.
• Always match the vehicle application against the starter part number and the physical specifications before purchase.

Application and Buying Notes

When replacing a starter motor, the key checks are the part number, voltage, tooth count, rotation direction, and mounting style. For this Bosch unit, the important identifiers are 1986S00652, 12V, 10 teeth, clockwise rotation, and a 2 hole mount with 3 mounting bores.

The dimensions are also relevant. A 60mm flange diameter, 193mm overall length, and 13.7mm pinion at rest help confirm whether the starter will physically suit the engine and bellhousing arrangement. Even where a vehicle appears in the fitment list, those measurements should still be checked against the old unit.

This starter is described as designed in fit and performance to meet OE starters and built to withstand harsh environments. That is a useful indication of intended application, but the safest buying decision still comes from comparing the old starter, the part number, and the vehicle application together before ordering.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00652 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 12 Months, Number of Teeth 10, Pinion at Rest 13.7mm, Rotation CW, Starter Mount Type 2 Hole, Number of mounting bores 3, Packaging width 18, Manufactured in China.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. 1986S00652, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 60mm, Overall Length 193mm, Power Rating 0.9kW, Voltage 12, Wet / Dry Clutch Dry, Packaging length 32.5.

Bosch Starter Motor 12V 10Th CW. Part number 1986S00652 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00652, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN BERLINGO, CITROEN BERLINGO 2010, CITROEN C3, CITROEN C3 2009, MINI MINI, MINI MINI 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 12 Months. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using the Bosch part number 1986S00652, the 12V 10 tooth clockwise configuration, and the physical dimensions before purchase. Vehicle application data is listed for selected Citroen, Mini, and Peugeot models, but final compatibility should always be checked against the existing starter and vehicle details.

FAQ

What is the Bosch part number for this starter motor?

The part number listed is 1986S00652.

What voltage and rotation does this starter use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The starter is specified with 10 teeth.

What are the main mounting details?

It has a 2 hole starter mount type and 3 mounting bores.

What are the key dimensions?

The listed dimensions include a 60mm flange diameter, 193mm overall length, and 13.7mm pinion at rest.

Which vehicles are shown in the fitment data?

The fitment data includes selected Citroen, Mini, and Peugeot applications, including models such as Berlingo, C3, C3 Aircross, Mini, Mini Clubman, 2008, 207, 208, 3008, and 308.
