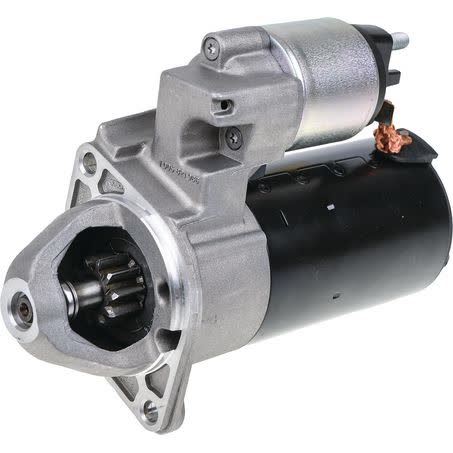

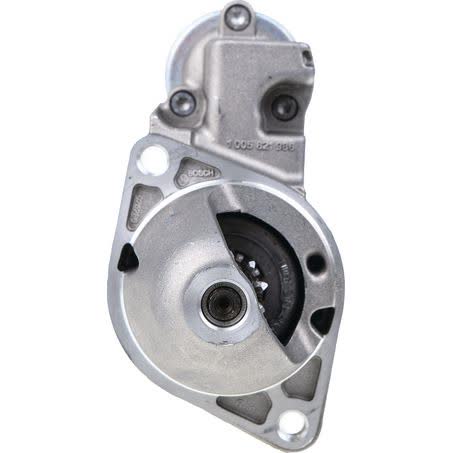

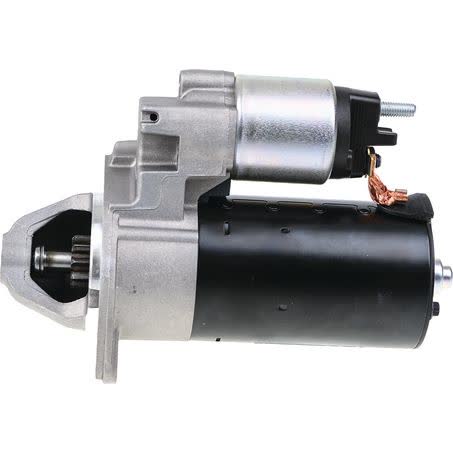

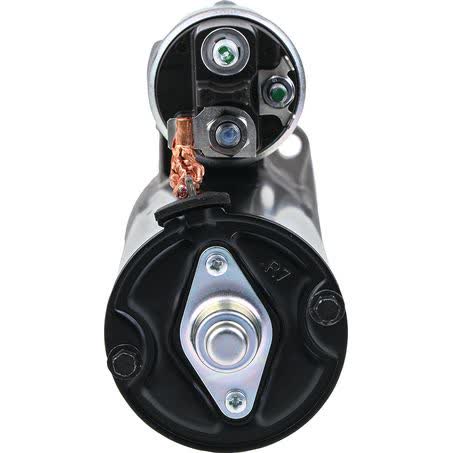

Bosch Starter Motor 12V 1.6KW 10 Tooth CW – Part No. 1986S00695

This Bosch starter motor is a 12V unit with a 1.6kW power rating, 10 teeth, and clockwise rotation (CW). It is identified by part number 1986S00695 and is listed as a 2 hole starter mount type with 2 mounting bores, which are important checks when matching it to the vehicle application.

Key dimensions supplied for this starter include a 70mm flange diameter, 8.5mm mount hole diameter, 28mm pinion diameter, and a 14mm pinion at rest. It is designed for dry clutch applications and is packaged as a single each unit.

Bosch describes this starter as built to withstand harsh environments and designed in fit and performance to meet OE starters. It is manufactured in Hungary and carries a 12 month warranty.

Key Features

• 12V Bosch starter motor
• 1.6kW power rating
• 10 tooth pinion
• Clockwise rotation (CW)
• 2 hole starter mount
• Dry clutch application

Specifications

• Brand: Bosch
• Part No.: 1986S00695
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.6kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 2 hole

Verified fitment examples

• Mercedes-Benz A-Class
• Mercedes-Benz A-Class 2004
• Mercedes-Benz A-Class 2005
• Mercedes-Benz A-Class 2006
• Mercedes-Benz A-Class 2007
• Mercedes-Benz A-Class 2008
• Mercedes-Benz A-Class 2009
• Mercedes-Benz A-Class 2010

Application and Buying Notes

Before ordering, check the part number 1986S00695 against the old unit and confirm the starter layout matches the vehicle: 12V system, 1.6kW rating, clockwise rotation, and 10 tooth pinion. Those details matter because the same vehicle range can use different starters, and the wrong tooth count or rotation will prevent proper engagement.

Also confirm the physical mounting details on the vehicle: 2 hole starter mount, 2 mounting bores, 70mm flange diameter, and 8.5mm mount hole diameter. The supplied pinion measurements are 28mm diameter and 14mm at rest, and the starter is listed for dry clutch applications only.

If you are comparing by application, the verified fitment examples supplied here include Mercedes-Benz A-Class and B-Class entries, with A-Class years shown from 2004 through 2012 and B-Class shown from 2005. Use those examples as a checking guide, but still match the exact part number and mounting details on the vehicle before purchase.

This starter is sold as one each and carries a 12 month warranty. Bosch notes it is designed in fit and performance to meet OE starters, which makes accurate identification important when replacing a worn unit rather than assuming all starters in a model range are the same.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00695 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 12 Months, Mount Hole Diameter 8.5, Pinion at Rest 14mm, Power Rating 1.6kW, Voltage 12, Wet / Dry Clutch Dry, Packaging length 28.8, Packaging height 12.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. 1986S00695, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 70mm, Number of Teeth 10, Pinion Diameter 28mm, Rotation CW, Starter Mount Type 2 Hole.

Bosch Starter Motor 12V 10Th CW. Part number 1986S00695 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00695, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005, MERCEDES-BENZ A-CLASS 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 1986S00695, 12V system details, 1.6kW rating, 10 tooth CW rotation, and the 2 hole mounting arrangement against the vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number supplied is 1986S00695. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.

What voltage and power rating does this starter have?

It is a 12V starter motor with a 1.6kW power rating. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.

What rotation is listed for this starter motor?

The starter is listed as clockwise rotation, or CW. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.

What mounting details are provided?

It is listed as a 2 hole starter mount with 2 mounting bores, a 70mm flange diameter, and 8.5mm mount hole diameter. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.

Which vehicle families are shown in the verified fitment examples?

The verified fitment examples supplied include Mercedes-Benz A-Class and Mercedes-Benz B-Class entries, with A-Class years shown from 2004 to 2012 and B-Class shown from 2005. For this listing, part number 1986S00695 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 2004, MERCEDES-BENZ A-CLASS 2005. These details should still be checked against the original unit before ordering.
