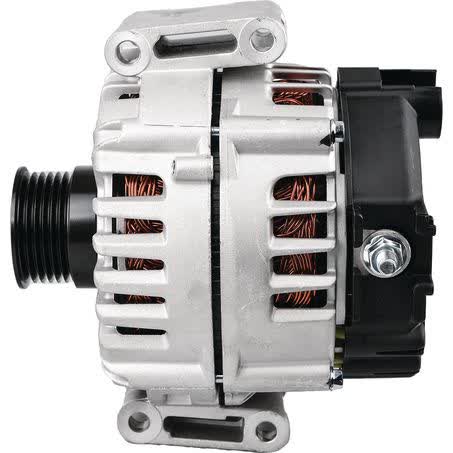

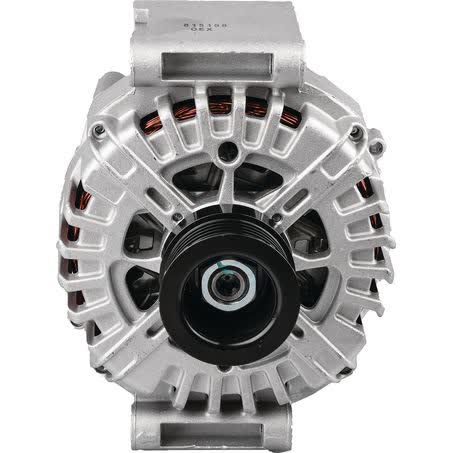

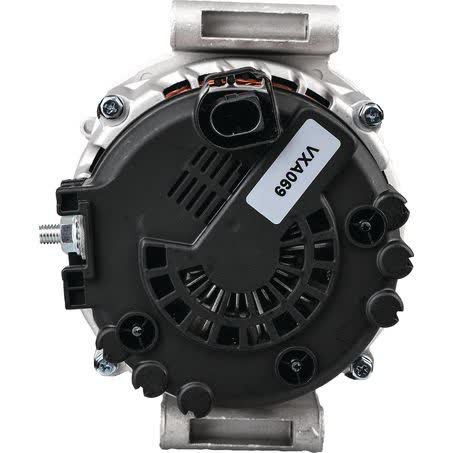

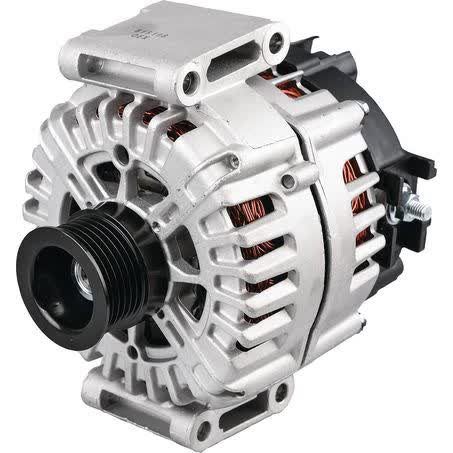

OEX Alternator 12V 180A Valeo Style VXA069

The OEX Alternator VXA069 is a 12V, 180A unit built in Valeo style for applications that use a pad-mounted alternator with a 6 groove pulley. It is a new alternator with an internal regulator, clockwise rotation, and a 50mm pulley outside diameter.

This unit is listed with a mount leg thickness of 70mm, a 56mm mount centre-to-centre dimension, and 9mm pivot and adjusting holes. Those measurements matter when you are matching the alternator to the original mounting arrangement, especially where bracket and pulley alignment must be exact.

The note on this part is important: it suits vehicles with start-stop function and automatic transmission only. Because alternator fitment can vary even within the same make and model range, the part number VXA069 and the listed mounting details should be checked against the vehicle before purchase.

Key Features

• 12V alternator with 180A output
• Valeo style unit
• New replacement alternator
• Internal regulator
• Clockwise rotation
• 6 groove pulley

Specifications

• Brand: OEX
• Part No.: VXA069
• Description: OEX Alternator 12V 180A Valeo Style
• Voltage: 12V
• Power rating: 180A
• Pulley outside diameter: 50mm
• Pulley section: 6 groove
• Rotation: CW

Verified fitment guidance

• Vehicles with start-stop function
• Automatic transmission only
• Applications listed against Mercedes-Benz ranges, including C-Class, CLS, E-Class, GLE, M-Class, Sprinter 3-T, Sprinter 5-T, Valente, Viano, Vito, and Vito / Mixto
• Also listed against 5-T applications across model years shown in the supplied fitment data

Application and Buying Notes

Before ordering, compare the part number VXA069 and the alternator style to the vehicle already fitted. The important matching points here are 12V operation, 180A output, Valeo style construction, pad mount layout, and the 6 groove pulley. If any of those do not line up with the original unit, the alternator may not suit the vehicle.

The mounting dimensions are just as important as the electrical rating. Check the 70mm mount leg thickness, 56mm mount centre-to-centre measurement, and the 9mm pivot and adjusting holes against the removed alternator or the vehicle’s mounting bracket. Those dimensions are the best guide when confirming physical interchange.

This alternator is noted for vehicles with start-stop function and automatic transmission only. That means it should not be treated as a general replacement for every vehicle in the listed model families. If the car is manual transmission, or if the existing alternator differs in pulley section, mount style, or regulator type, the fit should be confirmed before purchase.

The unit is new and weighs 7kg, which is useful when handling, comparing freight expectations, or checking that the replacement part matches the original assembly type. The stated warranty is 3 years for passenger use and 1 year for commercial use, so it is still worth verifying suitability first rather than relying on warranty to cover a mismatch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA069 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 70mm, Pivot Hole Diameter 9, Pulley Outside Diameter 50mm, Regulator Type Internal, Suits Unit Make Valeo, Note For vehicles with start-stop function - Automatic transmission only, Mount Cnt to Cnt 56mm.

Additional published details for cross-checking include Weight 7kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXA069, Brand OEX, Description OEX Alternator 12V 180A Valeo Style, Adjusting Hole Diameter 9, Pin Code IR228, Power Rating (Amp) 180, Pulley Section 6 Groove, Rotation CW.

OEX Alternator 12V 180A Valeo Style. Part number VXA069 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA069, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include 5-T 2006, 5-T 2007, 5-T 2008, 5-T 2009, MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the part number VXA069, the Valeo style designation, the 12V 180A specification, the pad mount layout, and the start-stop automatic transmission application detail before ordering.

FAQ

What is the part number for this alternator?

The part number is VXA069.

What voltage and output does this alternator have?

It is a 12V alternator with a 180A power rating.

Is this a new or remanufactured unit?

It is listed as new.

What pulley and rotation details are listed?

It has a 6 groove pulley with a 50mm outside diameter and clockwise rotation.

What mount style does it use?

It is a pad mount alternator with a 70mm mount leg thickness, 56mm mount centre-to-centre dimension, and 9mm pivot and adjusting holes.

What vehicles is it noted for?

It is noted for vehicles with start-stop function and automatic transmission only, and the supplied fitment data lists Mercedes-Benz ranges including C-Class, CLS, E-Class, GLE, M-Class, Sprinter 3-T, Sprinter 5-T, Valente, Viano, Vito, Vito / Mixto, plus 5-T applications across the years shown.
