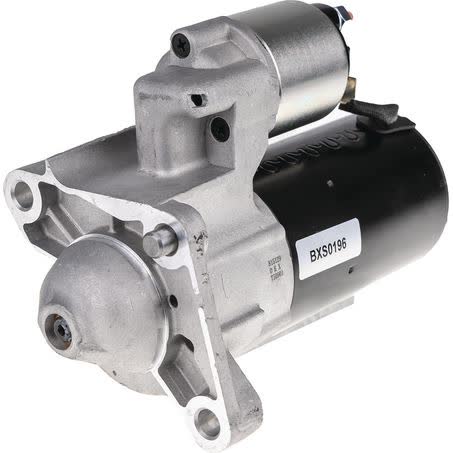

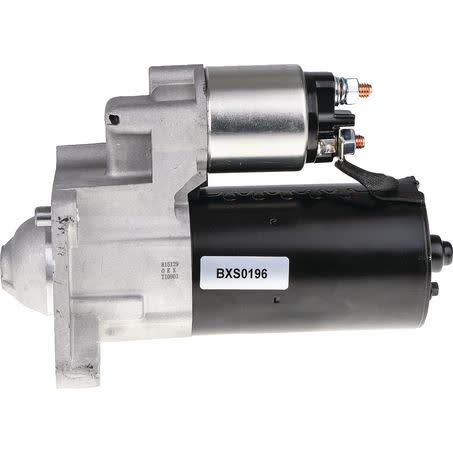

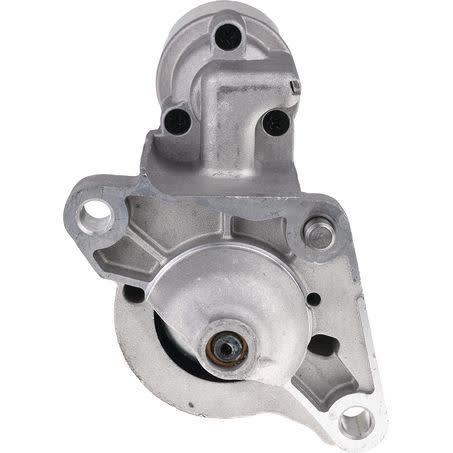

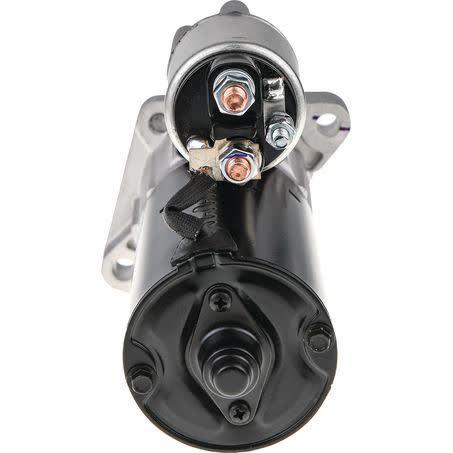

OEX Starter Motor 12V 10 Tooth CW Bosch Style BXS0196

This OEX starter motor is a new 12V unit with a 10 tooth pinion, clockwise rotation and Bosch unit make suitability. It is listed under part number BXS0196 and carries a 1.4kW power rating, which are the key identifiers to match before ordering.

The starter uses a 2 hole mount type with 105mm mount centres, a 56mm flange diameter and 10.5mm mount hole diameter. Overall length is 224mm, pinion diameter is 27mm and pinion at rest is -7mm, so physical dimensions should be checked carefully against the vehicle’s existing starter arrangement.

OEX states this product is sourced through market leading original equipment manufacturers and aftermarket suppliers, with manufacturing from ISO9001 certified factories. It is covered by a 3 year warranty for passenger use and 1 year for commercial use, which gives clear support information alongside the mechanical specifications.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Bosch style / suits Bosch unit make
• New unit
• 2 hole mount type

Specifications

• Power rating: 1.4kW
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 2 hole
• Mount centres A: 105mm
• Flange diameter: 56mm
• Mount hole diameter: 10.5mm

Verified fitment details

• VOLVO
• VOLVO S60
• VOLVO S80
• VOLVO V60
• VOLVO V70
• VOLVO XC60
• VOLVO XC70
• VOLVO XC90

Application and Buying Notes

When checking compatibility, compare the part number BXS0196 first, then confirm the starter’s Bosch style, 12V voltage, 10 tooth pinion and clockwise rotation against the vehicle’s original unit. These are the main identifiers that should line up before you proceed.

The physical measurements matter as much as the electrical rating. This starter is 224mm overall, has 105mm mount centres, a 56mm flange diameter and 10.5mm mount holes, so it should be matched carefully to the mounting points and clearance around the bellhousing area.

A 1.4kW starter can be suitable where that output is specified, but it should not be treated as interchangeable with every 12V starter. Check the existing starter’s tooth count, rotation, mount style and pinion position at rest, because a mismatch in any of those details can prevent correct installation.

For vehicles shown in the fitment listing, use the model and year details only as a guide and still confirm against the original part on the vehicle. Volvo applications can vary by engine and build specification, so the safest approach is to verify the starter’s dimensions and part number before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0196 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 10, Pinion at Rest -7mm, Power Rating 1.4kW, Suits Unit Make Bosch, New / Reman. New, Weight 3.36kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXS0196, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style, Flange Diameter 56mm, Mount Hole Diameter 10.5, Overall Length 224mm, Pinion Diameter 27mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 10Th CW Bosch Style. Part number BXS0196 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0196, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011, VOLVO S60 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number BXS0196, Bosch style application, 12V rating, 10 tooth clockwise configuration and the listed mounting dimensions against the existing starter on the vehicle before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is BXS0196. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The starter has 105mm mount centres, a 56mm flange diameter, 10.5mm mount hole diameter and a 2 hole mount type. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0196 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.
