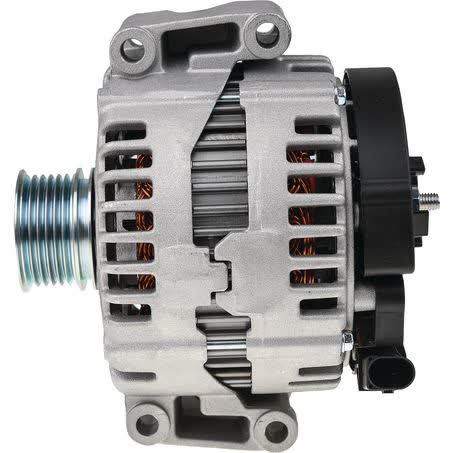

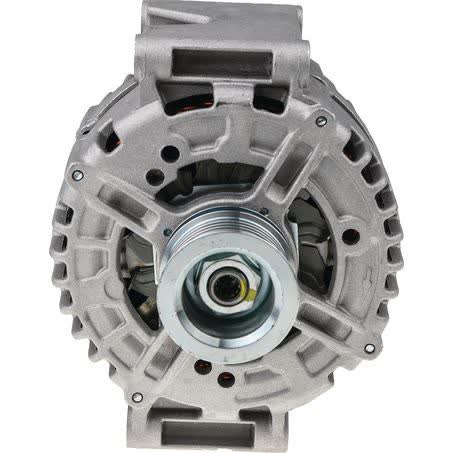

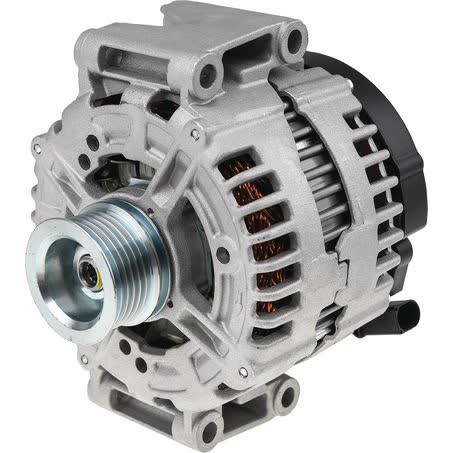

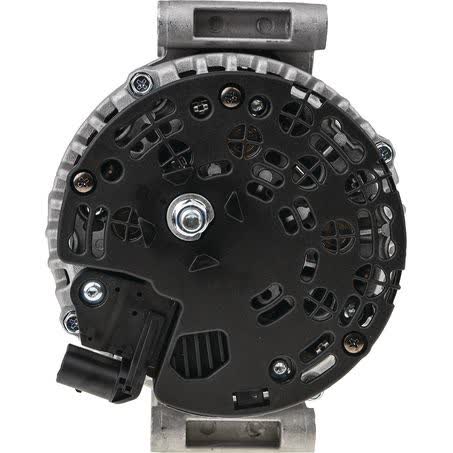

Bosch Alternator 12V 180A New 1986A00766

The Bosch Alternator 12V 180A is a new rotating electrical unit with a 180 amp charge current, 12 volt output, internal regulator, and direct fastening mount. It is identified by Part No. 1986A00766 and is supplied as a Bosch unit with a pad alternator mount and excl. vacuum pump design.

This alternator uses a 6 groove pulley with a 50mm outside diameter, CW rotation, and a 10mm mount hole diameter. The mount leg thickness is 70mm. Those details matter when checking replacement suitability, especially where pulley type, mounting style, and physical clearance need to match the original unit.

It is sold each and carries a 12 month warranty. The listed features note high quality raw materials, corrosion resistance, and a reduction drive designed to maintain continual speeds for easier starting. Weight is listed at 8.020kg, which can be useful when comparing a removed unit before installation.

Key Features

• New Bosch alternator
• 12V, 180A output
• Internal regulator
• 6 groove pulley
• CW rotation
• Direct fastening mount

Specifications

• Brand: Bosch
• Part No.: 1986A00766
• Voltage: 12V
• Charge current: 180A
• New / Reman.: New
• Regulator type: Internal
• Alternator mount: Pad
• Alternator type: excl. vacuum pump

Fitment guidance

• Fitment data includes MERCEDES-BENZ applications.
• Grouped application references include CLK, CLS, E-CLASS, G-CLASS, GL-CLASS, M-CLASS, R-CLASS, S-CLASS, and SL.
• Sample applications listed include MERCEDES-BENZ CLK 2006, CLK 2007, CLK 2008, and CLK 2009, with CLK also appearing in the grouped preview.
• The fitment information provided is limited to model families and sample years, so exact vehicle matching should still be checked against the part number and vehicle details before ordering.

Application and Buying Notes

The most important checks for this alternator are the Bosch Part No. 1986A00766, 12V system voltage, 180A charge rating, 6 groove pulley, and CW rotation. If any of those differ from the unit being replaced, stop and compare carefully before purchasing.

Mounting details are also critical. This alternator is listed with a pad mount, direct fastening type, 70mm mount leg thickness, and 10mm mount hole diameter. Those measurements affect how the unit sits in the engine bay and whether the bracket arrangement matches the vehicle.

The alternator is described as excl. vacuum pump and uses an internal regulator. That means it is not a universal replacement and should only be considered where the original unit matches those design details. Comparing the removed alternator with the listed specifications is the safest approach.

The listed weight of 8.020kg and packaging dimensions of 23.9 x 20 x 20 are useful for handling and freight planning, but they do not confirm fitment. The deciding factors remain the part number, mounting pattern, pulley configuration, and application details for the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986A00766 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Mount Leg Thickness 70mm, Power Rating (Amp) 180, Pulley Section 6 Groove, Rotation CW, Voltage 12, New / Reman. New, Fastening Type Direct fastening.

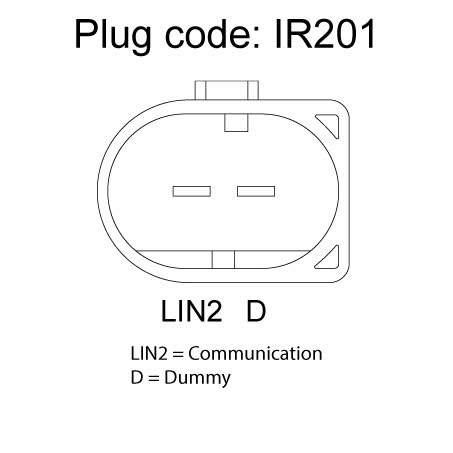

Additional published details for cross-checking include Recommended additional repairs V-Belt/V-Ribbed Belt, Packaging width 20, Manufactured in China (Taiwan), Product Group 2 ALTERNATORS, Part No. 1986A00766, Brand BOSCH, Description Bosch Alternator 12V 180A, Mount Hole Diameter 10, Pin Code IR201.

Bosch Alternator 12V 180A. Part number 1986A00766 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 1986A00766, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility by matching Bosch Part No. 1986A00766, the 12V 180A specification, 6 groove pulley, CW rotation, pad mount, and the vehicle application details before ordering. Fitment should be checked against the removed alternator and the vehicle’s charging system requirements.

FAQ

What type of part is this?

It is a Bosch alternator, supplied new, with a 12V output and 180A charge current. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.

What is the part number?

The listed Bosch part number is 1986A00766. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.

What pulley and rotation details are listed?

It has a 6 groove pulley with a 50mm outside diameter and CW rotation. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the fitment information?

The fitment information includes MERCEDES-BENZ model families such as CLK, CLS, E-CLASS, G-CLASS, GL-CLASS, M-CLASS, R-CLASS, S-CLASS, and SL, with sample CLK applications shown for 2006 to 2009. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.

Is there a warranty?

Yes. The alternator carries a 12 month warranty. For this listing, part number 1986A00766 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include MERCEDES-BENZ CLK, MERCEDES-BENZ CLK 2006, MERCEDES-BENZ CLK 2007. These details should still be checked against the original unit before ordering.
