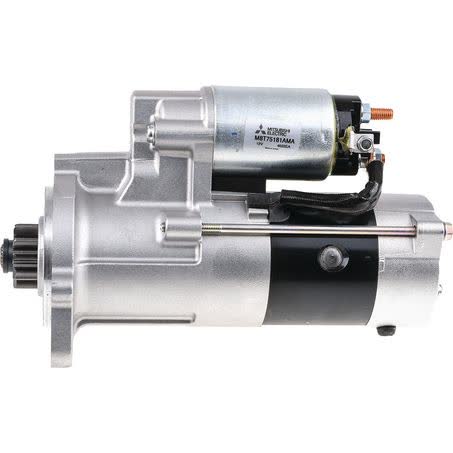

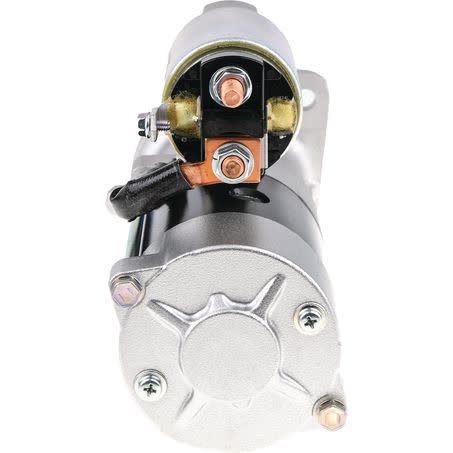

Mitsubishi Starter Motor 12V 10 Tooth CW M8T75181AMA

This Mitsubishi starter motor is a new 12V unit with clockwise rotation, 10 teeth and a 2.2kW power rating. It is listed as an Original Equipment part and carries part number M8T75181AMA, which makes it important to match against the application rather than relying on appearance alone.

Key dimensions are provided for checking fit before purchase: 115mm mount centres, 82mm flange diameter, 11mm mount hole diameter, 258mm overall length and a 38mm pinion diameter. The pinion at rest is 23mm, and the starter uses a 2-hole mount type.

The unit is supplied as each and weighs 5.84kg. Warranty coverage is listed at 2 years or 400,000km, which gives a clear reference point for buyers wanting a replacement starter motor with defined service expectations.

This listing suits buyers who need a Mitsubishi-branded starter motor for the correct application and want the part number, electrical rating and mounting dimensions recorded before ordering. The most useful identifiers here are the 12V system, 10-tooth pinion, CW rotation and part number M8T75181AMA.

Key Features

• Original Equipment part
• New starter motor
• 12V electrical system
• 10-tooth pinion
• Clockwise rotation
• 2.2kW power rating

Specifications

• Voltage: 12V
• Power rating: 2.2kW
• Rotation: CW
• Number of teeth: 10
• Mount centres A: 115mm
• Flange diameter: 82mm
• Mount hole diameter: 11mm
• Overall length: 258mm

Known fitment references

• CASE IH Farmall
• Caterpillar 302.5
• Caterpillar 303.5CCR
• Caterpillar 303.5DCR
• Caterpillar 303CCR
• Caterpillar 303CR
• Caterpillar 304.E2 CR
• Caterpillar 304C

Application and Buying Notes

For starter motors, the safest purchase decision is to match the part number M8T75181AMA first, then confirm the electrical and mounting details. This unit is 12V with clockwise rotation, a 10-tooth pinion and a 2-hole mount, so those points should line up with the vehicle or machine application before fitment is assumed.

The recorded dimensions are useful when comparing the old starter against this replacement. Check the 115mm mount centres, 82mm flange diameter, 11mm mount hole diameter and 258mm overall length, as well as the 38mm pinion diameter and 23mm pinion at rest measurement. Those figures help confirm whether the starter will physically locate and engage as intended.

The fitment references include a range of industrial and equipment applications, including CASE IH, Caterpillar, Clark, Genie, Hyundai Construction, Ingersoll-Rand, Mitsubishi Industrial, New Holland, Nissan Industrial, Terex O&K and Yale. Because starter applications can vary within a model line, it is still important to compare the listed specifications against the removed unit rather than ordering from the model name alone.

As this is a new Original Equipment part, it is intended for direct replacement where the dimensions, tooth count, rotation and mounting style match. If the existing starter has been repaired, altered or replaced previously, take time to verify the visible measurements on the vehicle or machine, since the correct application should always be confirmed by both the part number and the physical details.

The 2.2kW rating is a useful reference when checking that the replacement matches the intended electrical specification. If the original unit shows a different tooth count, rotation direction or mounting arrangement, do not rely on close similarity; these starters need the correct combination of 12V, 10 teeth, CW rotation and mounting dimensions to suit the application properly.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M8T75181AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 115mm, Number of Teeth 10, Pinion at Rest 23mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, New / Reman. New, Weight 5.84kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. M8T75181AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 12V 10Th CW, Flange Diameter 82mm, Mount Hole Diameter 11, Overall Length 258mm, Pinion Diameter 38mm, Rotation CW, Voltage 12.

Mitsubishi Starter Motor 12V 10Th CW. Part number M8T75181AMA should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M8T75181AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE IH FARMALL, CASE IH FARMALL 2012, CATERPILLAR 302.5, CATERPILLAR 302.5 1999, CATERPILLAR 302.5 2000, CATERPILLAR 302.5 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 2 Years 400,000km. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number M8T75181AMA, then verify the 12V specification, 10-tooth CW configuration and mounting dimensions against the removed starter and the application details.

FAQ

What is the part number for this starter motor?

The part number listed is M8T75181AMA.

Is this a new or remanufactured starter?

It is listed as new.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The starter has 10 teeth.

What are the main mounting measurements?

The listed mounting details are 115mm mount centres, 82mm flange diameter, 11mm mount hole diameter and a 2-hole starter mount type.

What warranty is provided?

The warranty is listed as 2 years or 400,000km.
