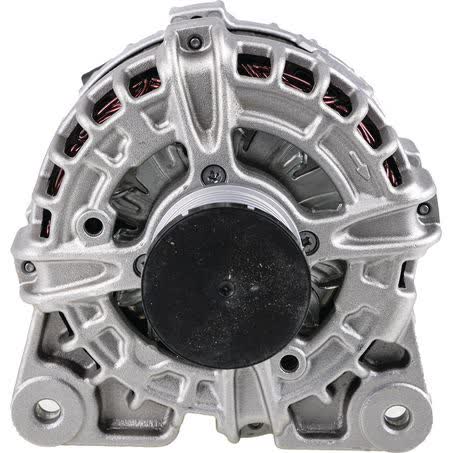

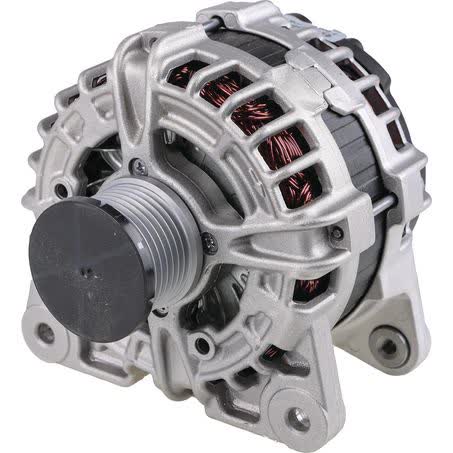

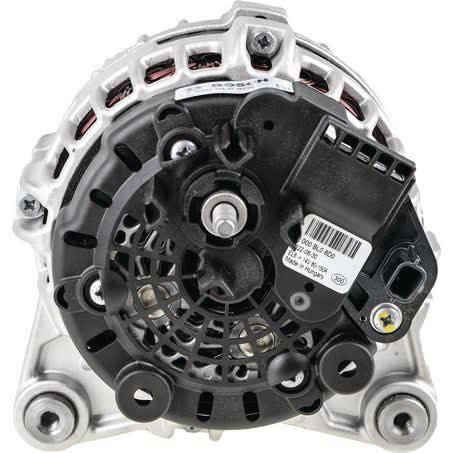

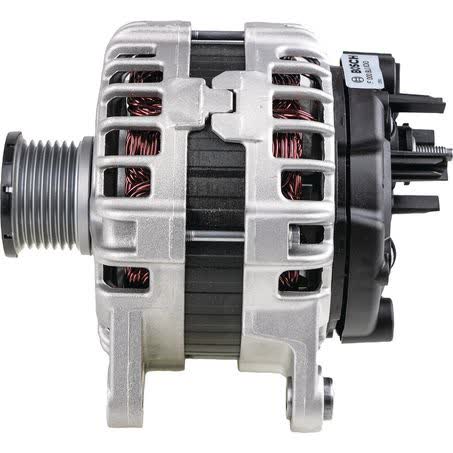

Bosch Alternator 12V 150A F000BL08D0

The Bosch Alternator 12V 150A, part number F000BL08D0, is a new OE product in the rotating electrical range. It is rated at 150 amps and 12 volts, with an internal regulator and a quad leg alternator mount, so the electrical and mounting details can be checked against the original unit before ordering.

This alternator uses a 7 groove pulley with a 49 mm outside diameter, 60 mm inside mounting legs, and M8x1.25 pivot and adjusting hole threads with 9 mm holes. The mount centre-to-centre measurement is 128 mm, which is a useful confirmation point when comparing to the existing alternator.

Manufactured in Hungary and sold as an each unit, it carries a one year warranty. The listed recommended additional repair item is the V-belt or V-ribbed belt, which is worth checking at the same time if the belt has wear, cracking, or glazing.

Because fitment data is not supplied here, the safest buying approach is to match the Bosch part number F000BL08D0, the 12V 150A rating, and the mounting and pulley measurements against the vehicle’s original alternator and belt layout before purchase.

Key Features

• New Bosch OE product
• 12V 150A output
• Internal regulator
• 7 groove pulley
• Quad leg alternator mount
• One year warranty

Specifications

• Brand: Bosch
• Part number: F000BL08D0
• Product type: Alternator
• Voltage: 12V
• Charge current: 150A
• Regulator type: Internal
• Mount type: Quad leg
• Inside mounting legs: 60 mm

Application and Buying Notes

The most reliable way to confirm this alternator is to compare the Bosch part number F000BL08D0 with the unit already fitted to the vehicle. The alternator is a 12V, 150A Bosch OE product, so both the charging output and the brand-specific mount style need to align with the original assembly.

The mounting pattern matters just as much as the electrical rating. This unit is listed with a quad leg alternator mount, 60 mm inside mounting legs, 128 mm mount centre to centre, and M8x1.25 pivot and adjusting hole threads. Those dimensions should be checked carefully against the existing alternator before ordering, particularly where the mounting bracket is not identical across applications.

The pulley specification is also important. This alternator uses a 7 groove pulley with a 49 mm outside diameter, so it should be matched to the belt type already on the vehicle. The listed additional repair item is the V-belt or V-ribbed belt, which may be worth inspecting if the old belt is worn, glazed, or noisy.

A correct-looking alternator can still be wrong if the pulley count, mount style, or regulator type differs from the original. This unit has an internal regulator, so the charging system configuration needs to suit that arrangement. If you are unsure, remove the old alternator details first and compare the part number, mounting points, and pulley setup side by side.

For a straightforward parts check, use the part number, 12V rating, 150A output, and the physical dimensions together rather than relying on appearance alone. That approach is especially important when ordering rotating electrical parts, as small differences in mount spacing or pulley design can affect installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number F000BL08D0 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 60mm, Power Rating (Amp) 150, Pulley Section 7 Groove, Suits Unit Make Bosch, Alternator Mount Quad Leg, New / Reman. New, Recommended additional repairs V-Belt/V-Ribbed Belt.

Additional published details for cross-checking include Packaging width 20, Manufactured in Hungary, Product Group 1 ROTATING ELECTRICAL, Part No. F000BL08D0, Brand BOSCH, Description Bosch Alternator 12V 150A, Adjusting Hole Diameter M8x1.25 / 9, Pivot Hole Diameter M8x1.25 / 9, Pulley Outside Diameter 49mm, Regulator Type Internal.

Bosch Alternator 12V 150A. Part number F000BL08D0 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number F000BL08D0, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 150 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Please confirm fitment by matching Bosch part number F000BL08D0, 12V 150A output, quad leg mount details, and the pulley and hole measurements against the existing alternator and vehicle application before ordering.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What is the voltage and output rating?

It is a 12V alternator with a 150A charge current rating.

What part number should I match?

The listed part number is F000BL08D0.

What pulley setup does it use?

It has a 7 groove pulley with a 49 mm outside diameter.

What mounting details are listed?

The alternator has a quad leg mount, 60 mm inside mounting legs, a 128 mm mount centre to centre measurement, and M8x1.25 / 9 pivot and adjusting holes.

Is fitment guaranteed from this listing alone?

No. Fitment is not verified here, so the part number, mounting pattern, pulley type, and vehicle application should all be checked against the existing unit before purchase.
