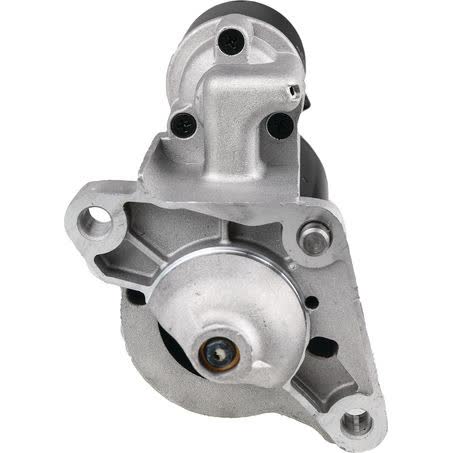

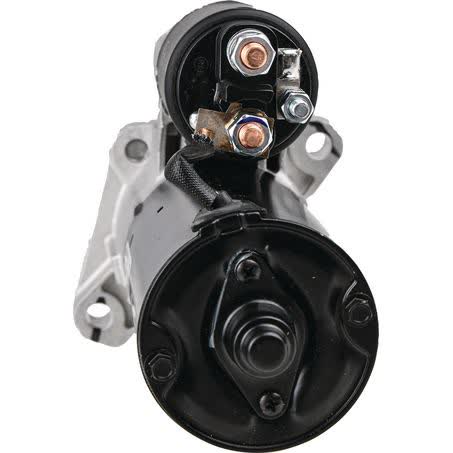

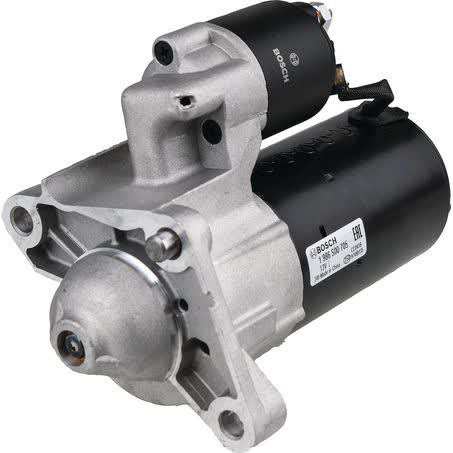

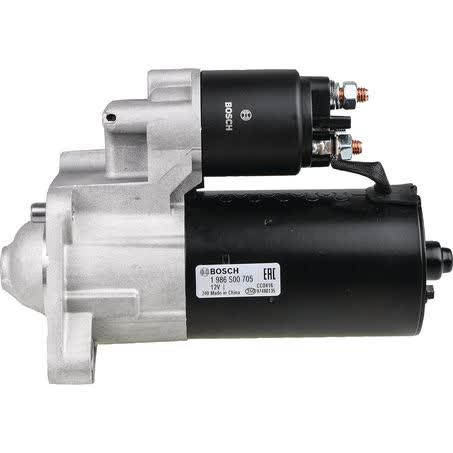

Bosch Starter Motor 12V 10 Tooth CW 1.4KW Part No. 1986S00705

The Bosch Starter Motor 12V 10 Tooth CW is a new starter motor for rotating electrical applications, supplied as an each unit under part number 1986S00705. It is rated at 1.4kW and uses 12V operation, with clockwise rotation and a 10-tooth pinion.

This unit is listed as an Original Equipment part and suits Bosch applications. Key physical checks include a 115mm mount centres measurement, 56mm flange diameter, 225mm overall length, and 27mm pinion diameter. The starter mount type is 2 hole, with 3 mounting bores and a 10mm mount hole diameter.

For buyers comparing starter motors, the practical details matter as much as the electrical rating. Pinion at rest is -7.2mm, which can be useful when matching the starter against the vehicle application, while the one year warranty gives a clear service period on a new part.

This Bosch starter motor is packaged with dimensions of 32.5 x 18 x 13.9 and manufactured in China. If you are replacing an existing unit, matching the part number, tooth count, rotation, mounting pattern, and main dimensions is the safest way to avoid ordering the wrong starter.

Key Features

• Original Equipment part
• New starter motor
• 12V operation
• 1.4kW power rating
• 10-tooth pinion
• Clockwise rotation

Specifications

• Brand: Bosch
• Part No.: 1986S00705
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 10
• Mount centres A: 115mm

Verified fitment details

• Volvo S60
• Volvo S80
• Volvo V60
• Volvo V70
• Volvo XC60
• Volvo XC70
• Volvo XC90

Application and Buying Notes

Before ordering, compare the part number 1986S00705 with the unit you are replacing, then check the electrical and mounting details against the vehicle. The important matching points here are 12V, 1.4kW, CW rotation, 10 teeth, 115mm mount centres, and the 56mm flange diameter.

The starter mount type is 2 hole and the unit has 3 mounting bores with a 10mm mount hole diameter. Those dimensions need to line up with the existing starter and the vehicle mounting arrangement, especially where access is tight or the original starter has been replaced previously.

Pinion at rest is listed at -7.2mm, and the overall length is 225mm. Those figures can help confirm the replacement against the physical space available and the engagement position needed for the application.

This part is listed against Volvo applications including S60, S80, V60, V70, XC60, XC70, and XC90. Even where the model name matches, year, engine, and build detail still need to be checked because starter fitment can vary within a model range.

If you are replacing a Bosch starter, the Bosch brand match and Original Equipment part designation are useful indicators, but they do not replace a direct check of the part number and mount measurements. Confirm the old unit’s markings and compare the key dimensions before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00705 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 115mm, Number of Teeth 10, Pinion at Rest -7.2mm, Power Rating 1.4kW, Suits Unit Make Bosch, New / Reman. New, Number of mounting bores 3.

Additional published details for cross-checking include Packaging width 18, Manufactured in China, Product Group 1 ROTATING ELECTRICAL, Part No. 1986S00705, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 56mm, Mount Hole Diameter 10, Overall Length 225mm, Pinion Diameter 27mm.

Bosch Starter Motor 12V 10Th CW. Part number 1986S00705 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00705, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number 1986S00705, 12V electrical specification, 10-tooth CW configuration, and the listed mounting and dimension details against the vehicle application before ordering.

FAQ

What is the part number for this Bosch starter motor?

The part number is 1986S00705. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What voltage and power rating does it have?

It is a 12V starter motor with a 1.4kW power rating. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What rotation and tooth count does it use?

It is clockwise rotation and has 10 teeth. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

Which vehicle applications are listed for this starter motor?

Listed applications include Volvo S60, S80, V60, V70, XC60, XC70, and XC90. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check part number 1986S00705, 12V, 1.4kW, CW rotation, 10 teeth, mount centres A of 115mm, 56mm flange diameter, 225mm overall length, and the 2 hole starter mount type. For this listing, part number 1986S00705 is the main reference point. Listed voltage is 12. Published fitment references include VOLVO S60, VOLVO S60 2010, VOLVO S60 2011. These details should still be checked against the original unit before ordering.
