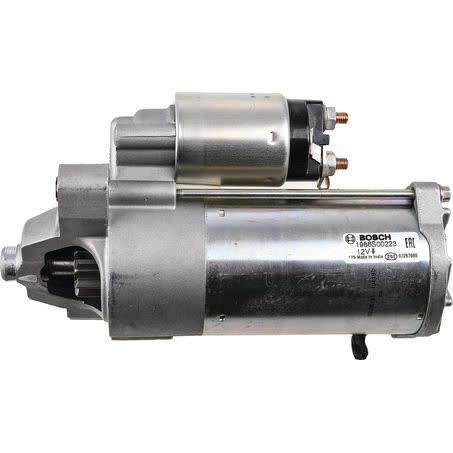

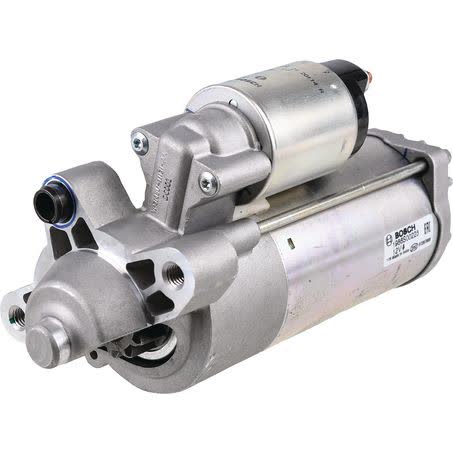

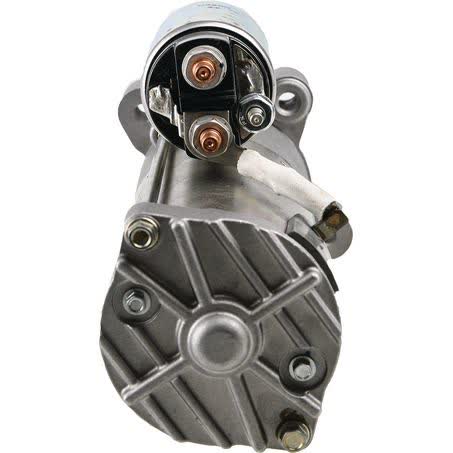

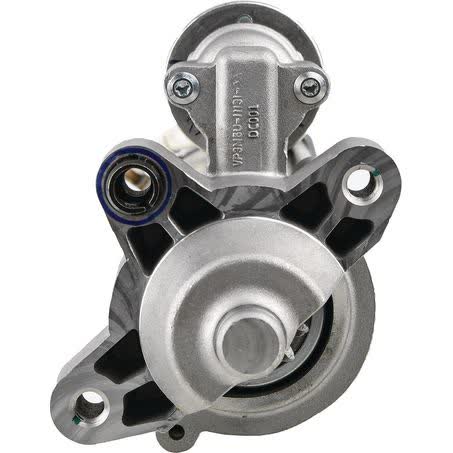

Bosch Starter Motor 12V 11 Tooth CW 2.2KW Part No. 1986S00223

This Bosch starter motor is a new 12V unit with 11 teeth, clockwise rotation, and a 2.2kW power rating. It is listed as part number 1986S00223 and is supplied as an Original Equipment part.

The starter uses a 3-hole mount style with a 63mm flange diameter, 103mm mount centres A, 66mm mount centres B, and 66mm mount centres C. The mount hole thread is M10x1.5, and the overall length is 243mm.

Key dimensions matter with starter motors, especially when matching the flange, mounting pattern, pinion position, and rotation. This unit is described as Bosch, new, and made in India, with a one year warranty.

If you are replacing a starter in a vehicle that uses this style of Bosch unit, the most reliable checks are the part number, the 12V electrical setup, the 11-tooth pinion, and the clockwise rotation. These details are the best starting point before comparing the physical measurements against the original part.

Key Features

• Original Equipment part
• New starter motor
• 12V unit
• 11-tooth pinion
• Clockwise rotation
• 3-hole mount style

Specifications

• Part number: 1986S00223
• Voltage: 12V
• Power rating: 2.2kW
• Rotation: CW
• Number of teeth: 11
• Pinion at rest: -6mm
• Pinion diameter: 36mm
• Flange diameter: 63mm

Fitment guidance

• Ford Focus
• Ford Kuga
• Ford Mondeo
• Volvo C30
• Volvo S40
• Volvo V50

Application and Buying Notes

Before ordering, compare the part number 1986S00223 with the starter currently fitted to the vehicle. The 12V supply, 11-tooth pinion, clockwise rotation, 63mm flange diameter, and 243mm overall length are all important checks when confirming a replacement starter motor.

The mounting pattern also needs to line up correctly. This unit has a 3-hole mount style, 103mm mount centres A, 66mm mount centres B, 66mm mount centres C, and an M10x1.5 mount hole diameter. If any of these measurements differ from the existing starter, the unit may not be the correct match.

Pinion position is another practical check. The pinion at rest is listed at -6mm, and the pinion diameter is 36mm. These are useful reference points when comparing against the removed starter, particularly where access is tight and there is limited room for trial fitting.

The listed application range includes Ford Focus, Ford Kuga, Ford Mondeo, Volvo C30, Volvo S40, and Volvo V50. Even where a model name appears in the application coverage, it is still best practice to confirm the exact engine and starter specification by part number and dimensions rather than relying on model name alone.

This is a Bosch starter motor sold as a new component and covered by a one year warranty. For buyers replacing an existing Bosch unit, matching the Bosch application details and the physical mounting measurements is the safest way to reduce the risk of ordering the wrong part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00223 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 103mm, Mount Centres C 66mm, Number of Teeth 11, Pinion at Rest -6mm, Power Rating 2.2kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Number of mounting bores 0, Packaging width 19.4, Manufactured in India, Product Group 1 ROTATING ELECTRICAL, Part No. 1986S00223, Brand BOSCH, Description Bosch Starter Motor 12V 11Th CW, Flange Diameter 63mm, Mount Centres B 66mm, Mount Hole Diameter M10x1.5.

Bosch Starter Motor 12V 11Th CW. Part number 1986S00223 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00223, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number 1986S00223, 12V system voltage, clockwise rotation, 11 teeth, and the mounting measurements before purchase. Vehicle model names are only a guide and should be checked against the removed starter and application details.

FAQ

What is the part number for this starter motor?

The part number is 1986S00223. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is clockwise rotation, listed as CW. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the application coverage?

The listed application coverage includes Ford Focus, Ford Kuga, Ford Mondeo, Volvo C30, Volvo S40, and Volvo V50. Fitment should still be confirmed against the part number and mounting measurements. For this listing, part number 1986S00223 is the main reference point. Listed voltage is 12. Published fitment references include FORD FOCUS, FORD FOCUS 2007, FORD FOCUS 2008. These details should still be checked against the original unit before ordering.
