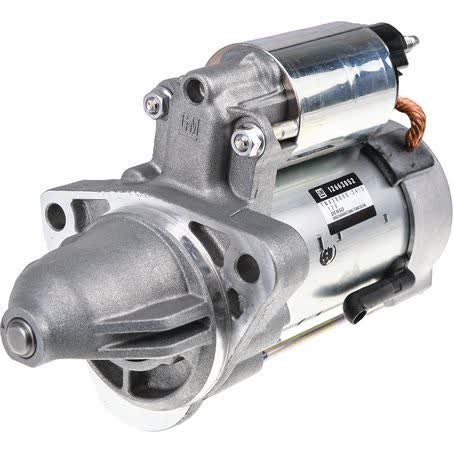

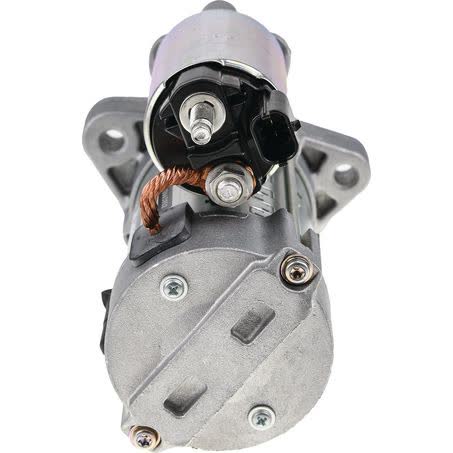

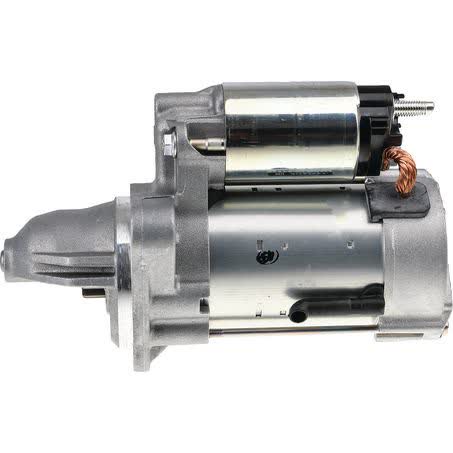

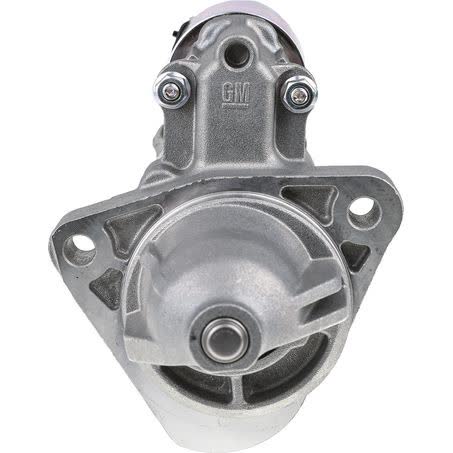

Genuine Starter Motor 12V 15T CW 1.6KW Part No. 12663052

This Genuine Starter Motor is a new 12V passenger unit with 15 teeth, clockwise rotation and a 1.6kW power rating. It is listed as an OE product and carries part number 12663052, so it is intended for buyers who need to match the existing starter specification rather than guess from appearance alone.

Key physical details include a 2-hole starter mount, 94mm mount centres, a 75mm flange diameter and a 10mm mount hole diameter. The overall length is 219mm, the pinion at rest measures 24mm, and the unit weighs 3.5kg. These dimensions matter when checking that the replacement will sit correctly in the vehicle and align with the existing mounting arrangement.

This starter is marked as suits unit make Denso and is supplied new, not remanufactured. If you are replacing a starter motor on a vehicle with a matching Denso application, the best buying practice is to compare the part number, tooth count, rotation, voltage and mounting dimensions before ordering.

Key Features

• Genuine Products OE starter motor
• 12V passenger vehicle starter
• 15-tooth pinion
• Clockwise rotation
• 1.6kW power rating
• New unit

Specifications

• Part No.: 12663052
• Voltage: 12V
• Rotation: CW
• Number of teeth: 15
• Power rating: 1.6kW
• Starter mount type: 2 hole
• Mount centres A: 94mm
• Flange diameter: 75mm

Fitment guidance

• HOLDEN: COMMODORE, COMMODORE 2017, COMMODORE 2018, COMMODORE 2019, COMMODORE 2020

Application and Buying Notes

Before ordering, match the part number 12663052 against the starter already in the vehicle or against the vehicle parts listing you are using. For starter motors, a close visual match is not enough on its own. Tooth count, rotation direction, voltage and mounting dimensions all need to line up for the replacement to be suitable.

This unit is 12V, clockwise rotating, 15-tooth and built with a 2-hole mount, 94mm mount centres and a 10mm mount hole diameter. Those details are especially important if you are comparing it with an existing Denso starter, because the mounting pattern and pinion specification are part of the correct application, not just the external shape.

The listed 1.6kW rating, 219mm overall length and 24mm pinion-at-rest measurement are useful checks when confirming physical compatibility. If your original starter differs in any of those dimensions, pause and verify the application rather than forcing a match. A starter should fit cleanly and engage correctly without modification.

The supplied fitment information points to Holden Commodore applications, including model years 2017, 2018, 2019 and 2020 in the grouped preview. That is a useful guide, but it should still be confirmed against the exact vehicle details and the part number before purchase, particularly where engine or build variations may exist.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 12663052 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR PASSENGER, Unit of Measure EACH, Warranty One Year, Mount Centres A 94mm, Number of Teeth 15, Pinion at Rest 24mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. 12663052, Brand GENUINE PRODUCTS, Description Genuine Starter Motor 12V 15Th CW, Flange Diameter 75mm, Mount Hole Diameter 10, Overall Length 219mm, Power Rating 1.6kW, Suits Unit Make Denso, New / Reman. New.

Genuine Starter Motor 12V 15Th CW. Part number 12663052 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 12663052, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor passenger in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018, HOLDEN COMMODORE 2019. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number 12663052, 12V clockwise rotation, 15 teeth, 2-hole mount, 94mm mount centres and the vehicle application details before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

The starter motor is 12V. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What is the part number?

The listed part number is 12663052. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, shown as CW. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What mounting details should I check before buying?

Check the 2-hole mount type, 94mm mount centres, 75mm flange diameter and 10mm mount hole diameter against your existing unit. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What vehicle fitment information is provided?

The provided fitment preview references Holden Commodore applications, including 2017, 2018, 2019 and 2020 model years, but the exact vehicle and part number should still be confirmed before purchase. For this listing, part number 12663052 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.
