OEX Alternator 12V 120A Denso Style DXA433HO

The OEX Alternator DXA433HO is a 12V, 120A unit in Denso style, supplied new and listed with an internal regulator. It is identified as part number DXA433HO and is specified with a fixed pulley, AA pulley section, and clockwise rotation.

This alternator is described as an upgrade from an original 110A unit to 120A high output, with cable and fuse included for the upgrade. The unit is shown as suitable for Denso applications and is listed for Toyota LandCruiser 4.2L 1HD use.

For buyers replacing a charging system component, the important checks here are the 12V system voltage, 120A output rating, single leg alternator mount, 165mm centre-to-centre mount spacing, and the M8x1.25 adjusting hole. Those details matter when comparing the old unit to the replacement.

The listed weight is 6.08kg and the pulley outside diameter is 76mm. The unit is a rotating electrical component sold each, with a 3yr passenger / 1yr commercial warranty listed for the part.

Key Features

• 12V alternator with 120A output
• Denso style, suits Denso unit applications
• New unit, not remanufactured
• Internal regulator
• Fixed pulley with AA section
• Cable and fuse included for upgrade

Specifications

• Part number: DXA433HO
• Brand: OEX
• Product type: Alternator
• Power rating: 120A
• Voltage: 12V
• Rotation: Clockwise (CW)
• Pulley type: Fixed
• Pulley section: AA

Fitment information provided

• Toyota LandCruiser
• Toyota LandCruiser 1990
• Toyota LandCruiser 1991
• Toyota LandCruiser 1992
• Toyota LandCruiser 1993
• Toyota LandCruiser 1994
• Toyota LandCruiser 1995
• Toyota LandCruiser 1996

Application and Buying Notes

Before ordering, compare the replacement unit against the part number DXA433HO, the Denso style casing, and the mounting dimensions. The key physical checks are the single leg alternator mount, 165mm mount centre-to-centre, 58mm mount leg thickness, 10mm pivot hole, and M8x1.25 adjusting hole.

The electrical side also needs to match the vehicle. This alternator is 12V with a 120A output and an internal regulator, so it is intended to replace a compatible 12V charging system rather than a different regulator setup or output level.

If you are changing over from an original 110A alternator, this unit is listed as a 120A high output upgrade. The included cable and fuse are relevant to that upgrade, but they should still be checked against the vehicle’s existing wiring and installation requirements before fitting.

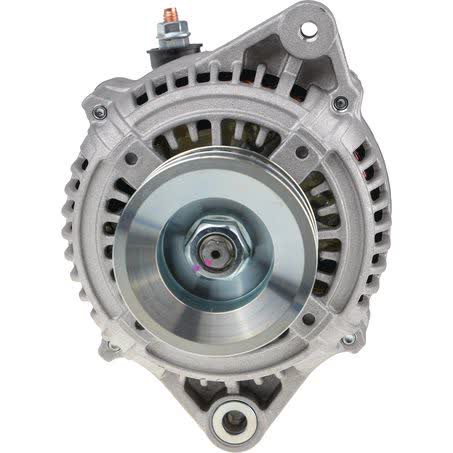

Pulley details are another important cross-check. This unit uses a fixed pulley with AA section and a 76mm outside diameter, so the belt and pulley arrangement should be compared carefully with the vehicle already in service.

The supplied fitment list references Toyota LandCruiser applications, including LandCruiser 4.2L 1HD. As with any alternator purchase, the safest approach is to confirm the part number, mount style, pulley configuration, and charging system details on the existing unit before completing the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA433HO helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Adjusting Hole Diameter M8x1.25, Pin Code IR11, Power Rating (Amp) 120, Pulley Section AA, Rotation CW, Voltage 12, Mount Cnt to Cnt 165mm.

Additional published details for cross-checking include Weight 6.08kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXA433HO, Brand OEX, Description OEX Alternator 12V 120A Denso Style, Pulley Type Fixed, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 76mm, Regulator Type Internal.

OEX Alternator 12V 120A Denso Style. Part number DXA433HO should be checked first. Listed voltage is 12. Listed output rating is 120. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA433HO, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm compatibility by matching part number DXA433HO, 12V system voltage, 120A output, Denso style form, and the stated mount and pulley dimensions against the vehicle already fitted.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with a 120A power rating. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

Does it suit Denso applications?

Yes. It is listed as Denso style and suits unit make Denso. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The listed mount details are single leg alternator mount, 165mm centre-to-centre, 58mm mount leg thickness, 10mm pivot hole, and M8x1.25 adjusting hole. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What pulley setup does it use?

It has a fixed pulley, AA pulley section, and a 76mm pulley outside diameter. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXA433HO is the main reference point. Listed voltage is 12. Listed output rating is 120. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.
