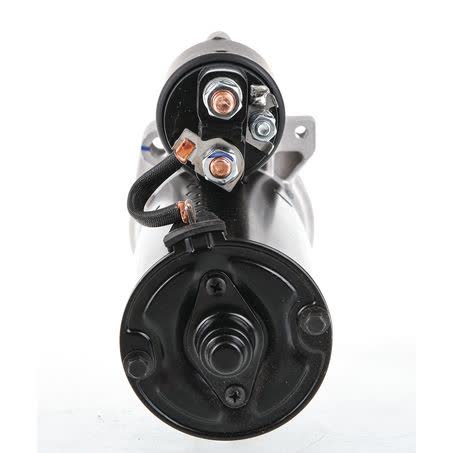

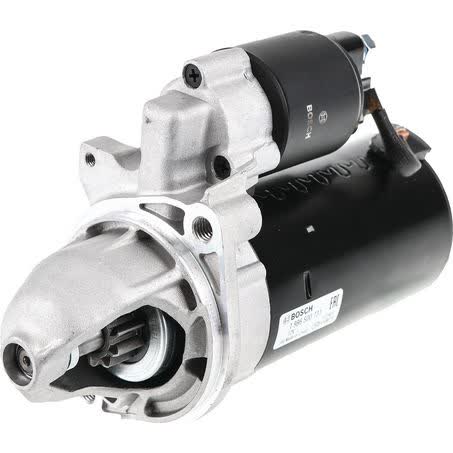

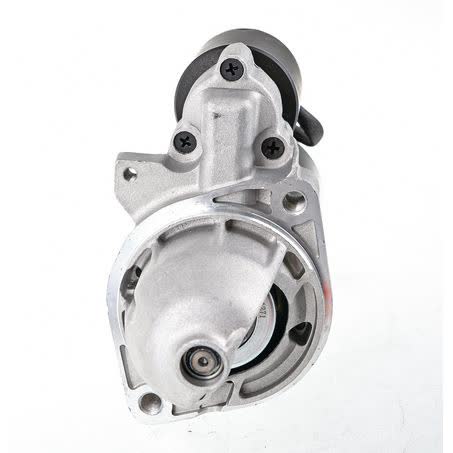

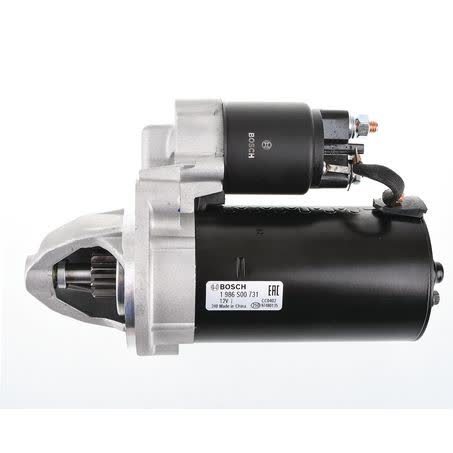

Bosch Starter Motor 12V 10 Tooth CW 2.2KW Part No. 1986S00731

The Bosch starter motor listed here is a new 12V unit with 10 teeth, clockwise rotation, and a 2.2kW power rating. It is identified by part number 1986S00731 and is supplied as a starter motor each, not a remanufactured unit.

Key physical details include a 2-hole starter mount type, 105mm mount centres, M10x1.5 mount hole diameter, 82.5mm flange diameter, and 237mm overall length. The pinion sits at 26mm at rest, with a 28mm pinion diameter, which makes the listed dimensions important when checking replacement suitability.

This Bosch starter motor is listed with a 12 month warranty and a weight of 3.72kg. It is described as suitable for Bosch unit make applications and is manufactured in China, so the practical check is to compare the part number, rotation, tooth count, and mounting dimensions before ordering.

Key Features

• 12V Bosch starter motor
• 10 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• New unit
• 2-hole starter mount

Specifications

• Part No.: 1986S00731
• Brand: Bosch
• Type: Starter motor
• Voltage: 12V
• Power rating: 2.2kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 2 hole

Known fitment applications supplied

• Mercedes-Benz 124
• Mercedes-Benz C-Class
• Mercedes-Benz E-Class
• Mercedes-Benz G-Class
• Mercedes-Benz M-Class
• Mercedes-Benz S-Class
• Mercedes-Benz SL
• Mercedes-Benz Sprinter 2-T

Application and Buying Notes

Before ordering, match the Bosch part number 1986S00731 with the starter already fitted to the vehicle, then confirm the key hardware details: 12V electrical system, 10-tooth pinion, clockwise rotation, and 2-hole mount. A starter motor can look close to correct while still differing in rotation, tooth count, or mounting pattern, so these checks matter.

The listed dimensions are there for a reason. Confirm the 105mm mount centres, M10x1.5 mount hole diameter, 82.5mm flange diameter, 237mm overall length, and 26mm pinion at rest against the existing unit or service information. If any of those measurements differ, fitment should be checked carefully before installation.

This unit is a new Bosch starter motor with a 2.2kW power rating. That specification is useful when comparing replacement options, but it should not be treated as the only selection point. The safest approach is to verify the vehicle application, the starter mount type, and the part number together rather than relying on one detail alone.

The supplied fitment information includes Mercedes-Benz 124, C-Class, E-Class, G-Class, M-Class, S-Class, SL, Sprinter variants, Valente, Vario, Viano, Vito and Vito / Mixto, plus Ssangyong Korando and Musso. Because those names cover multiple model years and configurations, confirm the exact application against the vehicle’s existing starter and the full identification details before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00731 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 12 Months, Mount Centres A 105mm, Number of Teeth 10, Pinion at Rest 26mm, Power Rating 2.2kW, Suits Unit Make Bosch, New / Reman. New, Number of mounting bores 2.

Additional published details for cross-checking include Packaging width 18, Manufactured in China, Product Group 2 STARTER MOTORS, Part No. 1986S00731, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 82.5mm, Mount Hole Diameter M10x1.5, Overall Length 237mm.

Bosch Starter Motor 12V 10Th CW. Part number 1986S00731 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00731, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include 5-T 2006, 5-T 2007, 5-T 2008, 5-T 2009, MERCEDES-BENZ 124, MERCEDES-BENZ 124 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using Bosch part number 1986S00731, the 12V 10-tooth clockwise specification, and the listed mounting dimensions and application details before ordering.

FAQ

What is the Bosch part number for this starter motor?

The part number listed is 1986S00731. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.

What voltage and power rating does it have?

It is a 12V starter motor with a 2.2kW power rating. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have and which way does it rotate?

It has 10 teeth and clockwise rotation. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.

What mounting details are listed for this starter motor?

The listed mounting details are a 2-hole starter mount, 105mm mount centres, and M10x1.5 mount hole diameter. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.

Which vehicles are shown in the supplied fitment information?

The supplied fitment information includes Mercedes-Benz 124, C-Class, E-Class, G-Class, M-Class, S-Class, SL, Sprinter variants, Valente, Vario, Viano, Vito and Vito / Mixto, plus Ssangyong Korando and Musso. For this listing, part number 1986S00731 is the main reference point. Listed voltage is 12. Published fitment references include 5-T 2006, 5-T 2007, 5-T 2008. These details should still be checked against the original unit before ordering.
