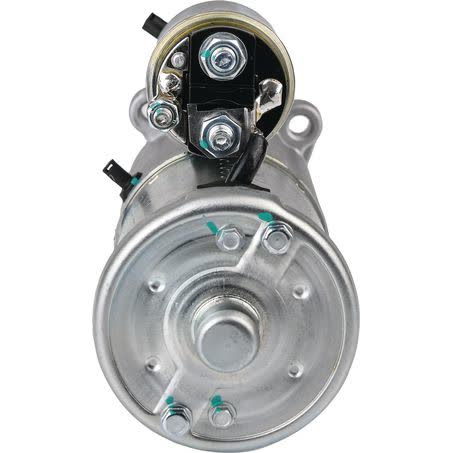

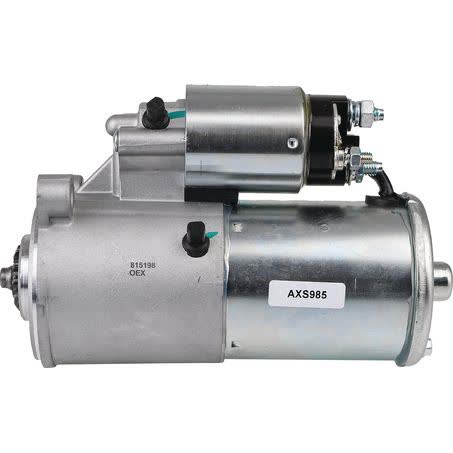

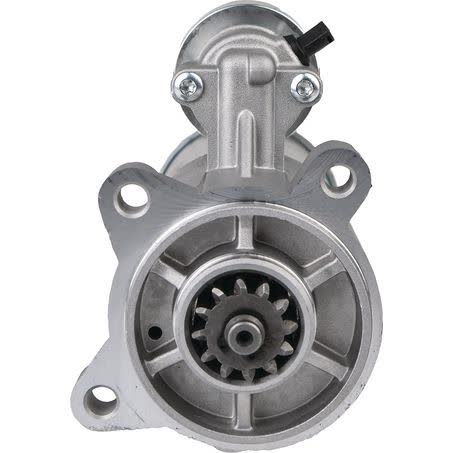

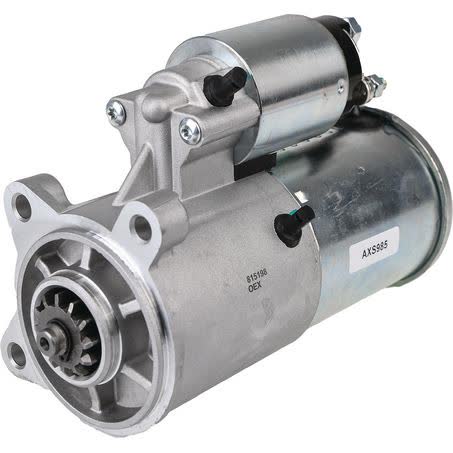

OEX Starter Motor 12V 12 Tooth CW Autolite Style AXS985

The OEX Starter Motor AXS985 is a new 12V starter motor in Autolite style, with 12 teeth and clockwise rotation. It is listed with a 3 hole starter mount type, which makes the mounting pattern an important check before purchase. For buyers replacing an existing unit, the key identifiers here are 12V, CW rotation, 12 teeth, and part number AXS985.

Physical dimensions are provided for comparison against the existing starter and mounting space. Measured points include 101mm mount centres A, 65mm mount centres B, 63mm mount centres C, a 76mm flange diameter, 219mm overall length, 32mm pinion diameter, and 15mm pinion at rest. These details help confirm whether the replacement matches the original unit closely enough to install correctly.

OEX states the brand is sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with products sourced from ISO certified factories. The product is backed by a 3 year passenger / 1 year commercial warranty, which is useful context for buyers looking for a replacement starter for a passenger vehicle or commercial application where the operating duty is different.

Key Features

• 12V starter motor
• 12 tooth pinion
• Clockwise rotation
• Autolite style
• 3 hole starter mount type
• New unit

Specifications

• Voltage: 12V
• Number of teeth: 12
• Rotation: CW
• Starter mount type: 3 hole
• Suits unit make: Autolite
• Part number: AXS985
• Flange diameter: 76mm
• Overall length: 219mm

Fitment guidance

• FORD: F-250, F-250 2003, F-250 2004, F-250 2005, F-250 2006, plus other listed applications

Application and Buying Notes

When matching a starter motor, the part number AXS985 is the first reference point, followed by the unit style and mounting details. This listing is for an OEX 12V, 12 tooth, clockwise starter motor in Autolite style, so the original unit should be checked for the same rotation, tooth count, and overall layout before ordering.

The mounting pattern needs careful comparison because this starter uses a 3 hole mount with stated centres of 101mm, 65mm, and 63mm, plus 8.5mm mounting holes. If the original starter differs in flange diameter, overall length, or pinion measurements, it may not be the correct replacement even if it appears similar at first glance.

The supplied fitment data points to Ford applications, including Ford F-250 and Ford F-350 references, but no year-by-year fitment should be assumed beyond what is specifically listed in your vehicle application data. Confirm the starter type on the vehicle, compare the old unit to the measurements here, and use the part number AXS985 as the main cross-check before purchase.

Because starter motors sit within a tight mechanical and electrical setup, details such as 12V voltage, 12 teeth, 32mm pinion diameter, and 15mm pinion at rest matter. A close visual match is not enough on its own; the safest approach is to compare the removed starter, the vehicle application, and the listed dimensions together.

This unit is listed as new and weighs 3.72kg, which can also help when checking the replacement against the existing starter. The warranty coverage is 3 years for passenger use and 1 year for commercial use, so it is sensible to match the application type to the intended operating environment as well as the physical fit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS985 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 101mm, Mount Centres C 63mm, Number of Teeth 12, Pinion at Rest 15mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. AXS985, Brand OEX, Description OEX Starter Motor 12V 12Th CW Autolite Style, Flange Diameter 76mm, Mount Centres B 65mm, Mount Hole Diameter 8.5, Overall Length 219mm, Pinion Diameter 32mm.

OEX Starter Motor 12V 12Th CW Autolite Style. Part number AXS985 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS985, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number AXS985, 12V voltage, 12 tooth count, clockwise rotation, Autolite style, and the listed mounting and dimension measurements against the original starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is AXS985. For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 12 teeth. For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

The rotation is clockwise (CW). For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number AXS985 is the main reference point. Listed voltage is 12. Published fitment references include FORD F-250, FORD F-250 2003, FORD F-250 2004. These details should still be checked against the original unit before ordering.
