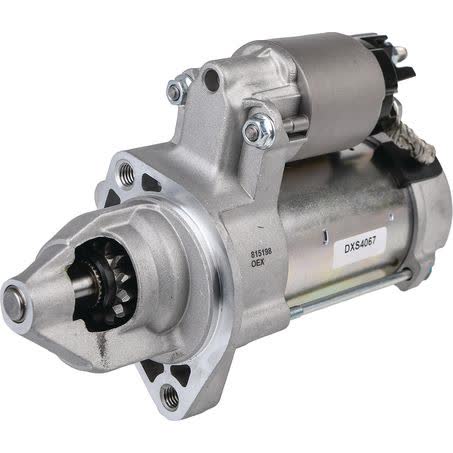

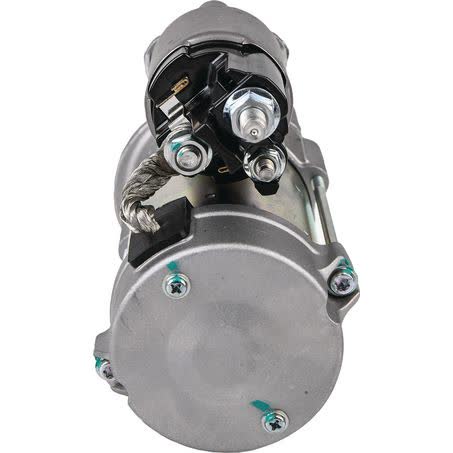

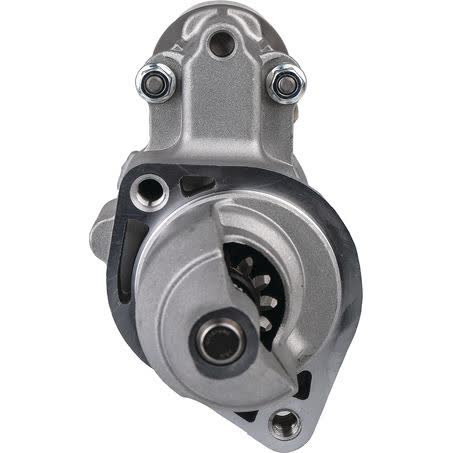

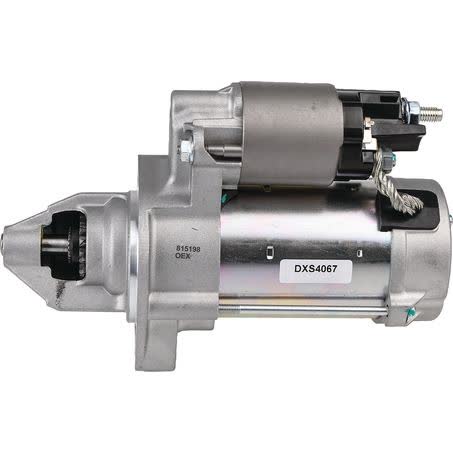

OEX Starter Motor 12V 13 Tooth CW Denso Style DXS4067

The OEX DXS4067 starter motor is a new 12V unit with a 13 tooth pinion, clockwise rotation, and a 1.7kW power rating. It is listed as Denso style and suits Denso unit make, so matching the part number and key dimensions is important before ordering.

This starter motor has a 2 hole mount type, 90mm mount centres, a 66mm flange diameter, and M10x1.5 mount holes. The overall length is 220mm, the pinion diameter is 34mm, and the pinion at rest measures 26mm.

At 3.14kg, this is a rotating electrical component supplied as a new unit rather than remanufactured. OEX lists the warranty as 3 years for passenger use and 1 year for commercial use, which gives a clear service expectation for the intended application.

Key Features

• 12V starter motor
• 13 tooth pinion
• Clockwise rotation
• 1.7kW power rating
• New unit
• Denso style / suits Denso unit make

Specifications

• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 13
• Starter mount type: 2 hole
• Mount centres A: 90mm
• Flange diameter: 66mm
• Mount hole diameter: M10x1.5

Fitment guidance

• Fitment details were supplied for Mercedes-Benz applications, but the exact engine and chassis match still needs to be confirmed against the vehicle and the part number.
• Model groups listed include Mercedes-Benz C-Class, E-Class, and GLC.
• Sample application years shown include Mercedes-Benz C-Class 2013, 2014, 2015, 2016, 2017, and 2018, plus Mercedes-Benz E-Class 2012, 2013, 2014, and 2015.
• Use the starter’s part number DXS4067, 12V rating, 13 tooth count, CW rotation, and mount dimensions when checking a replacement.

Application and Buying Notes

For starter motors, the safest match is a combination of part number and physical specification. This unit is DXS4067, 12V, 13 tooth, clockwise rotation, with a 2 hole mount, 90mm mount centres, and an overall length of 220mm. Those details need to line up with the vehicle’s original starter before purchase.

The Denso style and suits Denso unit make information matters because starter housings, mounting patterns, and pinion dimensions are not interchangeable across every application. The 66mm flange diameter, M10x1.5 mount holes, 34mm pinion diameter, and 26mm pinion at rest are the most useful checks when comparing against the old unit.

The listed fitment preview points to Mercedes-Benz C-Class, E-Class, and GLC applications, but that should be treated as a guide only. Confirm the exact vehicle details, engine variant, and the existing starter number where possible, because a matching model name alone is not enough to verify compatibility.

This is a new starter motor with a 1.7kW rating, so it is intended to replace a worn or failing unit rather than be rebuilt on the vehicle. The 3.14kg weight is also a practical reference point when comparing it with the removed part, especially if the original starter has a similar casing and mounting layout.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That is useful for understanding the intended duty cycle, but it does not replace fitment checks. A correct installation still depends on the starter matching the vehicle’s voltage, rotation, tooth count, and mount pattern.

If you are comparing multiple starter options, focus first on the part number DXS4067 and then verify voltage, rotation, tooth count, and dimensions. That approach reduces the risk of ordering a starter that looks similar but uses a different mounting arrangement or pinion specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4067 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 90mm, Number of Teeth 13, Pinion at Rest 26mm, Power Rating 1.7kW, Suits Unit Make Denso, New / Reman. New, Weight 3.14kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4067, Brand OEX, Description OEX Starter Motor 12V 13Th CW Denso Style, Flange Diameter 66mm, Mount Hole Diameter M10x1.5, Overall Length 220mm, Pinion Diameter 34mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 13Th CW Denso Style. Part number DXS4067 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4067, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using part number DXS4067, the vehicle application details, and the starter’s measured dimensions before ordering. Mercedes-Benz model group references are provided as a guide only and should be checked against the exact vehicle and original unit.

FAQ

What is the part number for this starter motor?

The part number is DXS4067.

Is this starter motor new or remanufactured?

It is listed as a new starter motor, not remanufactured.

What voltage does this starter motor use?

It is a 12V starter motor.

What are the key mounting measurements?

The starter has 2 hole mounting, 90mm mount centres, a 66mm flange diameter, and M10x1.5 mount holes.

What rotation and tooth count does it have?

It is clockwise rotation with 13 teeth.

What vehicles are listed in the fitment preview?

The fitment preview includes Mercedes-Benz C-Class, E-Class, and GLC model groups, with sample C-Class years from 2013 to 2018 and E-Class years from 2012 to 2015. Exact compatibility still needs to be confirmed against the vehicle and part number.
