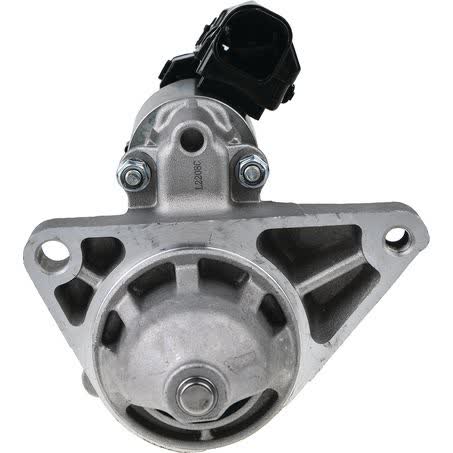

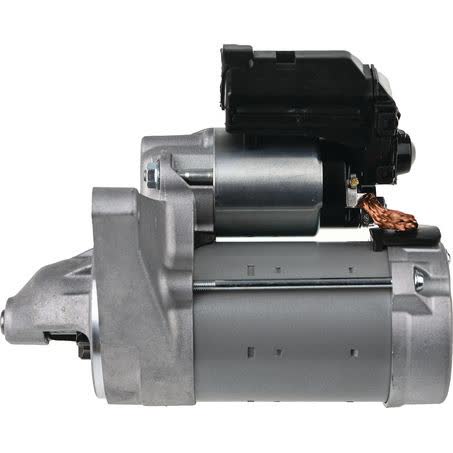

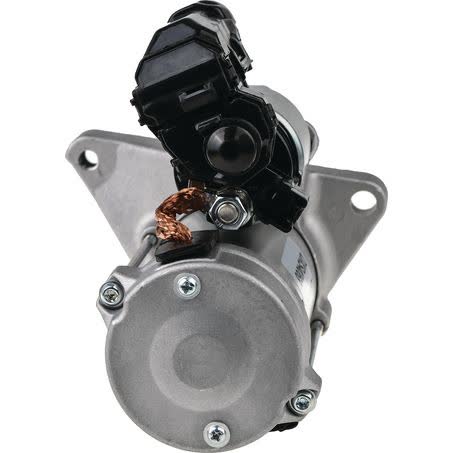

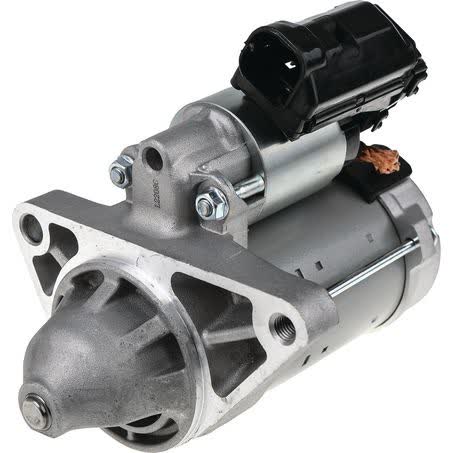

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS4068

The OEX starter motor DXS4068 is a new 12V unit with a 9 tooth pinion and clockwise rotation, built in a Denso style configuration. It is listed as a starter motor with a 1.6kW power rating, 74mm flange diameter, and a 2 hole starter mount type, so the physical layout and electrical specification both matter when checking replacement suitability.

This unit has an overall length of 197mm, mount centres A of 122mm, and a mount hole diameter of M10x1.25 / 11. The pinion diameter is 33mm and the pinion at rest is 13mm, which are useful measurements when comparing against the original starter on the vehicle.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with products sourced from ISO certified factories. The listed warranty is 3yr Passenger and 1yr Commercial, so the intended use category is worth confirming before ordering.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Denso style unit
• New, not remanufactured
• 1.6kW power rating

Specifications

• Voltage: 12V
• Power rating: 1.6kW
• Rotation: CW
• Number of teeth: 9
• Suits unit make: Denso
• Starter mount type: 2 hole
• Mount centres A: 122mm
• Mount hole diameter: M10x1.25 / 11

Application and Buying Notes

Before ordering, match the part number DXS4068 and compare the key physical measurements against the starter being replaced. The important checks here are 12V voltage, 9 tooth count, clockwise rotation, 1.6kW output, 122mm mount centres, and the 74mm flange diameter.

Because no vehicle model list is supplied, it is best to treat fitment as application-specific rather than assumed. The note “Denso style” and “Suits Unit Make: Denso” indicate the style and unit family, but they do not replace a direct comparison with the original starter or the vehicle’s parts listing.

The mount hole specification of M10x1.25 / 11, the 197mm overall length, and the 33mm pinion diameter are useful cross-checks when comparing units side by side. Even small differences in mounting or pinion dimensions can prevent correct installation, so verify the old starter before purchase.

Warranty coverage is listed as 3yr Passenger and 1yr Commercial. That distinction is worth noting when the vehicle is used in different duty cycles, but the correct application still needs to be confirmed by part number and physical match.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4068 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 122mm, Number of Teeth 9, Pinion at Rest 13mm, Power Rating 1.6kW, Suits Unit Make Denso, New / Reman. New, Weight 3.24kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4068, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter M10x1.25 / 11, Overall Length 197mm, Pinion Diameter 33mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4068 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4068, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm compatibility by checking part number DXS4068, 12V electrical specification, 9 tooth clockwise configuration, and the listed mounting dimensions against the vehicle application and the removed starter motor before purchase.

FAQ

What is the part number for this starter motor?

The listed part number is DXS4068. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as clockwise rotation, shown as CW. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This is listed as new, not remanufactured. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3yr Passenger and 1yr Commercial. For this listing, part number DXS4068 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
