OEX Alternator 12V 90A Denso Style DXA4174

The OEX DXA4174 is a new 12V alternator rated at 90A and designed in a Denso style with a single leg mount. It suits vehicles built from 06/16 to 06/19, so the build date is an important check before ordering.

This alternator uses an internal regulator, a 7 groove pulley with a 62.5mm outside diameter, and a 58mm mount leg thickness. It is supplied as an each unit and carries OEX part number DXA4174.

There are two identical looking alternators with different regulator functions, so the correct match needs to be confirmed by OE number. That is especially important when the alternator appears visually similar but the charging control setup is different.

Key Features

• New alternator, not remanufactured
• 12V, 90A output
• Denso style unit
• Internal regulator
• Single leg alternator mount
• 7 groove pulley

Specifications

• Brand: OEX
• Part number: DXA4174
• Product type: Alternator
• Voltage: 12V
• Power rating: 90A
• Unit of measure: Each
• Regulator type: Internal
• Alternator mount: Single leg

Fitment guidance

• Suit vehicle build date from 06/16 to 06/19
• Two visually similar alternators are noted, with different regulator functions
• Confirm the correct match by OE number before purchase
• Fitment information supplied references Isuzu D-Max applications

Application and Buying Notes

The main compatibility checkpoint for this alternator is build date: it suits vehicles from 06/16 to 06/19. If the vehicle falls outside that range, the alternator should not be assumed to fit, even if it looks similar or the connector appears close.

This unit is a Denso style alternator with a single leg mount, internal regulator, 90A output, and a 7 groove pulley measuring 62.5mm outside diameter. Those details matter because alternator mounts, pulley layout, and regulator type all need to line up with the vehicle’s charging system.

There are two identical looking alternators listed with different regulator functions. That makes OE number matching the safest way to verify the correct part. The part number is DXA4174, and the vehicle’s original alternator details should be checked carefully before fitting.

The mounting measurements can help confirm whether the housing and brackets are correct: mount leg thickness is 58mm, mount centre to centre is 160mm, pivot hole diameter is 10, and the adjusting hole is M8x1.25. If any of those points differ from the removed unit, the part should be rechecked before installation.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, it is worth confirming that the application and duty cycle match the intended warranty category before the purchase is finalised.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4174 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 62.5mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

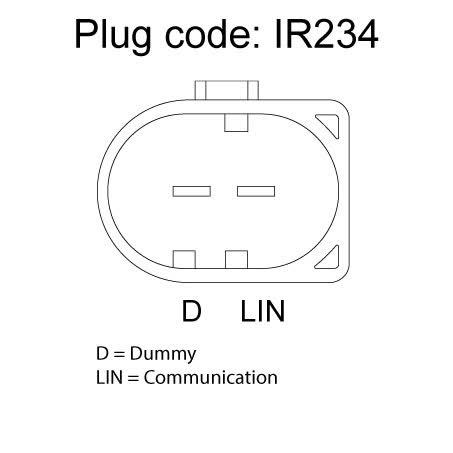

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4174, Brand OEX, Description OEX Alternator 12V 90A Denso Style Suits Only 06/16 to 06/19, Adjusting Hole Diameter M8x1.25, Pin Code IR234, Power Rating (Amp) 90, Pulley Section 7 Groove, Suits Unit Make Denso.

OEX Alternator 12V 90A Denso Style Suits Only 06/16 to 06/19. Part number DXA4174 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4174, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number DXA4174, the 06/16 to 06/19 build window, and the OE number from the original alternator. Because two similar alternators are noted with different regulator functions, do not rely on appearance alone.

FAQ

What is the part number for this alternator?

The OEX part number is DXA4174. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.

What voltage and output does this alternator have?

It is a 12V alternator with a 90A power rating. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.

What vehicle build date range does it suit?

It suits vehicles built from 06/16 to 06/19. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.

How should fitment be confirmed for this part?

Confirm by OE number and compare the vehicle’s alternator details, because two identical looking alternators are noted with different regulator functions. For this listing, part number DXA4174 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include ISUZU D-MAX, ISUZU D-MAX 2012, ISUZU D-MAX 2013. These details should still be checked against the original unit before ordering.
