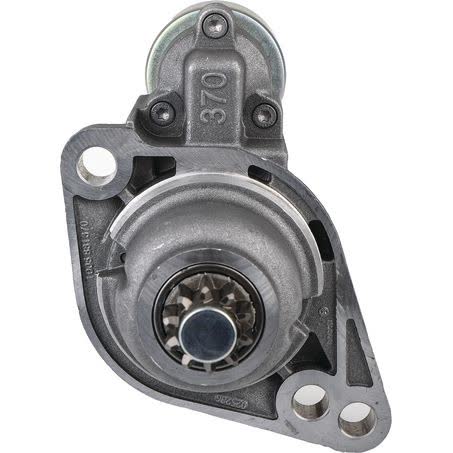

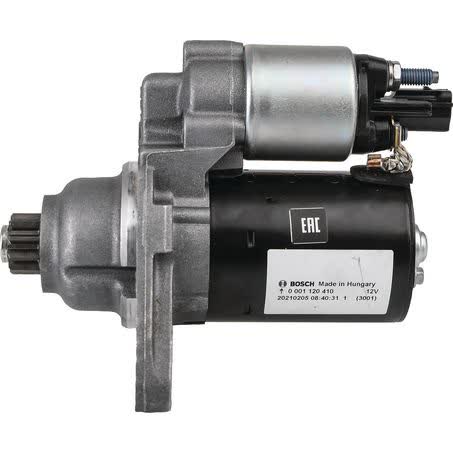

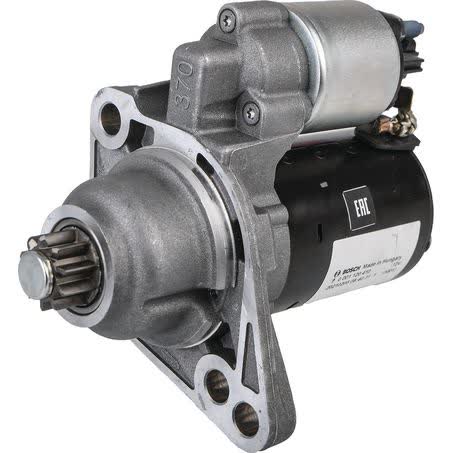

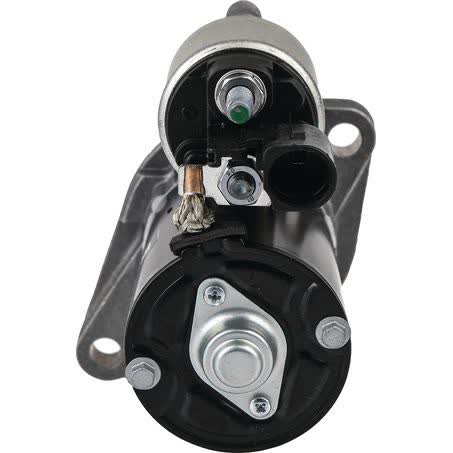

Bosch Starter Motor 12V 10 Tooth CCW 1.0KW Part No. 1986S00782

This Bosch starter motor is a new 12V unit with 10 teeth, counter-clockwise rotation (CCW) and a 1.0kW power rating. It carries part number 1986S00782 and is listed as a 3-hole starter mount type, which makes the mounting pattern an important check before ordering.

Key dimensions include 127mm mount centres A, 112mm mount centres B, 18mm mount centres C, a 76mm flange diameter, 12.5mm mount hole diameter and an overall length of 195mm. The pinion sits 57mm at rest and the pinion diameter is 28mm.

Bosch lists this unit as built for harsh environments and designed in fit and performance to meet OE starters. It is a new starter motor, supplied each, with a 12-month warranty and manufactured in Hungary.

Key Features

• 12V starter motor
• 10-tooth pinion
• CCW rotation
• 1.0kW power rating
• 3-hole mount type
• New unit, not remanufactured

Specifications

• Brand: Bosch
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.0kW
• Rotation: CCW
• Number of teeth: 10
• Starter mount type: 3 hole
• Number of mounting bores: 3

Fitment guidance

• Confirmed fitment group includes Skoda Yeti.
• Confirmed fitment group includes Volkswagen Caddy.
• The fitment data also references Volkswagen Golf.
• Model-year applications shown include Skoda Yeti 2009 to 2015 and Volkswagen Caddy 2004 to 2014.
• Fitment should still be checked against the part number 1986S00782 and the mounting and rotation details before purchase.

Application and Buying Notes

Starter motors can look similar across different models, so the safest match is by part number 1986S00782 together with the physical details: 12V, 10 teeth, CCW rotation and the 3-hole mounting pattern. The mounting centres are listed as 127mm, 112mm and 18mm, which are useful checks when comparing the replacement to the original unit.

The pinion and body measurements also matter. This Bosch unit has a 28mm pinion diameter, 57mm pinion at rest, 76mm flange diameter and 195mm overall length. Those figures help confirm the starter will suit the intended installation space and the existing bellhousing or mounting arrangement.

Because the fitment data references specific groups rather than a full vehicle catalogue in this listing, it is worth comparing the old starter directly before ordering. Check the tooth count, rotation direction, flange diameter, mount hole size and overall length, and do not rely on the vehicle badge alone.

This is a new Bosch starter motor, not a remanufactured unit, and it is supplied with a 12-month warranty. That gives you a clear product specification to compare against the original part, but the final responsibility for compatibility remains with the buyer and installer.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986S00782 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 12 Months, Mount Centres A 127mm, Mount Centres C 18mm, Number of Teeth 10, Pinion at Rest 57mm, Power Rating 1.0kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Packaging length 28.8, Packaging height 12, Weight 2.84kg, Product Group 1 ROTATING ELECTRICAL, Part No. 1986S00782, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CCW, Flange Diameter 76mm, Mount Centres B 112mm.

Bosch Starter Motor 12V 10Th CCW. Part number 1986S00782 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 1986S00782, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010, SKODA YETI 2011, VOLKSWAGEN CADDY, VOLKSWAGEN CADDY 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using Bosch part number 1986S00782, the 12V 10-tooth CCW specification, and the measured mounting and dimensional details before ordering. Match the existing starter and vehicle application carefully, especially where model-year variations may apply.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.

What is the rotation direction?

It is CCW rotation. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.

What part number should I use to check compatibility?

The Bosch part number is 1986S00782. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.

What vehicles are referenced in the fitment data?

The fitment data references Skoda Yeti, Volkswagen Caddy and Volkswagen Golf, with sample model-year applications shown for Skoda Yeti 2009 to 2015 and Volkswagen Caddy 2004 to 2014. For this listing, part number 1986S00782 is the main reference point. Listed voltage is 12. Published fitment references include SKODA YETI, SKODA YETI 2009, SKODA YETI 2010. These details should still be checked against the original unit before ordering.
