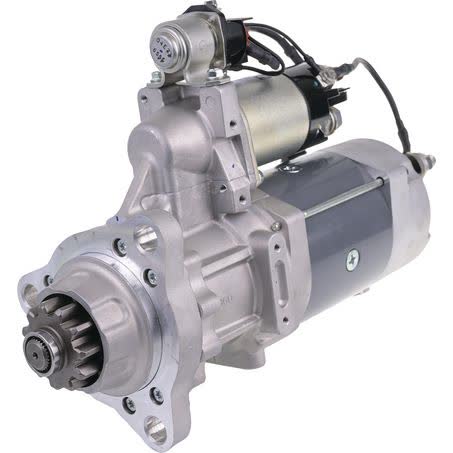

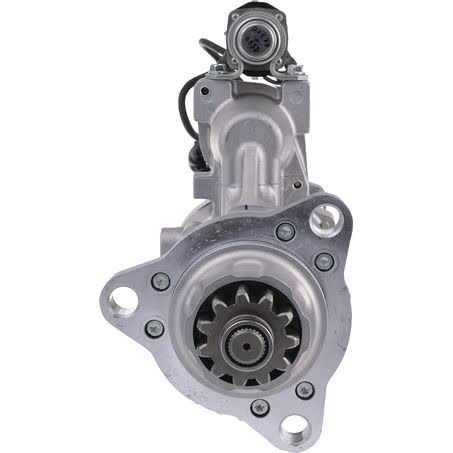

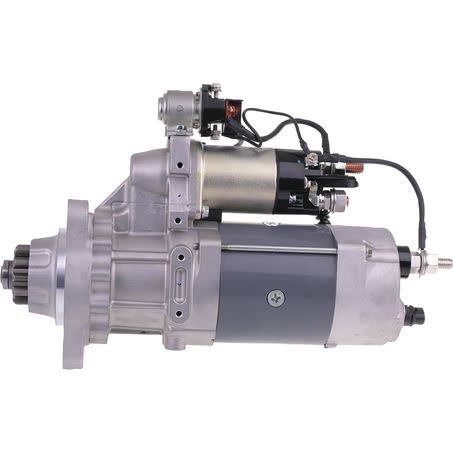

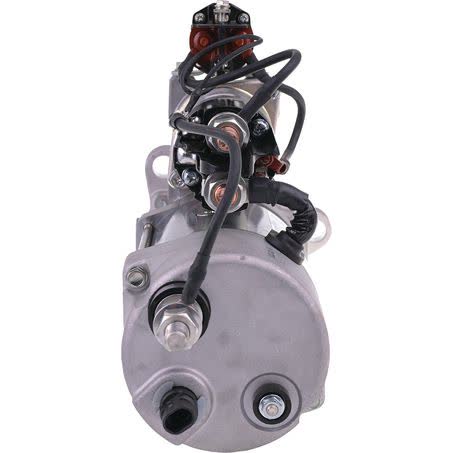

Delco Remy Starter Motor 12V 11 Tooth CW 150MT Part No. 61014400

The Delco Remy starter motor listed here is a new 12V unit in the 150MT series, with 11 teeth and clockwise rotation. It carries part number 61014400 and is described as an OE product with over crank protection, making the core identification points easy to check before ordering.

This starter motor is specified with a 7.3kW power rating, a 3 hole starter mount type, and insulated return. The main mounting dimensions shown are 126mm between mount centres A, B and C, with a 92mm flange diameter, a 16.5mm mount hole diameter, and an overall length of 420mm.

Other key details include a 56mm pinion diameter, 48mm pinion at rest, 11 teeth, and wet or dry clutch suitability. It is a rotatable flange design and includes over crank protection, which are useful checks when matching the starter to the application in question.

Key Features

• New starter motor
• Delco Remy brand
• 12V electrical system
• 150MT series
• 11 tooth pinion
• Clockwise rotation

Specifications

• Part No.: 61014400
• Voltage: 12V
• Power rating: 7.3kW
• Series: 150MT
• Number of teeth: 11
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm

Fitment guidance

• Verified application families include Atkinson, BCI, Case, Caterpillar, Challenger, Cummins, Ford, Freightliner, Grove, International, John Deere, Kawasaki, Kenworth, Mack, Massey Ferguson, New Holland, R.F.W., Sterling Trucks, Titan, UD Nissan Diesel, Versatile, and Western Star.
• Sample applications listed include Atkinson F4870, BCI Explorer, Case 8425, Case 9050B, Caterpillar 910E, Challenger MT, Cummins ISC 8.3, Ford 9000-Series, Freightliner Argosy, Grove AT745, Kenworth T-Series, and Western Star 4900.
• John Deere applications listed include 550LC, 8850, 8960, and 8970.
• The fitment list is broad, so exact confirmation against the vehicle, machine, or engine application is still required before purchase.

Application and Buying Notes

When comparing this starter to an existing unit, the most useful identifiers are the 12V rating, 150MT series, 11 tooth count, clockwise rotation, and part number 61014400. The mounting pattern also matters, with 126mm shown for mount centres A, B, and C, plus a 3 hole mount type and 92mm flange diameter.

The 7.3kW rating, 56mm pinion diameter, and 48mm pinion at rest help confirm you are comparing like for like, especially where the machine uses a heavy-duty rotating electrical setup. Weight is listed at 15.2kg, so it is sensible to compare the physical starter as well as the electrical specification.

Because the fitment list covers multiple makes and series, the safest buying approach is to match the part number and the application details from the machine or existing starter. Small differences in tooth count, rotation, flange arrangement, or mount centres can prevent a correct install even when the brand appears similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 61014400 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 7.3kW, Series 150MT, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Weight 15.2kg, Product Group 1 ROTATING ELECTRICAL, Part No. 61014400, Brand DELCO REMY, Description Delco Starter Motor 12V 11Th CW 150MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16.5.

Delco Starter Motor 12V 11Th CW 150MT. Part number 61014400 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 61014400, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011, CASE 8425, CASE 9050B, CASE 921. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number 61014400, the 12V 150MT specification, 11 tooth clockwise configuration, and the measured mounting details before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is 61014400. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What rotation does it use?

The rotation is clockwise, shown as CW. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The listed mount details include a 3 hole starter mount type, 126mm mount centres A/B/C, a 92mm flange diameter, and a 16.5mm mount hole diameter. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

Which applications are shown in the fitment data?

The fitment data lists multiple applications across makes such as Atkinson, Case, Caterpillar, Cummins, Ford, Freightliner, John Deere, Kenworth, Mack, New Holland, and Western Star. Exact fitment should still be confirmed against the application and part number. For this listing, part number 61014400 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.
