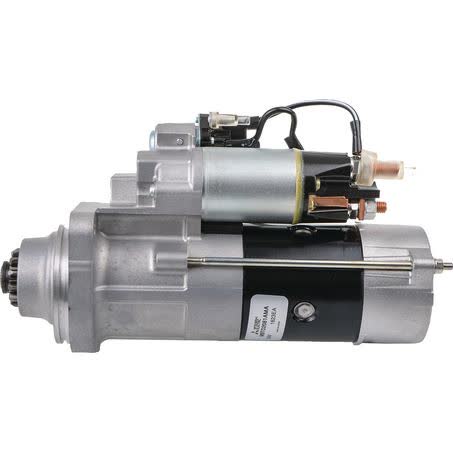

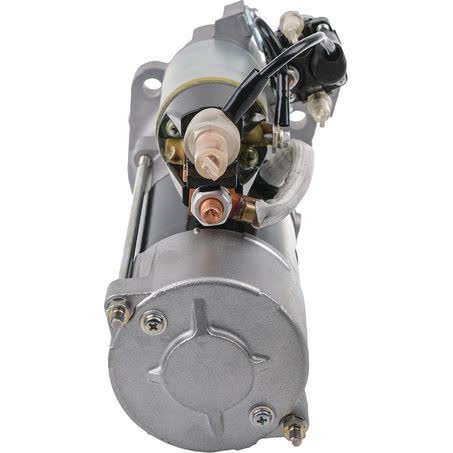

Mitsubishi Starter Motor 24V 12T CW M9TD2081AMA

This Mitsubishi starter motor is a new 24V unit with 12 teeth, clockwise rotation, and a 5.5kW power rating. It is listed as Part No. M9TD2081AMA, with OEM Number M9T2071, and is supplied as an OE product for applications that call for this exact combination of voltage, rotation, and mounting pattern.

Mounting dimensions are a key checkpoint on this unit. It has a 3 hole starter mount type, mount centres A of 127mm, mount centres B of 90mm, mount centres C of 90mm, a 89mm flange diameter, and 11mm mount hole diameter. The overall length is 320mm, with a pinion diameter of 44mm and pinion at rest of 46mm.

This is a 24V starter motor designed for Mitsubishi applications, and the listed fitment data also shows Volvo construction applications. Because starter motors can look similar while differing in tooth count, rotation, flange size, and mount centres, the part number and measurements should be checked carefully before ordering.

The unit is supplied new, weighs 9.12kg, and is listed for use with wet or dry clutch setups. The product is covered by a 2 Years 400,000km warranty, which gives a useful reference point for buyers comparing replacement starters on commercial or heavy-duty equipment.

Key Features

• New starter motor
• OE product
• 24V electrical system
• 12-tooth pinion
• Clockwise rotation
• 5.5kW power rating

Specifications

• Part No.: M9TD2081AMA
• OEM Number: M9T2071
• Brand: Mitsubishi
• Type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of Teeth: 12
• Power Rating: 5.5kW

Verified fitment references

• Volvo
• Volvo A
• Volvo A 2011
• Volvo Construction
• Volvo Construction EC240B Prime
• Volvo Construction EC240C
• Volvo Construction EC240C LR
• Volvo Construction EC240C NL

Application and Buying Notes

Before ordering, confirm the existing starter motor matches the critical identifiers on this unit: 24V, 12 teeth, clockwise rotation, and Part No. M9TD2081AMA. The OEM Number shown is M9T2071, which is another useful check when matching a replacement to an installed part.

Physical dimensions matter just as much as the electrical spec. This starter uses a 3 hole mount with 127mm, 90mm, and 90mm mount centres, a 89mm flange diameter, and 11mm mount holes. If those dimensions do not line up with the original starter, the motor may not bolt up correctly.

The listed fitment references include Volvo and Volvo Construction applications, including EC240B Prime, EC240C, EC290B Prime, EC290BNLC, EC290C NL, ECR305C, G710B, G720B, G726B, G730B, G930, G940, G946, G960, L110E, L110F, L120E Tier 2, L120E Tier 3, L120F, and L120H. Even so, the exact machine variant, year, and serial break should still be checked against the part number and measurements.

Because this unit is listed as 5.5kW and 24V, it is intended for systems built around that electrical setup. Matching voltage is essential, and so is confirming the pinion tooth count and rotation, as a visually similar starter can still be the wrong specification for the job.

The unit is new and weighs 9.12kg, so handling and installation should be done with care. The warranty is listed as 2 Years 400,000km, which may be useful when comparing replacement options for commercial use, but it does not replace a proper fitment check before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M9TD2081AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 12, Pinion at Rest 46mm, Power Rating 5.5kW, Suits Unit Make Mitsubishi, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Weight 9.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. M9TD2081AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 24V 12Th CW, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 320mm.

Mitsubishi Starter Motor 24V 12Th CW. Part number M9TD2081AMA should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M9TD2081AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO A, VOLVO A 2011, VOLVO CONSTRUCTION, VOLVO CONSTRUCTION EC240B PRIME. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the part number M9TD2081AMA, OEM number M9T2071, and the listed measurements and application details before ordering. If the original unit differs in voltage, tooth count, rotation, mount centres, or flange size, this starter should not be assumed to fit.

FAQ

What type of starter motor is this?

It is a Mitsubishi starter motor, listed as a new OE product with Part No. M9TD2081AMA and OEM Number M9T2071.

What voltage does this starter use?

This starter motor is rated at 24V.

How many teeth does the pinion have?

The pinion is listed as 12 tooth.

What is the rotation direction?

The rotation is clockwise, shown as CW.

What mounting details are listed?

It has a 3 hole starter mount type, mount centres A 127mm, B 90mm, C 90mm, a 89mm flange diameter, and 11mm mount hole diameter.

Which applications are listed in the fitment data?

The fitment references include Volvo and Volvo Construction applications such as EC240B Prime, EC240C, EC290B Prime, EC290BNLC, EC290C NL, ECR305C, G710B, G720B, G726B, G730B, G930, G940, G946, G960, L110E, L110F, L120E Tier 2, L120E Tier 3, L120F, and L120H.
