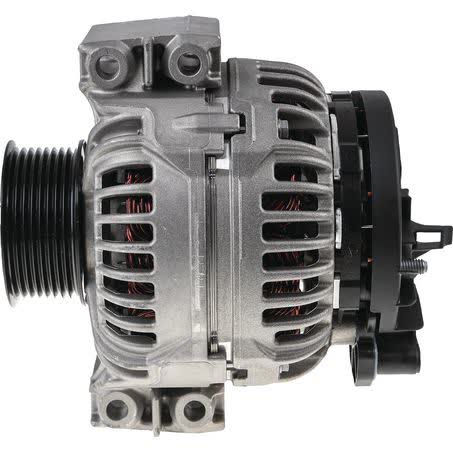

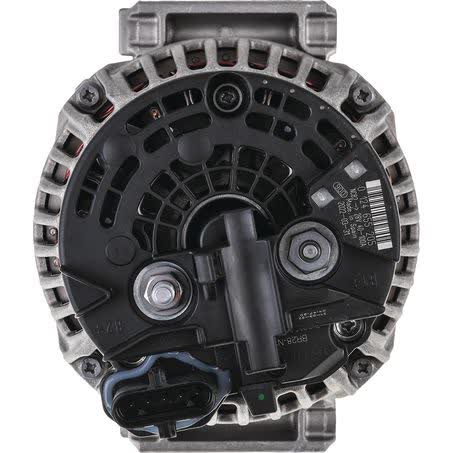

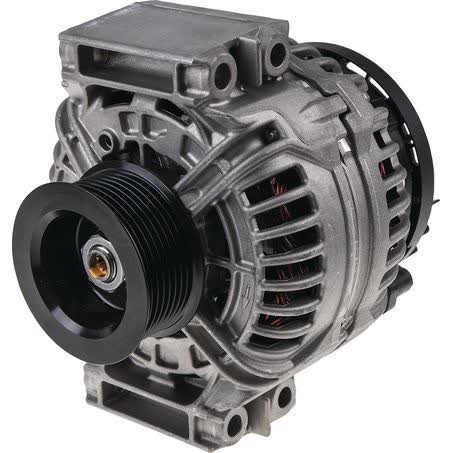

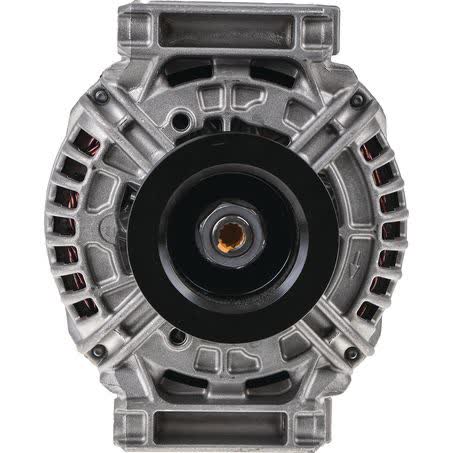

Bosch Alternator 24V 100A Part No. 1986A00968

Bosch Alternator 24V 100A, part number 1986A00968, is a new alternator supplied as each unit with a 12 month warranty. It is an internal regulated unit with a 24V system voltage and 100A charge current, which are the key details to check before ordering.

This alternator uses a pad mount with direct fastening, a 9 mm mount hole diameter, and a mount centre to centre measurement of 159 mm. It is listed as an alternator type excluding vacuum pump, so the physical layout should be checked against the vehicle application and the removed unit.

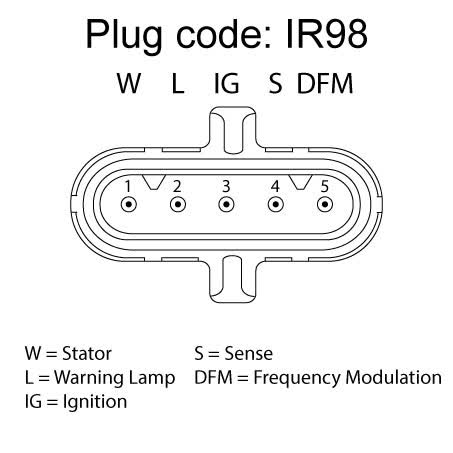

Other identifying details include pin code IR98, pulley outside diameter 72 mm, 8 groove pulley section, clockwise rotation, and Bosch as the unit make. It is manufactured in Spain and packed with dimensions of 24 x 18.5 x 20, which may be useful when checking space, handling, or freight requirements.

Key Features

• 24V alternator with 100A output
• Internal regulated unit
• New unit, not remanufactured
• Direct fastening pad mount
• 8 groove pulley, 72 mm outside diameter
• Clockwise rotation

Specifications

• Brand: Bosch
• Part No.: 1986A00968
• Product type: Alternator
• Voltage: 24V
• Power rating: 100A
• Charge current: 100A
• Regulator type: Internal
• Alternator mount: Pad

Verified fitment details

• Scania 4-Series Bus
• Scania T-Series
• Scania G
• Scania R

Application and Buying Notes

The most important checks on this Bosch alternator are the part number 1986A00968, the 24V electrical system, and the 100A output. Those details need to align with the vehicle and the removed unit before purchase, because alternators with similar housings can still differ in mount pattern, pulley arrangement, or regulator type.

Physical fit should also be confirmed against the pad mount layout, direct fastening design, 9 mm mount hole diameter, and 159 mm mount centre to centre measurement. The pulley is 72 mm outside diameter with an 8 groove section and clockwise rotation, so belt style and pulley alignment matter just as much as the electrical rating.

This unit is listed as excluding a vacuum pump, so it is important to compare the front and rear configuration of the existing alternator before ordering. If the vehicle uses a V-belt or V-ribbed belt system, the recommended additional repairs note is worth considering at the same time, especially if the belt shows wear or glazing.

For Scania applications, the fitment data references Scania 4-Series Bus, T-Series, G, and R. Even where the model family is listed, the safest approach is still to match the part number, pin code IR98, and mounting measurements to the old unit to avoid ordering the wrong variant.

Because this is a new Bosch alternator with internal regulation, it is suited to buyers wanting the correct replacement component rather than a remanufactured assembly. The correct match depends on the vehicle’s charging system, pulley setup, and mounting points, so compare all recorded dimensions and the original part before committing to fitment.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986A00968 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Mount Hole Diameter 9, Pin Code IR98, Pulley Outside Diameter 72mm, Regulator Type Internal, Suits Unit Make Bosch, Alternator Mount Pad, New / Reman. New.

Additional published details for cross-checking include Fastening Type Direct fastening, Recommended additional repairs V-Belt/V-Ribbed Belt, Packaging width 18.5, Manufactured in Spain, Product Group 2 ALTERNATORS, Part No. 1986A00968, Brand BOSCH, Description Bosch Alternator 24V 100A, Inside Mounting Legs 35mm.

Bosch Alternator 24V 100A. Part number 1986A00968 should be checked first. Listed voltage is 24. Listed output rating is 100. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 1986A00968, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 100 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SCANIA 4 - SERIES BUS, SCANIA 4 - SERIES BUS 1997, SCANIA 4 - SERIES BUS 1998, SCANIA 4 - SERIES BUS 1999, T - SERIES 2003, T - SERIES 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 12 Months. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number 1986A00968, 24V system voltage, 100A output, pad mount layout, pulley details, and the vehicle application before ordering.

FAQ

What is the part number for this alternator?

The part number is 1986A00968.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 24V alternator with a 100A charge current and 100A power rating.

Does it have an internal regulator?

Yes. The regulator type is internal, and the listed feature is internal regulated.

What vehicles are listed in the fitment information?

The fitment information references Scania 4-Series Bus, Scania T-Series, Scania G, and Scania R.

What should be checked before ordering?

Confirm the part number, 24V system, 100A output, pad mount layout, 9 mm mount hole diameter, 159 mm mount centre to centre, 8 groove pulley, and clockwise rotation against the vehicle and the removed unit.
