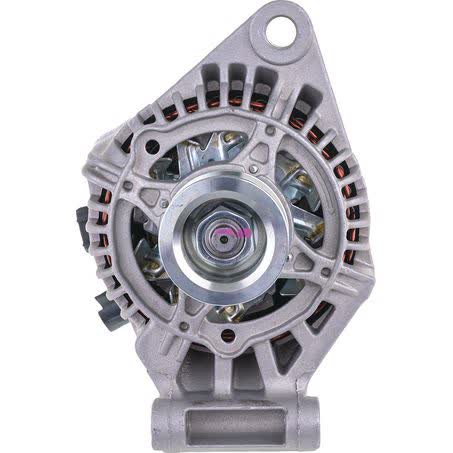

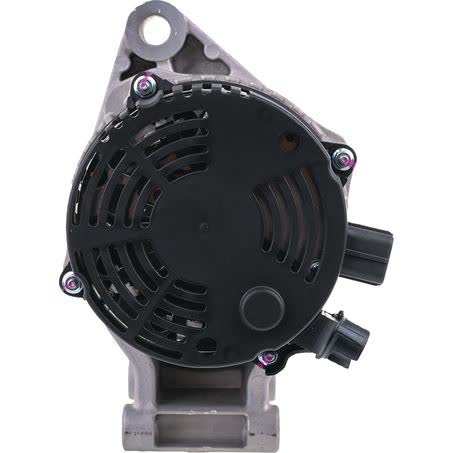

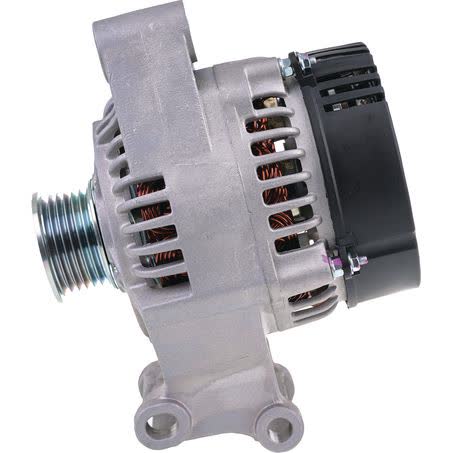

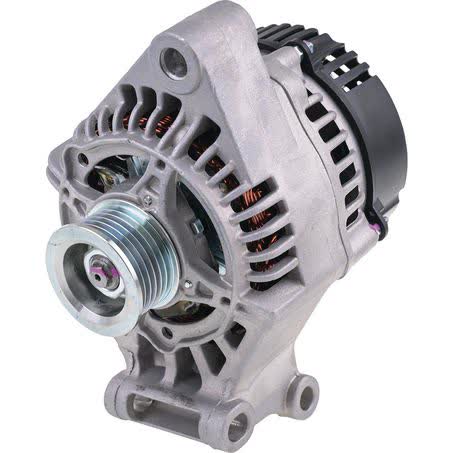

OEX Alternator 12V 105A Denso Style DXA4181

The OEX Alternator DXA4181 is a new 12V, 105A unit in Denso style, supplied as an alternator for rotating electrical applications. It uses a pad mount arrangement, 6 groove pulley section, and a 51mm inside mounting leg measurement, so those details should be checked carefully against the vehicle or the removed unit before purchase.

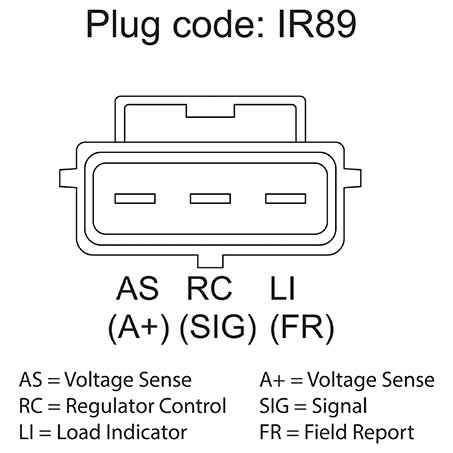

This alternator is listed with a 12mm adjusting hole diameter, 48mm pulley outside diameter, and IR89 pin code. Those are the kind of fitment points that matter when matching an alternator correctly, especially where the mount style and pulley setup need to line up with the original component.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories operating under ISO9001 certified processes. The unit carries a 3 year passenger / 1 year commercial warranty, which gives a clear usage-based warranty structure for buyers needing a replacement rotating electrical part.

Key Features

• New alternator, not remanufactured
• 12V, 105A output
• Denso style unit
• Pad mount alternator
• 6 groove pulley section
• 51mm inside mounting legs

Specifications

• Brand: OEX
• Part No.: DXA4181
• Product type: Alternator
• Voltage: 12V
• Power rating: 105A
• New / Reman.: New
• Suits unit make: Denso
• Alternator mount: Pad

Fitment guidance

• Explicit fitment support in the supplied data is limited.
• Ford Fiesta appears in the fitment preview, including model years 2004, 2005, 2006, 2007 and 2008.
• Ford is listed as a fitment make in the supplied data.
• The fitment preview does not provide engine size, chassis code, or full application detail.
• Confirm the removed alternator matches the part number, mount style, pulley section, and mounting measurements before ordering.

Application and Buying Notes

Before ordering, compare the OEX DXA4181 against the unit already fitted to the vehicle. The key matching points provided here are 12V, 105A, Denso style, pad mount, 6 groove pulley section, 51mm inside mounting legs, 12mm adjusting hole diameter, and IR89 pin code. If any of those differ from the original alternator, the part should be checked again before installation.

The pulley details are especially important because this unit has a 48mm pulley outside diameter and a 6 groove section. Alternators can look similar at a glance but still differ in mount geometry, pulley type, and connector style, so matching those details is the safest way to avoid a return or an incorrect fit.

This alternator is supplied new and weighs 4.92kg, so handling and comparison with the existing part can be done before the vehicle is stripped further. The warranty is listed as 3 years for passenger use and 1 year for commercial use, which is useful to note when the vehicle’s duty cycle is heavier or more frequent.

Where fitment data is only partial, the part number remains the most reliable reference. If the existing alternator has a different brand marking or a different housing layout, do not rely on appearance alone. Use the vehicle application details, the mount type, and the pin code together with DXA4181 to confirm the match.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4181 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 51mm, Power Rating (Amp) 105, Pulley Section 6 Groove, Voltage 12, New / Reman. New, Product Group 2 ALTERNATORS.

Additional published details for cross-checking include Part No. DXA4181, Brand OEX, Description OEX Alternator 12V 105A Denso Style, Adjusting Hole Diameter 12, Pin Code IR89, Pulley Outside Diameter 48mm, Suits Unit Make Denso, Alternator Mount Pad, Weight 4.92kg, Product Group 1 ROTATING ELECTRICAL.

OEX Alternator 12V 105A Denso Style. Part number DXA4181 should be checked first. Listed voltage is 12. Listed output rating is 105. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4181, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 105 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FIESTA, FORD FIESTA 2004, FORD FIESTA 2005, FORD FIESTA 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number DXA4181, the Denso style specification, and the measured mounting and pulley details before purchase. Vehicle listings in the supplied data are limited, so final compatibility should be verified against the existing unit and application details.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What is the part number?

The part number is DXA4181.

What voltage and output does it have?

It is a 12V alternator with a 105A power rating.

What style and mount type is listed?

It is described as Denso style with a pad alternator mount.

Does the supplied data include fitment for Ford Fiesta?

Yes, Ford Fiesta appears in the fitment preview, including model years 2004 through 2008. The supplied data does not provide engine or chassis details.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
