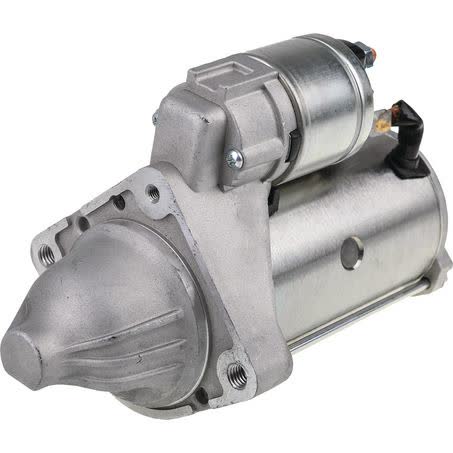

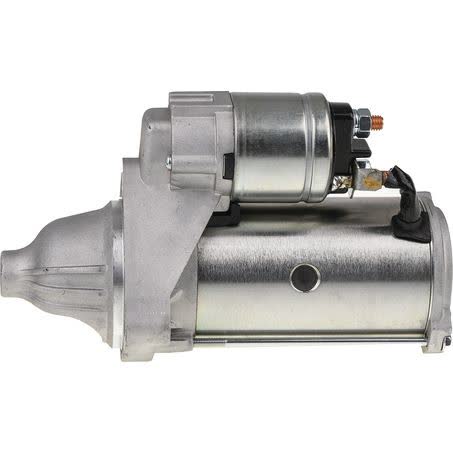

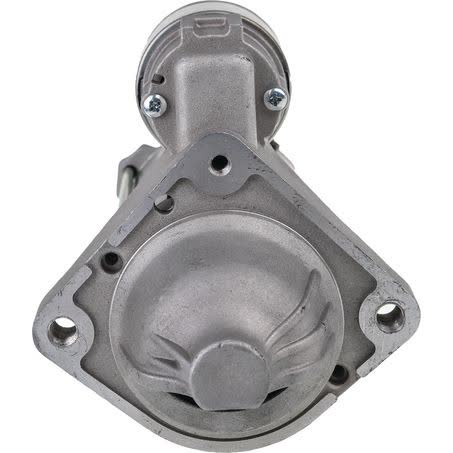

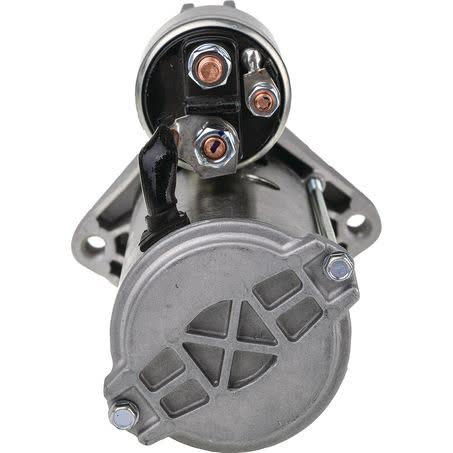

OEX Starter Motor 12V 10 Tooth CW Valeo Style VXS959

The OEX Starter Motor VXS959 is a new 12V starter motor with 10 teeth, clockwise rotation and a Valeo style layout. It is listed with a 3 hole starter mount, 74mm flange diameter, and mount centres of 105mm on A and 74mm on C, so those dimensions are the first points to check when matching it to an existing unit.

This unit suits Valeo applications and carries mount hole diameters of M10x1.5 and M6x1.0. The overall length is 221mm, the pinion diameter is 31mm, and the pinion at rest measures 20mm. Those dimensions matter when comparing against the old starter, especially where clearance and mounting pattern need to line up exactly.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The part is backed by a 3 year warranty for passenger use and a 1 year warranty for commercial use, and it is supplied as a new unit sold each under part number VXS959.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Valeo style
• Suits Valeo unit make
• New unit

Specifications

• Part number: VXS959
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 3 hole
• Flange diameter: 74mm

Fitment guidance

• BMW: 1, 1 2007, 1 2008, 1 2009, 1 2010, plus other listed applications

Application and Buying Notes

Check the part number VXS959 first, then compare the starter mount pattern, flange diameter, and hole sizes against the unit being replaced. The key matching points here are 12V, 10 teeth, clockwise rotation, a 3 hole mount, 74mm flange diameter, and mount hole sizes of M10x1.5 and M6x1.0.

The listed dimensions are important because starter motors can look similar while differing in mount centres, pinion size, or overall length. This unit measures 221mm overall, has a 31mm pinion diameter, and a 20mm pinion at rest, so those figures should be checked against the removed starter before ordering.

This starter is described as Valeo style and suited to Valeo unit make, so it is best treated as a like-for-like replacement where the application, mounting, and tooth count match. If the vehicle already has a Valeo-type starter, compare the old unit carefully rather than relying on appearance alone.

Warranty cover is stated as 3 years for passenger use and 1 year for commercial use. If the starter is going into a commercial vehicle or a vehicle used for work, confirm the warranty terms that apply to that use before purchase.

Weight is listed at 3.72kg, which can be a useful comparison point when checking whether the replacement unit matches the original unit being removed. When fitment is not already confirmed, the safest approach is to match the part number, mounting dimensions, rotation, voltage, and tooth count together.

OEX notes that its products are sourced from original equipment manufacturers and aftermarket suppliers, and made in ISO certified factories. That provides useful context, but the practical fit check still comes back to the numbers on the unit: VXS959, 12V, 10 teeth, clockwise rotation, and the specified mount centres and hole sizes.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS959 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Mount Centres C 74mm, Number of Teeth 10, Pinion at Rest 20mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS959, Brand OEX, Description OEX Starter Motor 12V 10Th CW Valeo Style, Flange Diameter 74mm, Mount Centres B 74mm, Mount Hole Diameter M10x1.5 / M6x1.0, Overall Length 221mm, Pinion Diameter 31mm.

OEX Starter Motor 12V 10Th CW Valeo Style. Part number VXS959 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS959, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BMW 1, BMW 1 2007, BMW 1 2008, BMW 1 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number VXS959 and the full application details, including 12V, 10 tooth CW specification, 3 hole mount, 74mm flange diameter, 105mm A mount centres, 74mm B/C mount centres, and M10x1.5 / M6x1.0 hole sizes before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS959.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 10 teeth.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW.

What type of mount does it have?

It uses a 3 hole starter mount, with mount centres of 105mm on A and 74mm on B and C.

What warranty is listed for this product?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
