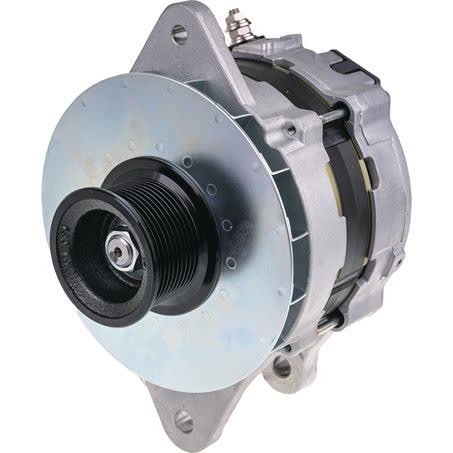

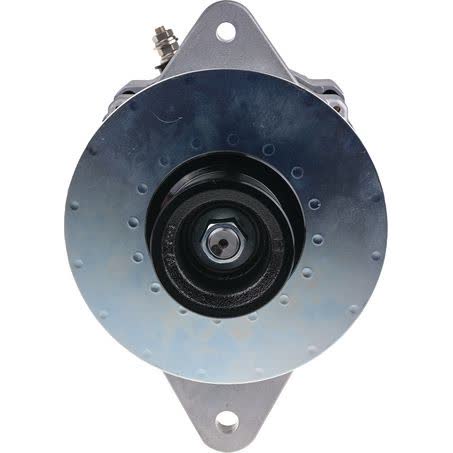

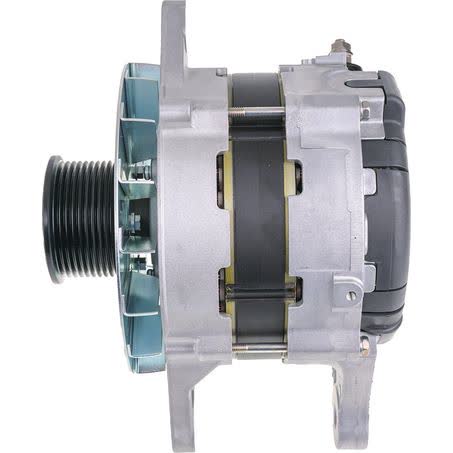

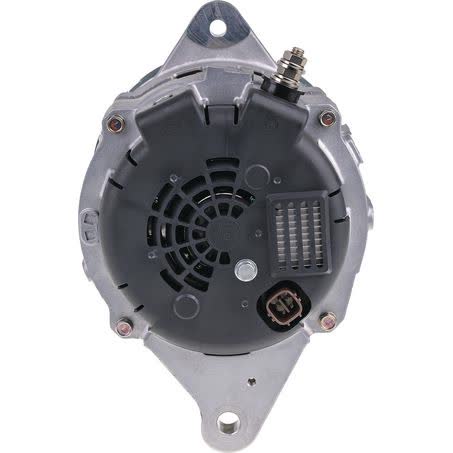

OEX Alternator 24V 100A Sawafuji SXA733

The OEX SXA733 is a new 24V alternator rated at 100A and listed for Sawafuji applications. It is a twin-leg mount unit with an internal regulator, and it uses a 10 groove pulley with a 70mm outside diameter. For installation planning, the mounting dimensions provided are 86mm inside mounting legs and 236mm mount centre to centre.

This alternator is identified with OEM number 27060-E0170 and weighs 13.16kg. It is sold as each unit and carries a one year warranty. Those details matter when matching the replacement unit, especially where the original alternator uses the same 24V charging system, twin-leg mounting arrangement, and pulley style.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories that are ISO9001 certified to support engineering, testing, and quality control procedures. That gives useful context for buyers who want a replacement alternator with clearly stated specifications rather than a vague universal listing.

Key Features

• 24V alternator with 100A power rating
• New unit, not remanufactured
• Twin-leg alternator mount
• Internal regulator
• 10 groove pulley
• 70mm pulley outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 24V
• Amperage: 100A
• Part number: SXA733
• OEM number: 27060-E0170
• Unit of measure: Each
• Condition: New

Application and Buying Notes

Before ordering, compare the part number SXA733 and OEM number 27060-E0170 with the alternator you are replacing. Those identifiers are the most reliable starting point, especially when the application is listed only as Sawafuji rather than a long vehicle fitment list.

Check the mounting pattern carefully. This alternator is a twin-leg mount with 86mm inside mounting legs and 236mm mount centre to centre, so the bracket spacing needs to line up with the vehicle or equipment installation. The adjusting hole diameter is 10mm and the pivot hole diameter is 14mm.

The charging system requirements also need to match. This unit is 24V and 100A, so it is intended for a 24-volt electrical system. It also uses an internal regulator, which should be checked against the original unit so the replacement matches the existing wiring and control setup.

Pulley details are just as important as electrical specs. The unit has a 10 groove pulley with a 70mm outside diameter, so belt type and groove count should be confirmed before purchase. A mismatch here can stop the alternator from aligning or driving correctly, even when the mounting points look close.

Weight is listed at 13.16kg, which can be a useful reference when comparing to the removed alternator. If the original unit is significantly different in mass, mounting style, or pulley configuration, it is worth rechecking the identification details before fitting.

OEX supplies this alternator as a new replacement unit with a one year warranty. That warranty does not replace the need to verify fitment first, so the safest approach is to check the part number, voltage, mount type, pulley section, and dimensions against the existing alternator or the equipment specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXA733 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 86mm, Power Rating (Amp) 100, Pulley Section 10 Groove, Suits Unit Make Sawafuji, Alternator Mount Twin Leg, New / Reman. New, Weight 13.16kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. SXA733, Brand OEX, Description OEX Alternator 24V 100A Sawafuji, Adjusting Hole Diameter 10, Pivot Hole Diameter 14, Pulley Outside Diameter 70mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 236mm.

OEX Alternator 24V 100A Sawafuji. Part number SXA733 should be checked first. Listed voltage is 24. Listed output rating is 100. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number SXA733, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 100 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Please confirm fitment by matching SXA733, OEM number 27060-E0170, 24V, 100A, twin-leg mounting, and the listed pulley and hole dimensions with your existing alternator or equipment specification before purchase.

FAQ

Is this alternator new or remanufactured?

It is listed as a new alternator.

What voltage and output does it have?

It is a 24V alternator with a 100A power rating.

What is the part number?

The OEX part number is SXA733.

What OEM number is listed?

The OEM number listed is 27060-E0170.

What mounting style does it use?

It is a twin-leg alternator mount with 86mm inside mounting legs and 236mm mount centre to centre.

What pulley details should be checked before buying?

It uses a 10 groove pulley with a 70mm outside diameter, so those details should be matched to the original unit before ordering.
