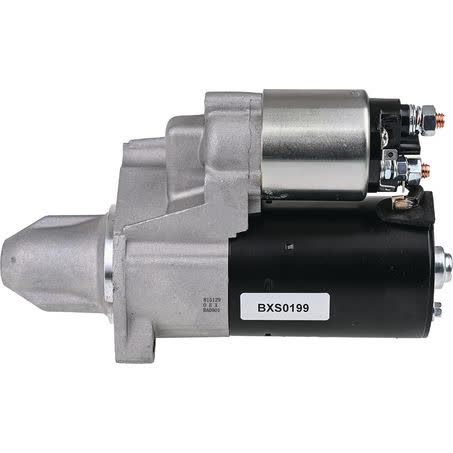

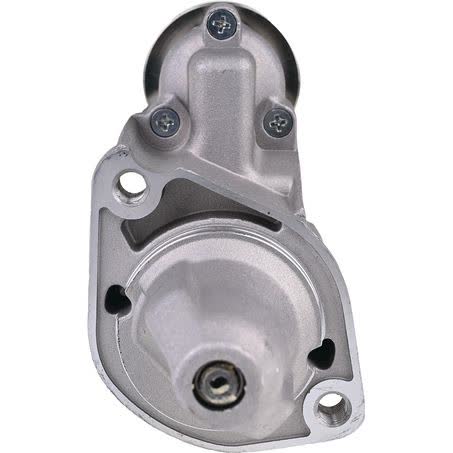

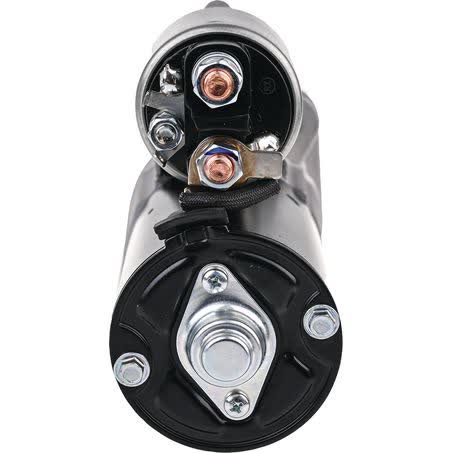

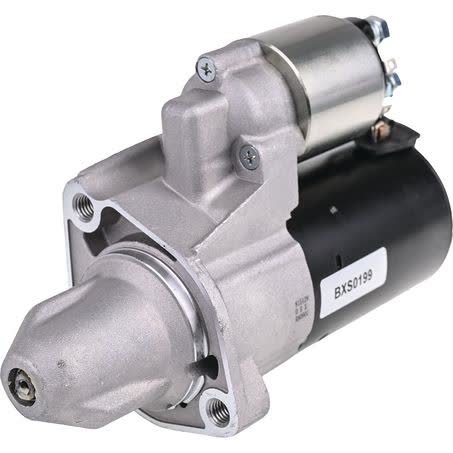

OEX Starter Motor 12V 10T CW Bosch Style BXS0199

The OEX Starter Motor BXS0199 is a new 12V starter motor with 10 teeth, clockwise rotation, and a Bosch-style fitment profile. It is listed with a 1.1kW power rating, a 2-hole starter mount, and an overall length of 222mm, so those dimensions are important to confirm against the original unit before ordering.

This unit carries a flange diameter of 60mm, mount centres A of 89mm, a mount hole diameter of M10x1.5, and a pinion diameter of 26mm. The pinion at rest is 26mm, which is a useful check when comparing the starter to the removed part.

OEX lists this starter under part number BXS0199 and as a Bosch suit unit make. It is a new rotating electrical component sold each, with a stated weight of 2.94kg and warranty cover of 3yr Passenger and 1yr Commercial.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• Bosch-style unit
• New part, not remanufactured
• 2-hole starter mount

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part number: BXS0199
• Voltage: 12V
• Power rating: 1.1kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 2 hole

Fitment guidance

• Bosch-style starter motor application
• Fitment information supplied for Mercedes-Benz passenger and light commercial applications
• Mercedes-Benz fitment family referenced includes C-Class, CLK, CLS, E-Class, G-Class, GL-Class, M-Class, R-Class, S-Class, SL, SLK, Viano, and Vito / Mixto
• Sample applications supplied include Mercedes-Benz C-Class 2005, 2006, and 2007

Application and Buying Notes

Before ordering, compare the part number BXS0199, the 12V rating, the 10-tooth pinion, and the clockwise rotation with the starter already fitted to the vehicle. The 2-hole mount, 89mm mount centres, 60mm flange diameter, and M10x1.5 mount hole size are all practical checks that help avoid a mismatch.

This starter is listed as Bosch style and suited to Bosch unit make, so matching the original starter design matters as much as matching the vehicle model. The supplied Mercedes-Benz applications cover several model families, but the exact engine and build details still need to be checked against the removed unit and the vehicle identification details.

The listed 1.1kW power rating, 222mm overall length, and 26mm pinion diameter are key physical and electrical identifiers. If any of these differ from the original starter, stop and re-check the application before fitting, as starter motors need to match mounting and engagement dimensions closely.

Warranty cover is stated as 3yr Passenger and 1yr Commercial, which is useful context for buyers using the vehicle in different conditions. Keep the old part for comparison until the new unit has been checked against the mounting pattern, pinion count, and rotation direction on the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0199 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 89mm, Number of Teeth 10, Pinion at Rest 26mm, Power Rating 1.1kW, Suits Unit Make Bosch, New / Reman. New, Weight 2.94kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXS0199, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style, Flange Diameter 60mm, Mount Hole Diameter M10x1.5, Overall Length 222mm, Pinion Diameter 26mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 10Th CW Bosch Style. Part number BXS0199 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0199, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006, MERCEDES-BENZ C-CLASS 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number BXS0199, 12V specification, 10-tooth CW configuration, Bosch-style mounting details, and the measured dimensions before purchase. The supplied fitment references Mercedes-Benz application families, but the final check should always be against the vehicle details and the removed starter motor.

FAQ

What type of part is BXS0199?

BXS0199 is an OEX starter motor. It is listed as a new 12V unit with 10 teeth, clockwise rotation, and a Bosch-style application. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.

What are the key dimensions I should check?

The important dimensions listed are 222mm overall length, 60mm flange diameter, 89mm mount centres A, M10x1.5 mount hole diameter, and a 26mm pinion diameter with 26mm pinion at rest. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.

What vehicles are referenced for fitment?

Fitment references Mercedes-Benz application families including C-Class, CLK, CLS, E-Class, G-Class, GL-Class, M-Class, R-Class, S-Class, SL, SLK, Viano, and Vito / Mixto. Sample applications include Mercedes-Benz C-Class 2005, 2006, and 2007. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3yr Passenger and 1yr Commercial. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.

What should I confirm before ordering?

Confirm the part number BXS0199, 12V voltage, 10-tooth pinion, clockwise rotation, Bosch-style fitment, and the mounting dimensions against the vehicle and the removed starter motor before buying. For this listing, part number BXS0199 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ C-CLASS, MERCEDES-BENZ C-CLASS 2005, MERCEDES-BENZ C-CLASS 2006. These details should still be checked against the original unit before ordering.
