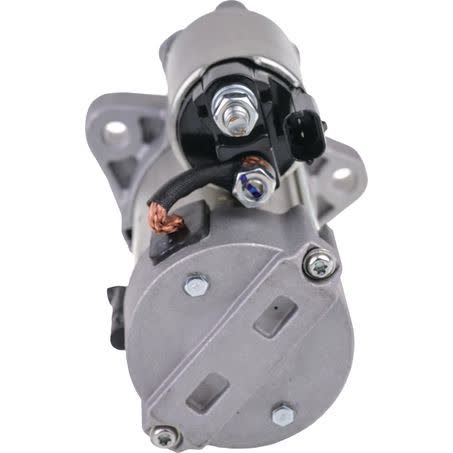

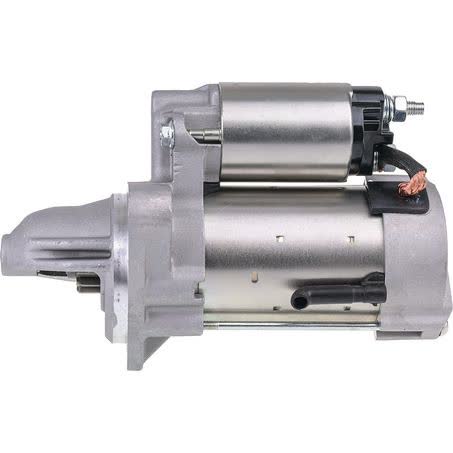

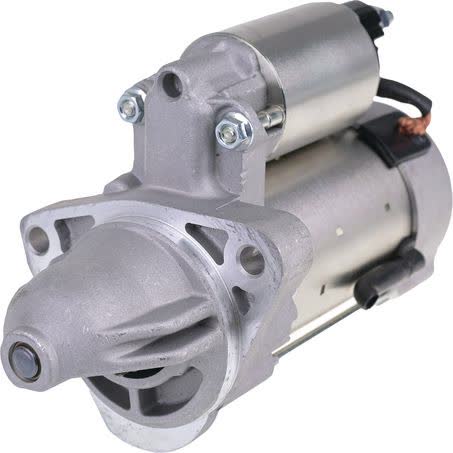

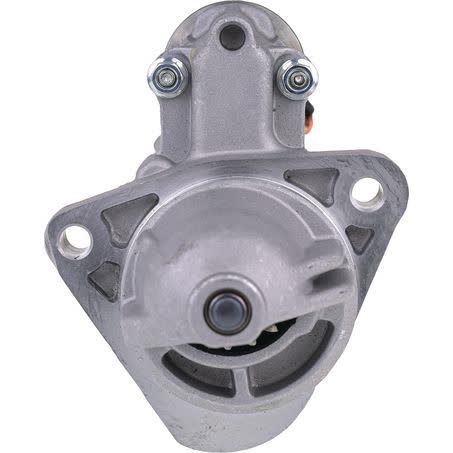

OEX Starter Motor 12V 15 Tooth CW Denso Style DXS4069

The OEX Starter Motor DXS4069 is a new 12V unit with 15 teeth, clockwise rotation and a 1.7kW power rating. It is listed as a Denso style starter motor, with a 2-hole starter mount, 95mm mount centres and a 75mm flange diameter.

Key dimensions include an overall length of 223mm, a 40mm pinion diameter and a 25mm pinion at rest. The mount hole diameter is 10mm and the unit weighs 3.58kg, which are practical checks when matching a replacement starter to the vehicle application.

OEX states this product is sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. The warranty listed is 3 years for passenger use and 1 year for commercial use, which gives useful context when choosing a replacement starter for the correct application.

Key Features

• 12V starter motor
• 15 tooth pinion
• Clockwise rotation
• 1.7kW power rating
• Denso style unit
• New starter motor

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: DXS4069
• Voltage: 12V
• Rotation: CW
• Number of teeth: 15
• Power rating: 1.7kW
• Suits unit make: Denso

Fitment information

• Listed fitment guidance includes Holden Commodore applications.
• Fitment preview references Holden Commodore for model years 2017, 2018, 2019 and 2020.
• Compatibility should still be confirmed against the vehicle’s existing starter and mounting details before purchase.

Application and Buying Notes

This starter motor is a 12V, clockwise-rotation unit with 15 teeth and a 1.7kW rating, so matching the electrical setup and rotation direction matters as much as the physical dimensions. The DXS4069 also uses a 2-hole mount with 95mm mount centres, a 75mm flange diameter and 10mm mount holes, which are the first measurements to compare against the removed starter.

Because the unit is described as Denso style and suits Denso applications, the safest approach is to confirm the vehicle’s existing starter style and the part number wherever possible. The listed overall length of 223mm, pinion diameter of 40mm and pinion at rest of 25mm are useful cross-checks if the original unit is available for comparison.

The supplied warranty is 3 years for passenger use and 1 year for commercial use. That is helpful context, but it does not replace a fitment check. A starter motor can look similar while still differing in mount pattern, tooth count, pinion position or rotation, so verifying the part number DXS4069 against the vehicle application remains the best safeguard.

For Holden Commodore applications shown in the fitment preview, confirm the exact vehicle details before ordering. Starter fitment can depend on engine and mounting configuration, and the safest purchase decision is always based on the existing unit, the mounting dimensions and the confirmed application rather than appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4069 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 95mm, Number of Teeth 15, Pinion at Rest 25mm, Power Rating 1.7kW, Suits Unit Make Denso, New / Reman. New, Weight 3.58kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4069, Brand OEX, Description OEX Starter Motor 12V 15Th CW Denso Style, Flange Diameter 75mm, Mount Hole Diameter 10, Overall Length 223mm, Pinion Diameter 40mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 15Th CW Denso Style. Part number DXS4069 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4069, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018, HOLDEN COMMODORE 2019. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number DXS4069, 12V system voltage, 15-tooth clockwise rotation, Denso style application, and the 2-hole mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is DXS4069. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with clockwise rotation. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 15 teeth. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It uses a 2-hole starter mount with 95mm mount centres, a 75mm flange diameter and 10mm mount holes. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment preview?

The fitment preview references Holden Commodore applications, including model years 2017, 2018, 2019 and 2020. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS4069 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COMMODORE, HOLDEN COMMODORE 2017, HOLDEN COMMODORE 2018. These details should still be checked against the original unit before ordering.
