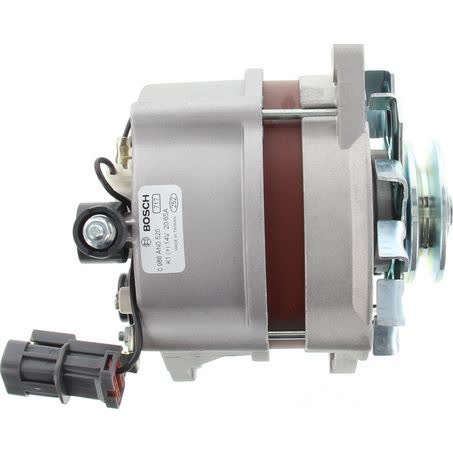

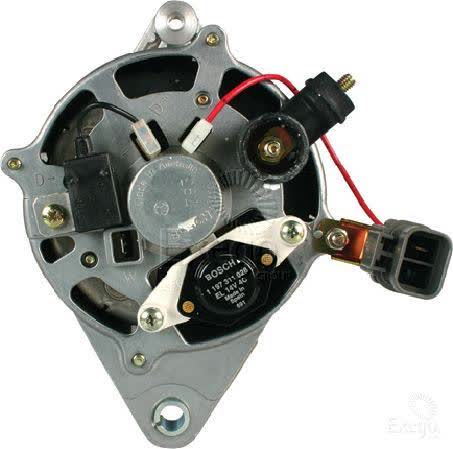

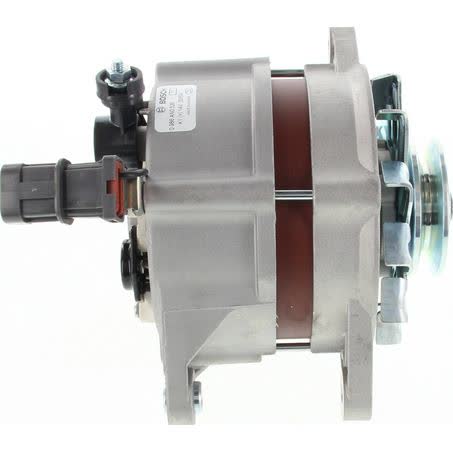

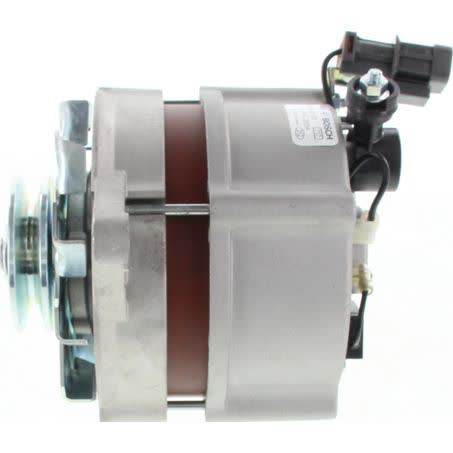

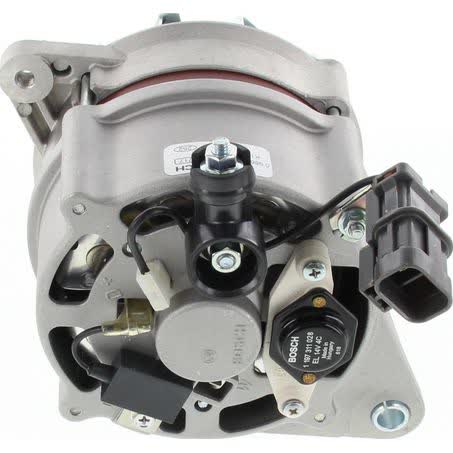

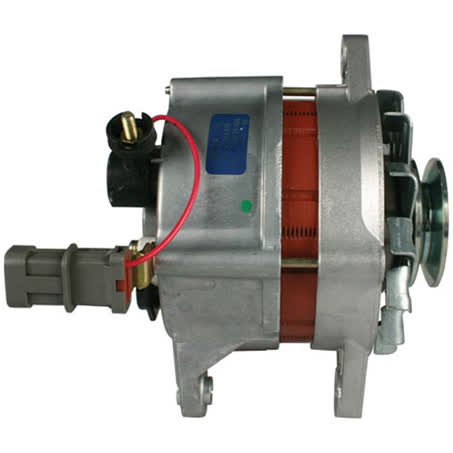

Bosch Alternator 12V 65A BXF1230A

This Bosch alternator is a 12V, 65A unit with part number BXF1230A, supplied new as an each item and fitted with an internal regulator. It is listed with a twin leg alternator mount, 68mm inside mounting legs, a 175mm mount centre-to-centre measurement, and a 72mm pulley outside diameter, so the physical mounting points matter as much as the electrical rating.

The unit is described as Bosch-made and suited to Bosch applications, with an A section pulley and an M10 pivot hole plus an M8 x 1.25 adjusting hole. Those dimensions are useful when checking whether the alternator will line up correctly with the existing brackets, belt arrangement, and adjustment hardware on the vehicle.

As a rotating electrical component, this alternator is specified at 65 amps and 12 volts, with a recorded weight of 9.21kg. The product also carries a one year warranty, which gives a clear service period for normal retail supply, but final suitability still depends on matching the part number and the application details before purchase.

Key Features

• Bosch 12V alternator rated at 65A
• Part number: BXF1230A
• Internal regulator type
• New unit, supplied each
• Twin leg alternator mount
• A section pulley

Specifications

• Voltage: 12V
• Power rating: 65A
• Part number: BXF1230A
• Brand: Bosch
• Type: Alternator
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg

Fitment and application guidance

• Fitment data includes Ford Laser and Ford Telstar applications.
• Fitment data includes Mazda 323 applications.
• Fitment preview covers Ford Laser model years 1985 through 1994.
• Fitment preview covers Mazda 323 model years 1980 through 1990.
• Other listed makes and model groups in the fitment data include Mazda 323 Astina and Mazda 323 Protegé.
• Use the part number BXF1230A and the mounting measurements to confirm application before ordering.

Application and Buying Notes

The most important checks on this alternator are the part number BXF1230A, the 12V system voltage, the 65A output rating, and the mounting measurements of 68mm inside mounting legs and 175mm centre-to-centre. If any of those differ from the unit already fitted to the vehicle, the alternator may not line up correctly or may not suit the charging system specification.

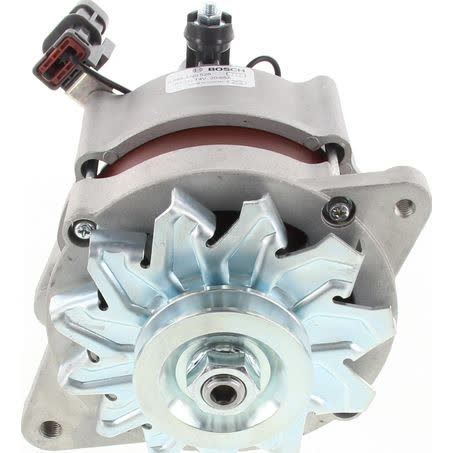

The pulley details also matter. This unit has a 72mm outside diameter pulley with an A section belt profile, so the belt type and pulley alignment should be checked against the existing setup. The pivot hole is M10 and the adjusting hole is M8 x 1.25, which are practical verification points when comparing brackets and fasteners.

Because this alternator uses an internal regulator, it is important to confirm the vehicle’s charging system arrangement before buying. A regulated alternator is not just a physical match; it also needs to suit the electrical configuration already in the vehicle. The listed weight of 9.21kg can also be a useful comparison point when checking against the removed unit.

If you are working from a worn or missing original alternator, compare as many details as possible: the Bosch branding, the BXF1230A part number, the twin leg mount, the pulley size, and the 12V 65A specification. These details are the safest way to narrow the match without relying on appearance alone.

The fitment list provided for this alternator covers Ford Laser, Ford Telstar, and Mazda 323 applications, with the preview spanning Ford Laser 1985 to 1994 and Mazda 323 1980 to 1990. Even where a model appears in the fitment data, it is still wise to confirm the exact application against the part number and the physical dimensions already listed here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXF1230A helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 68mm, Pivot Hole Diameter M10, Pulley Outside Diameter 72mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 175mm, Weight 9.21kg.

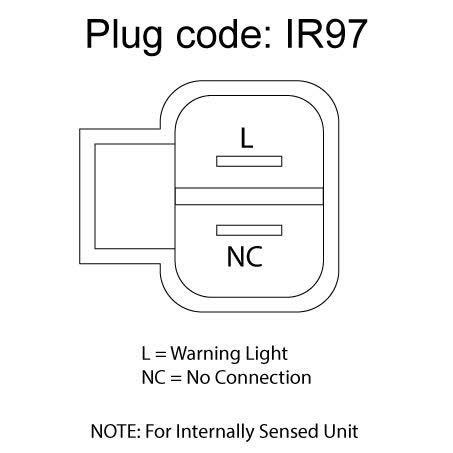

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXF1230A, Brand BOSCH, Description Bosch Alternator 12V 65A, Adjusting Hole Diameter M8 x 1.25, Pin Code IR97, Power Rating (Amp) 65, Pulley Section A, Suits Unit Make Bosch, Alternator Mount Twin Leg.

Bosch Alternator 12V 65A. Part number BXF1230A should be checked first. Listed voltage is 12. Listed output rating is 65. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXF1230A, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number BXF1230A, the 12V 65A specification, the internal regulator type, the twin leg mount, and the listed measurements against the vehicle or removed alternator before ordering.

FAQ

What is the part number for this alternator?

The part number listed is BXF1230A.

What voltage and output does this alternator have?

It is a 12V alternator rated at 65A.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

It uses an internal regulator.

What mounting details are listed?

It has a twin leg alternator mount, 68mm inside mounting legs, a 175mm mount centre-to-centre measurement, an M10 pivot hole, and an M8 x 1.25 adjusting hole.

Which vehicles are shown in the fitment data?

The fitment data includes Ford Laser, Ford Telstar, and Mazda 323 applications, with previewed model-year coverage for Ford Laser 1985 to 1994 and Mazda 323 1980 to 1990.
