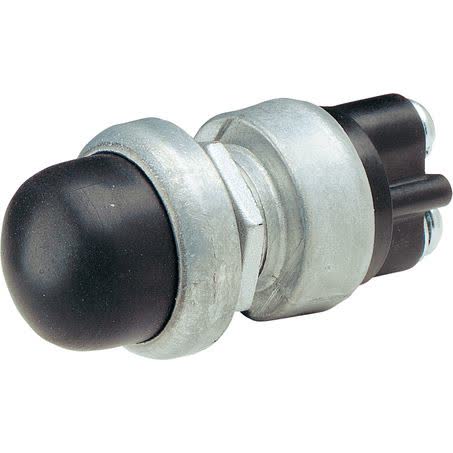

Narva Heavy Duty Push Button Switch Momentary On Spst 60A 12V Part No. 60033BL

The Narva Heavy Duty Push Button Switch is a momentary on, SPST switch rated at 60A at 12V and 30A at 24V, with a 16mm mounting opening and 12mm mount length. It is a practical choice where a robust manual control is needed and space for the switch body and panel cut-out needs to be confirmed before installation.

This switch uses a die cast housing, silver contacts, and brass screw terminals, which are all relevant details when selecting a heavy duty control for a vehicle electrical setup. It has 2 terminals, 1 pole, 2 positions, and is non illuminated, so it suits straightforward switching applications where indicator lighting is not required.

Identified as Narva part no. 60033BL, this push button switch is supplied as a single unit and carries a one year warranty. The switch action is listed as Off - Mom On - SPST, so it is important to match the intended use to a momentary-on function rather than a maintained on/off style switch.

Key Features

• Momentary on push button switch
• SPST contact arrangement
• 60A at 12V, 30A at 24V rating
• Die cast housing
• Silver contacts
• Brass screw terminals

Specifications

• Brand: Narva
• Part No.: 60033BL
• Product type: Switch
• Switch action: Off - Mom On - SPST
• Switch type: Push
• Voltage: 12V
• Power rating: 60A
• Number of terminals: 2

Application and Buying Notes

Before buying, confirm that your panel has a 16mm mounting opening and enough depth for the 12mm mount length. Those two measurements are the main installation checkpoints provided for this Narva 60033BL switch, and they need to suit the space available in the dashboard, console, switch panel, or custom mounting location.

The electrical rating matters as much as the physical size. This switch is rated at 60A at 12V and 30A at 24V, so it should be selected only where a momentary-on SPST function matches the circuit design and the load stays within the stated ratings. If your application needs a latching switch, an illuminated switch, or more than 2 terminals, this is not the right style.

The brass screw terminals and silver contacts are practical details for anyone wiring a heavy duty switch into an automotive or marine-style electrical setup. They are not a substitute for checking cable size, terminal compatibility, or circuit protection, so the rest of the installation still needs to be matched correctly to the vehicle system and the device being controlled.

Because no vehicle-specific fitment is supplied for this part, the safest approach is to verify the part number 60033BL against your existing switch, mounting dimensions, and required switch action before ordering. If you are replacing an existing control, compare the old unit’s panel cut-out, terminal layout, and momentary function carefully rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 60033BL helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Number of Terminals 2, Switch Action Off - Mom On - SPST, Lamp Colour/s Not Applicable, Mount Length 12mm, Number of Positions 2, Switch Illumination Non Illuminated.

Additional published details for cross-checking include Product Group 2 FUSES BREAKERS RELAYS SWITCHES, Part No. 60033BL, Brand NARVA, Description Narva Heavy Duty Push Button Switch Momentary On SPST (Contacts Rated 60A @ 12V), Number of Speeds 1, Power Rating (Amp) 60, Voltage 12, Mount Diameter 16mm, Number of Poles 1, Switch Type Push.

Narva Heavy Duty Push Button Switch Momentary On SPST (Contacts Rated 60A @ 12V). Part number 60033BL should be checked first. Listed voltage is 12. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 60033BL, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment by matching part number 60033BL, the 16mm mounting opening, 12mm mount length, and the required Off - Mom On - SPST function before purchase.

FAQ

What type of switch is the Narva 60033BL?

It is a heavy duty push button switch with a momentary on, SPST contact arrangement. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.

What are the electrical ratings for this switch?

The listed rating is 60A at 12V and 30A at 24V. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.

Is this switch illuminated?

No. The switch is listed as non illuminated, and lamp colour is not applicable. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.

What mounting size does it require?

It requires a 16mm mounting opening and has a 12mm mount length. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.

How many terminals does it have?

It has 2 terminals. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.

Is there a warranty listed?

Yes. The listed warranty is one year. For this listing, part number 60033BL is the main reference point. Listed voltage is 12. Listed output rating is 60. These details should still be checked against the original unit before ordering.
