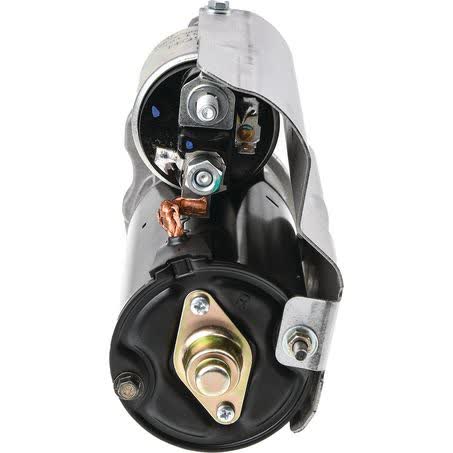

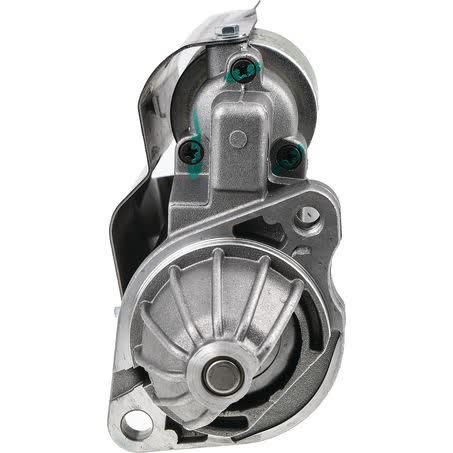

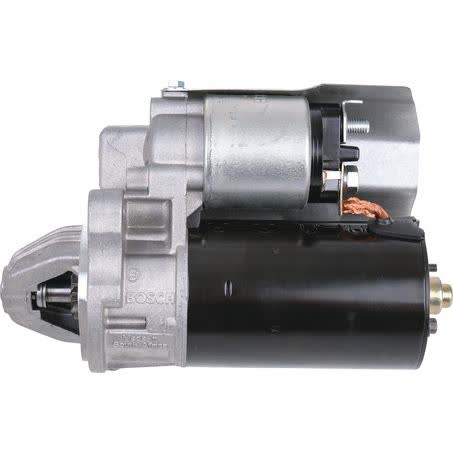

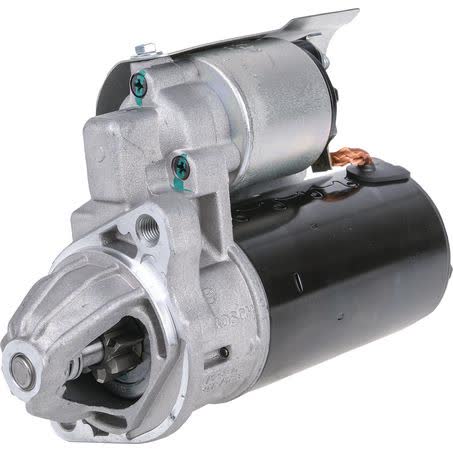

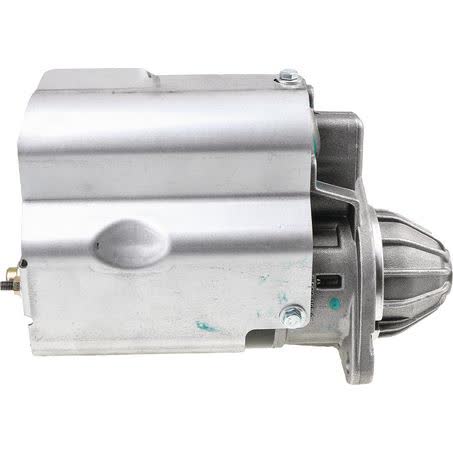

Bosch Starter Motor 12V 8 Tooth CW BXM135

The Bosch Starter Motor BXM135 is a 12V starter motor with clockwise rotation, 8 teeth, and a 1.4kW power rating. It is listed as a new unit and uses a 2 hole starter mount with M10x1.25 / 10 mount holes, which are important points to confirm before ordering.

This starter motor has a 71mm flange diameter, 98mm mount centres, a 224mm overall length, and a 28mm pinion diameter. The pinion at rest measures 10mm, and the unit is described as dry clutch compatible, so matching the physical layout is just as important as matching the electrical rating.

It is identified for Mitsubishi Magna TE - TW and Verada KE - KL applications with 6G72 and 6G74 engines. The product is supplied as a Bosch unit, with part number BXM135 and a one year warranty.

A reduction drive design is listed for steadier cranking, and the unit is described as corrosion resistant for harsh conditions. Those are useful details when comparing like-for-like starters, especially where the original unit needs to match both fitment and output.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 8 tooth pinion
• 1.4kW power rating
• New unit
• 2 hole starter mount

Specifications

• Voltage: 12V
• Type: Starter motor
• Power rating: 1.4kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole
• Mount centres A: 98mm
• Flange diameter: 71mm

Confirmed application

• Mitsubishi Magna TE - TW with 6G72 engine
• Mitsubishi Magna TE - TW with 6G74 engine
• Mitsubishi Verada KE - KL with 6G72 engine
• Mitsubishi Verada KE - KL with 6G74 engine

Application and Buying Notes

Before ordering, compare the Bosch BXM135 against the removed starter using the 12V rating, 8 tooth pinion, CW rotation, and 2 hole mount type. The listed mount centres are 98mm and the flange diameter is 71mm, so those dimensions should be checked against the existing unit or the vehicle’s parts details.

This starter is identified for Mitsubishi Magna TE - TW and Verada KE - KL vehicles with 6G72 and 6G74 engines. That makes the engine code a key checkpoint, because starter fitment can vary between closely related models even when the vehicles appear similar.

The pinion at rest is 10mm and the pinion diameter is 28mm, which are important if the old unit has wear, damage, or a non-standard replacement fitted previously. Matching the mounting pattern and pinion layout reduces the risk of ordering the wrong part.

The unit is a new Bosch starter motor with a 1.4kW power rating and one year warranty. If you are replacing a starter because of slow cranking or intermittent engagement, it is still worth confirming the battery, cables, and terminals are in good condition, as starter symptoms can be caused by more than one fault.

The listed dry clutch compatibility, overall length of 224mm, and mount hole specification of M10x1.25 / 10 are all useful physical references when comparing parts. These details matter most when the original starter has no visible label, or when a previous repair has changed the part already fitted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXM135 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 98mm, Number of Teeth 8, Pinion at Rest 10mm, Power Rating 1.4kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXM135, Brand BOSCH, Description Bosch Starter Motor 12V 8Th CW, Flange Diameter 71mm, Mount Hole Diameter M10x1.25 / 10, Overall Length 224mm, Pinion Diameter 28mm, Rotation CW, Voltage 12.

Bosch Starter Motor 12V 8Th CW. Part number BXM135 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXM135, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm fitment by matching part number BXM135, 12V CW rotation, 8 tooth pinion, 2 hole mount pattern, and the listed application to Mitsubishi Magna TE - TW or Verada KE - KL with 6G72 or 6G74 engine details before purchase.

FAQ

What vehicles does this starter motor suit?

It is listed for Mitsubishi Magna TE - TW and Mitsubishi Verada KE - KL applications with 6G72 and 6G74 engines.

What is the part number?

The listed part number is BXM135.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What are the key electrical specifications?

The starter motor is 12V with a 1.4kW power rating and clockwise rotation.

How many teeth does the pinion have?

The pinion has 8 teeth.

What should I check before ordering?

Check the part number BXM135, 12V rating, 8 tooth pinion, clockwise rotation, 2 hole mount type, 98mm mount centres, and the vehicle application details for the Mitsubishi Magna TE - TW or Verada KE - KL with 6G72 or 6G74 engine.
